Attach the processing unit and battery pack

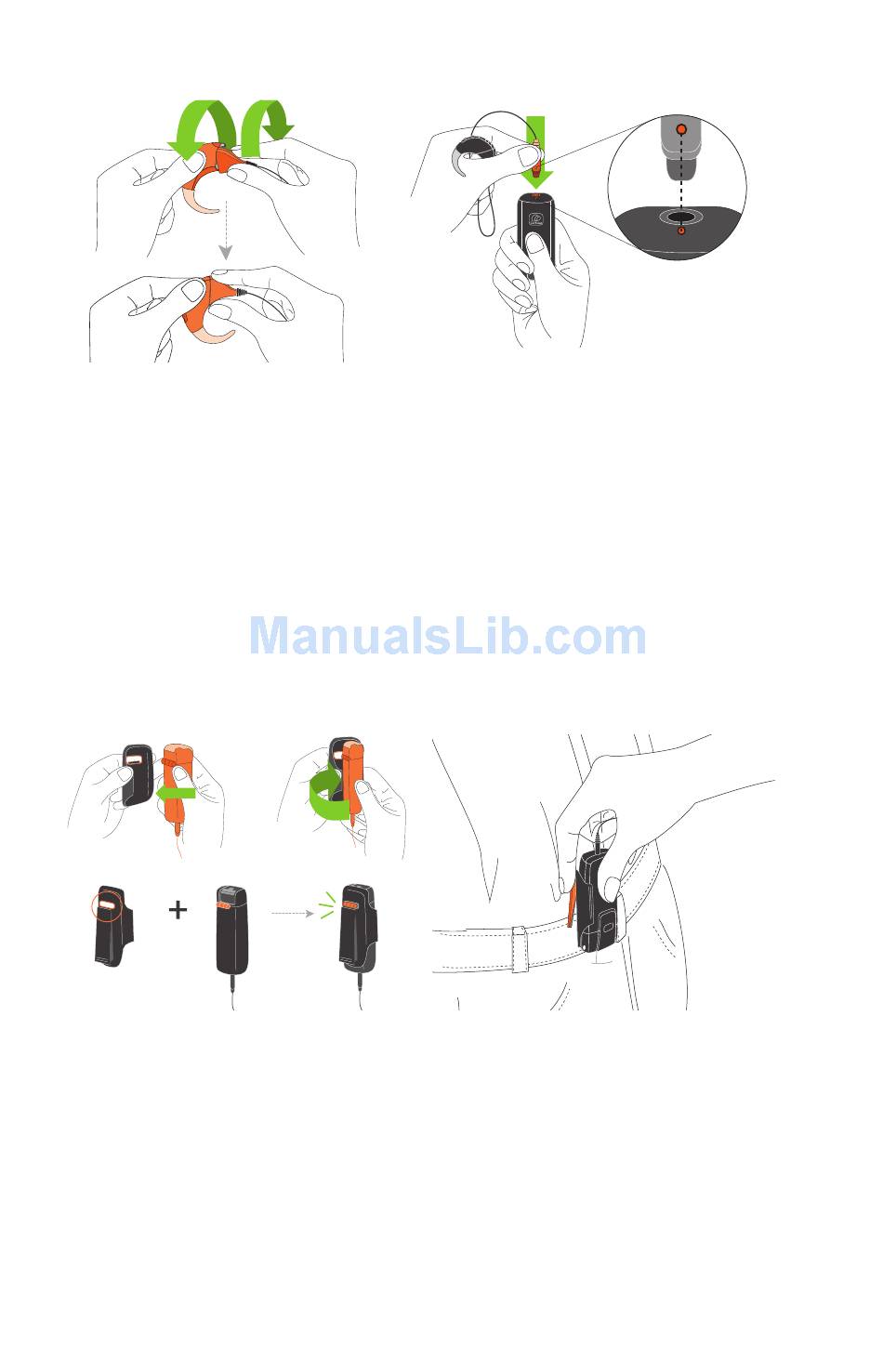

1. Hold the processing unit
and the upper end of the
battery pack cable at an
angle and twist together
as shown.
Tip: You can lock the battery pack cable by pushing the lock below the accessory
socket to the far left position. To unlock, push the lock to the far right position.
4. Insert the battery pack into
the Cochlear
CP802 Battery Pack Clip, at
an angle.
5. Line up the hinge on the
battery pack with the slot
on the clip and twist gently
until the clip clicks into
place.
10 - CP802 Sound Processor User Guide
Nucleus
™ ®
2. Line up the Cochlear logo and
dot marks on the lower end of
the battery pack cable and on
the battery pack.
3. Connect the plug on the
battery pack cable to the
socket on the battery pack.
6. Clip the battery pack to your
clothes.
© Cochlear Limited 2012
