Application guidelines

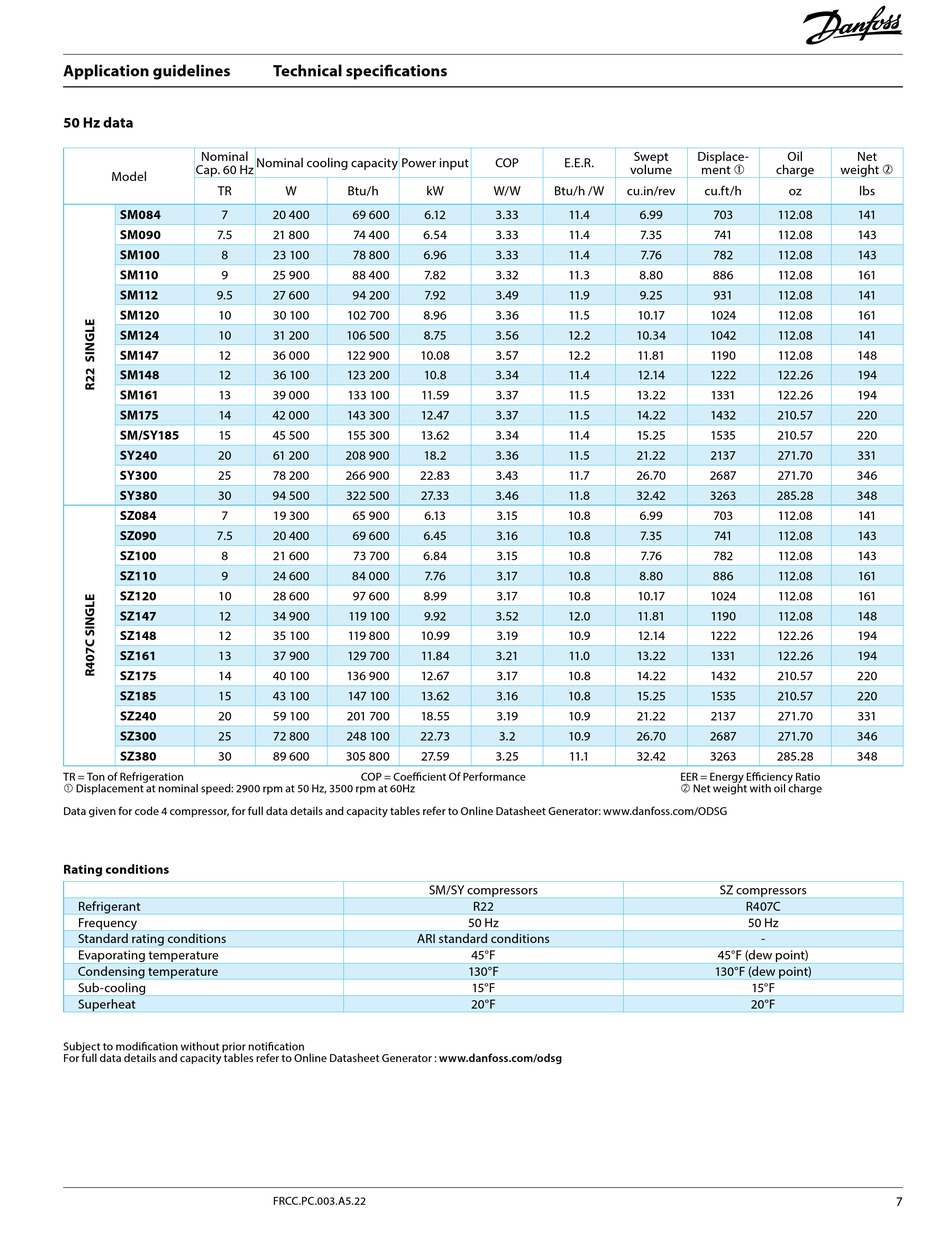

50 Hz data

Nominal
Cap. 60 Hz Nominal cooling capacity Power input
Model
TR
SM084 7
SM090 7.5
SM100 8
SM110
9
SM112
9.5
SM120
10
SM124 10
SM147 12
SM148 12
SM161 13
SM175
14
SM/SY185
15
SY240
20
SY300
25
SY380
30
SZ084 7
SZ090 7.5
SZ100 8
SZ110
9
SZ120
10
SZ147
12
SZ148
12
SZ161 13
SZ175 14
SZ185 15
SZ240 20
SZ300
25
SZ380
30
TR = Ton of Refrigeration
 Displacement at nominal speed: 2900 rpm at 50 Hz, 3500 rpm at 60Hz
Data given for code 4 compressor, for full data details and capacity tables refer to Online Datasheet Generator: www.danfoss.com/ODSG
Rating conditions
Refrigerant
Frequency
Standard rating conditions
Evaporating temperature
Condensing temperature
Sub-cooling
Superheat
Subject to modification without prior notification
For full data details and capacity tables refer to Online Datasheet Generator : www.danfoss.com/odsg

Technical specifications

W Btu/h kW
20 400 69 600 6.12
21 800 74 400 6.54
23 100 78 800 6.96
25 900 88 400 7.82
27 600 94 200 7.92
30 100 102 700 8.96
31 200 106 500 8.75
36 000 122 900 10.08
36 100 123 200 10.8
39 000 133 100 11.59
42 000 143 300 12.47
45 500 155 300 13.62
61 200 208 900 18.2
78 200 266 900 22.83
94 500 322 500 27.33
19 300 65 900 6.13
20 400 69 600 6.45
21 600 73 700 6.84
24 600 84 000 7.76
28 600 97 600 8.99
34 900 119 100 9.92
35 100 119 800 10.99
37 900 129 700 11.84
40 100 136 900 12.67
43 100 147 100 13.62
59 100 201 700 18.55
72 800 248 100 22.73
89 600 305 800 27.59
COP = Coefficient Of Performance
SM/SY compressors
ARI standard conditions
FRCC.PC.003.A5.22
Swept
COP E.E.R.
volume
W/W Btu/h /W cu.in/rev
3.33 11.4 6.99
3.33 11.4 7.35
3.33 11.4 7.76
3.32 11.3 8.80
3.49 11.9 9.25
3.36 11.5 10.17
3.56 12.2 10.34
3.57 12.2 11.81
3.34 11.4 12.14
3.37 11.5 13.22
3.37 11.5 14.22
3.34 11.4 15.25
3.36 11.5 21.22
3.43 11.7 26.70
3.46 11.8 32.42
3.15 10.8 6.99
3.16 10.8 7.35
3.15 10.8 7.76
3.17 10.8 8.80
3.17 10.8 10.17
3.52 12.0 11.81
3.19 10.9 12.14
3.21 11.0 13.22
3.17 10.8 14.22
3.16 10.8 15.25
3.19 10.9 21.22
3.2 10.9 26.70
3.25 11.1 32.42
R22
50 Hz
45°F
130°F
15°F
20°F
Displace- Oil Net
ment  charge weight 
cu.ft/h oz
703 112.08 141
741 112.08 143
782 112.08 143
886 112.08 161
931 112.08 141
1024 112.08 161
1042 112.08 141
1190 112.08 148
1222 122.26 194
1331 122.26 194
1432 210.57 220
1535 210.57 220
2137 271.70 331
2687 271.70 346
3263 285.28 348
703 112.08 141
741 112.08 143
782 112.08 143
886 112.08 161
1024 112.08 161
1190 112.08 148
1222 122.26 194
1331 122.26 194
1432 210.57 220
1535 210.57 220
2137 271.70 331
2687 271.70 346
3263 285.28 348
EER = Energy Efficiency Ratio
 Net weight with oil charge
SZ compressors
R407C
50 Hz
-
45°F (dew point)
130°F (dew point)
15°F
20°F
lbs
7
