2.2.2 Equipment external and internal structure HPSU compact 304/308 H/C DB

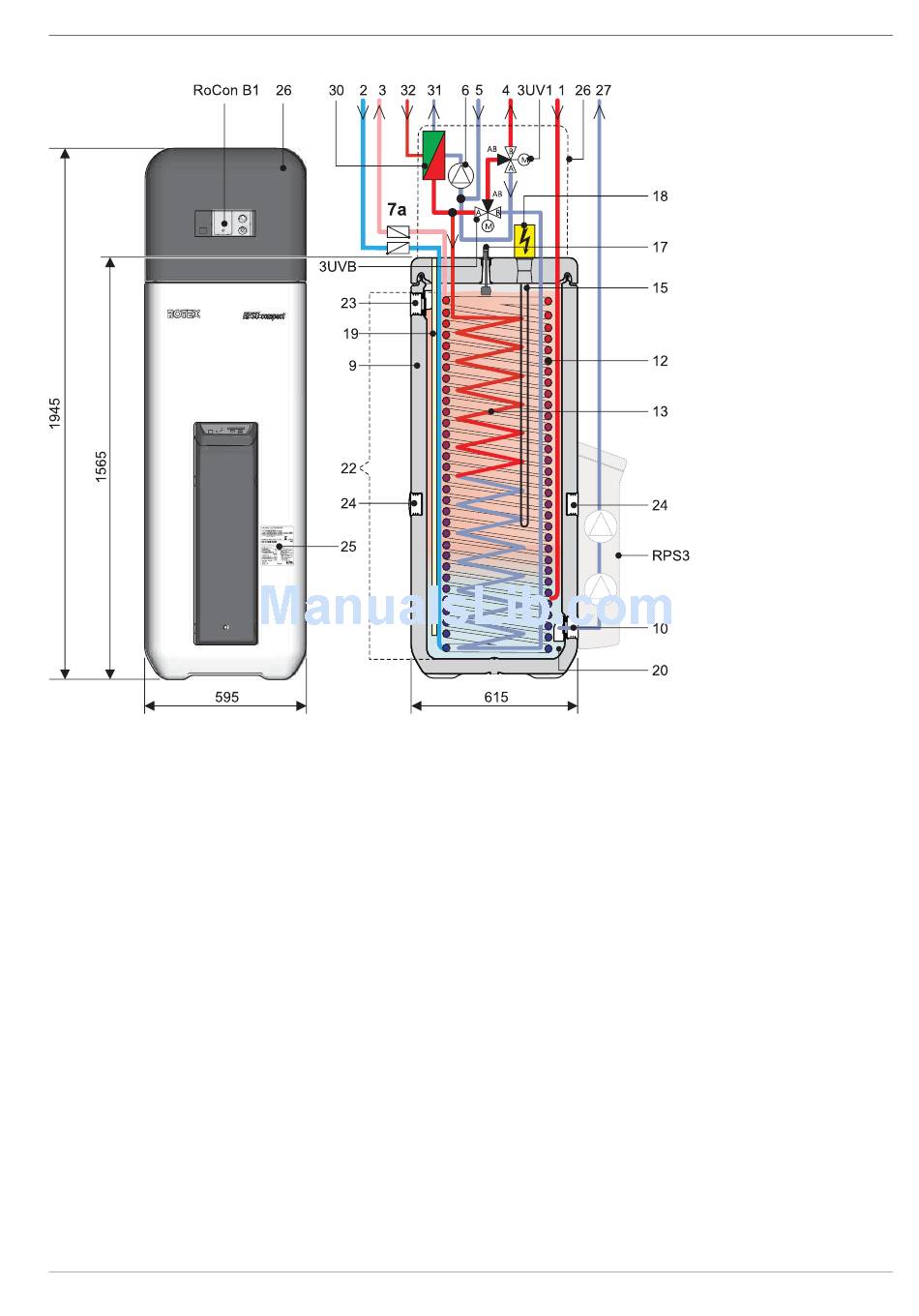

Fig. 2-2 Structure and constituents HPSU compact 304/308 DB (External appearance and internal structure)
Designations of key see table 2-1
