3 x Operation

3.2.2 Operating elements

CAUTION!
Never operate the operating elements on the
controller with a hard, pointed object. This can cause
damage and can cause the control to malfunction.
If special key combinations or extended key pushes are required
for certain function, a separate note is made in each specific
section of this description.
Rotary switch
The rotary switch is used to gain rapid direct access (main
function level) to frequently required functions and setting possi-
bilities.
Info
(section 3.3.2)
Basic Configuration
(not assigned)
Configuration
(section 3.3.1)
Time Programme
(section 3.3.8)
DHW Installation
(section 3.3.7)

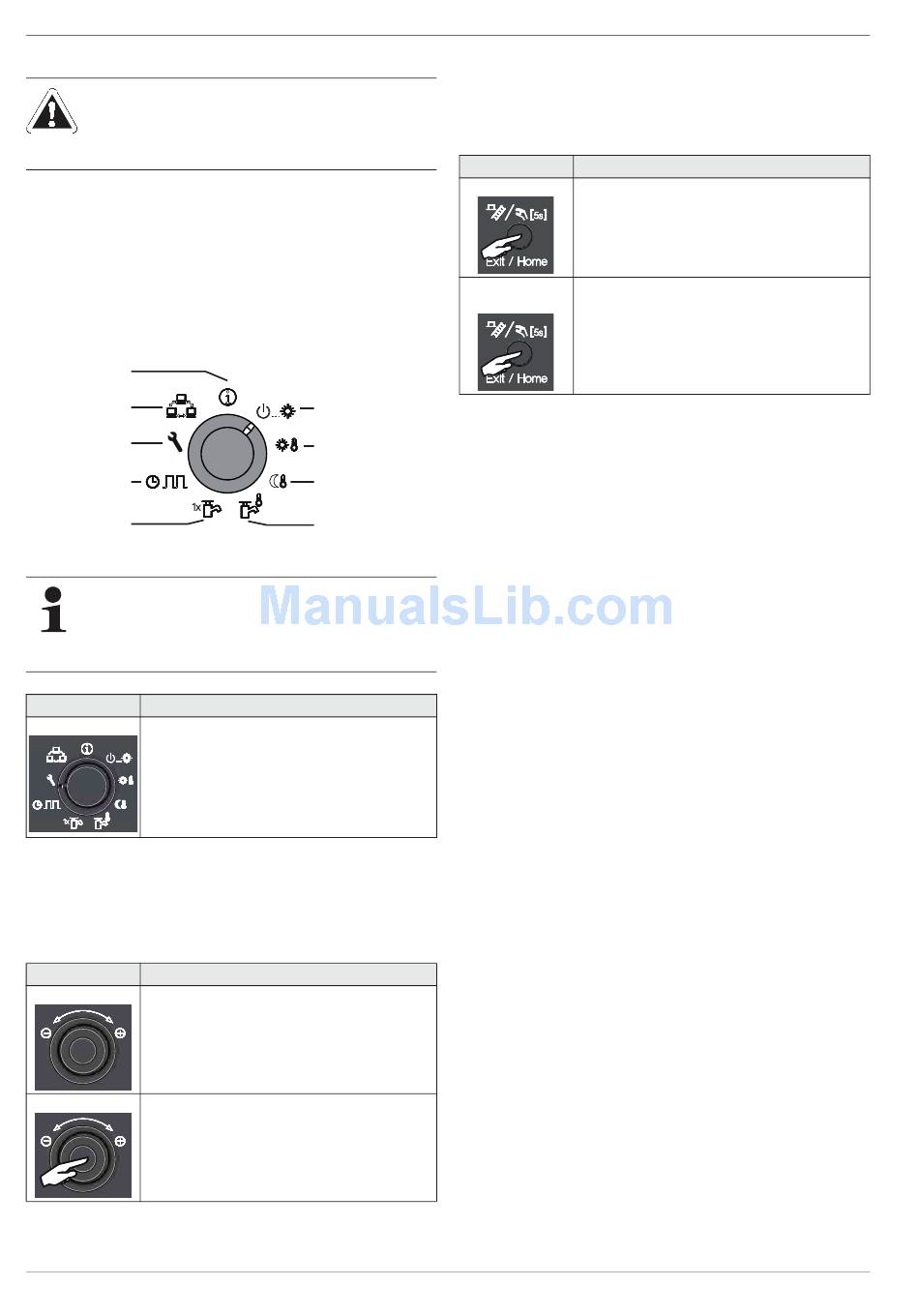

Fig. 3-3 Illustration of main function level (rotary switch position)
Independent of the setting of the rotary switch, the
HPSU compact operates in accordance with the
operating mode set in the switch position "Operating
Mode" or which has been activated by a special
programme.
Action
Rotating
Direct selection of the main function level allo-
cated to this switch position.
Tab. 3-1 Function of rotary switch
Rotary switch
The rotary switch can be used to navigate in the individual levels,
setting values can be selected and these settings can then be
accepted by pressing briefly.
Action
Rotating
To the right (+): Increased regulation
To the left (–): Reduced regulation
Tap sthing
Confirm, accept, execute selection.
Tab. 3-2 Functions of the rotary switch
12
Operating Mode
(section 3.3.1)
Set Temp Day
(section 3.3.4)
Set Temp Night
(section 3.3.5)
DHW Set Temp
(section 3.3.6)
Result
Result
Operating button
This button can be used to jump back to the previous display
within a menu display or a function / input can be interrupted.
This button can also be used to call up the special level (see
section 3.3.9).
Action
Brief actuation.
– Jump back to the previous display or pre-
vious level.
Press for more
– Special level is called up.
than 5 secs.
Tab. 3-3 Functions of the operating button

3.3 Basic functions and operating modes

If the installation is switched on, it regulates the following
operating modes fully-automatically based on the settings in the
controller:
– Room heating or room cooling
– Water heating
The operating mode can be affected by additional functions:
– Interlink Function
– Weather-dependent target value regulation
– Switching time programme
– Setting the temperature target value
– Room thermostat
– Whisper mode
– SMART GRID - Signal
– EVU (reduced cost tariff) - Signal
If the user enter a value manually, this setting remains active until
the user changes it or until the program clock forces another
setting.
BA ROTEX HPSU compact 4 - 03/2013
Result
