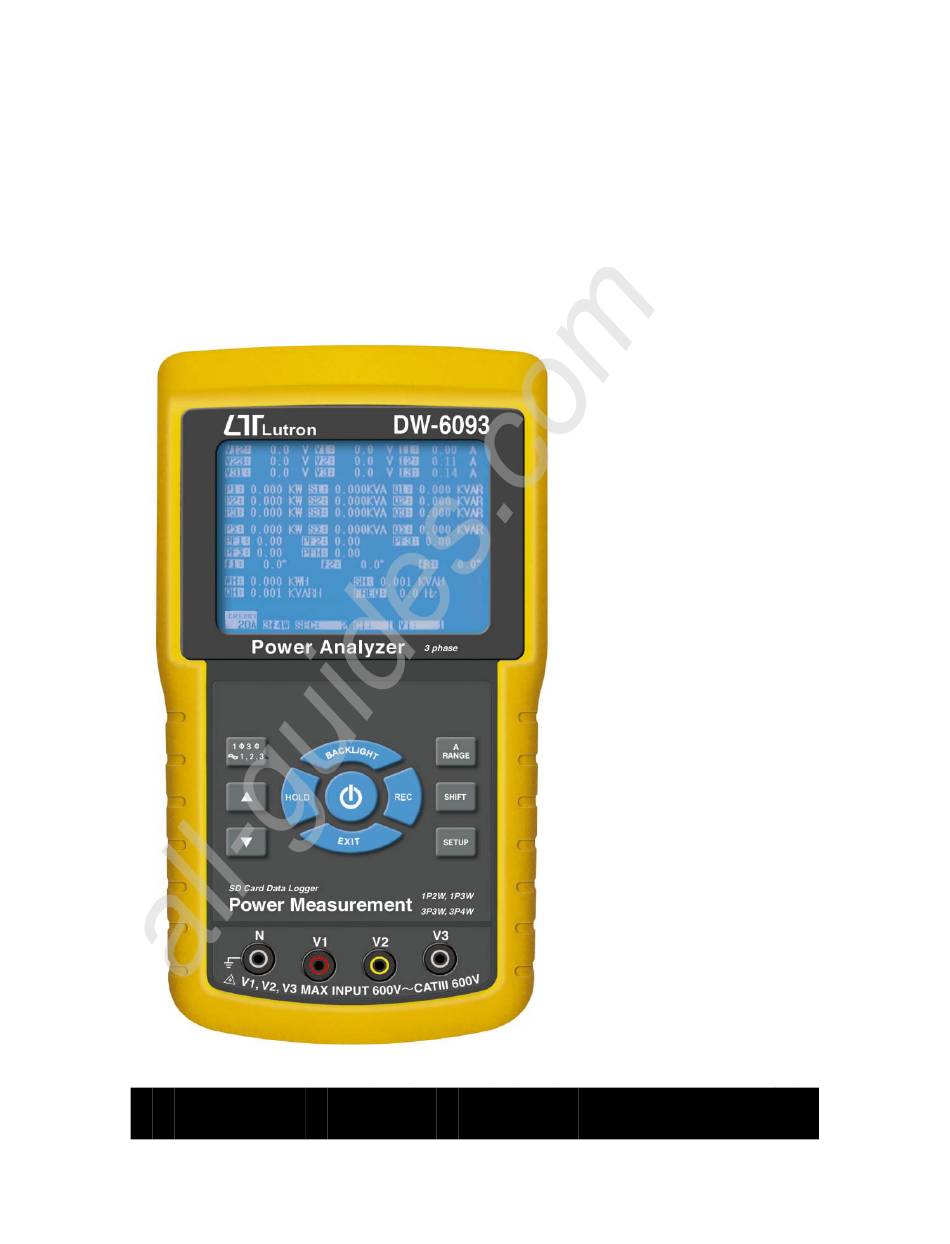

SD card real time data recorder
3 PHASE
POWER ANALYZER
Model : DW-6093
OPERATION MANUAL
Your
purchase
of
this 3 PHASE
POWER ANALYZER
marks
a
step
forward for you into
t h e
f i e l d
o f
p r e c i s i o n
measurement.
A l t h o u g h
t h i s
POWER ANALYZER
is a complex and
delicate instrument,
its durable structure
will
allow
many
years
of
use
if
proper
operating
techniques
are
developed.
Please
read the following
i n s t r u c t i o n s
carefully and always
keep
this
manual
within easy reach.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-6093 and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics DW-6093

Summary of Contents for Lutron Electronics DW-6093

  • Page 1 All manuals and user guides at all-guides.com SD card real time data recorder 3 PHASE POWER ANALYZER Model : DW-6093 Your purchase this 3 PHASE POWER ANALYZER marks step forward for you into t h e f i e l d p r e c i s i o n measurement.
  • Page 2 All manuals and user guides at all-guides.com Caution Symbol Caution : * Risk of electric shock ! * During the measurement, do not open the cabinet. Caution : * Do not apply the overload voltage, current to the input terminal ! * Remove test leads before open the battery cover ! * Cleaning - Only use the dry...

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications......... 2 2-2 Electrical Specifications........4 3. FRONT PANEL DESCRIPTION........8 4. MEASURING PREPARATION ........10 4-1 The original screen..........10 4-2 Entry the measurement Screen......10 4-3 The summary description of keyboard....12 4-4 SETUP KEY description.........13 4-5 Setting function description before measuring..14...

  • Page 4: Features

    All manuals and user guides at all-guides.com 1. FEATURES * Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W * Voltage & Current are the True RMS value. * True Power ( KW、MW、GW ) measurement. * Apparent Power ( KVA、MVA、GVA ) measurement. * Reactive Power ( KVAR MVAR、GVAR) measurement.

  • Page 5: Specifications

    All manuals and user guides at all-guides.com 2. SPECIFICATIONS 2-1 General Specifications: Circuit Custom one-chip of microprocessor LSI circuit Display * LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch ) * Dot Matrix LCD (320 X 240 pixels ) with back light.
  • Page 6 All manuals and user guides at all-guides.com Over load 720 ACV rms protection 1300 ACA with clamp probe * For the Clamp ,CP-1201 Over Indicator * LCD display show " OL ". * The data save into the SD card will show "...

  • Page 7: Electrical Specifications

    All manuals and user guides at all-guides.com Power * Meter : 250 DCmA. Consumption * Clamp : 22 DCmA. Clamp max. 50 mm ( 2.0 inch ) Dia. * For the Clamp ,CP-1201 conductor Size Weight * Meter : 975g ( includes batteries ) * Clamp ( includded cable ) : 500g Meter : Dimension...
  • Page 8 All manuals and user guides at all-guides.com Range Resolution Accuracy 0.001A, < 10 A ± (0.5%+0.1A) 0.01A, 10 A ≧ 200A 0.01A, < 100 A ± (0.5%+0.5A) 0.1A, 100 A ≧ 1200A 0.1A, < 1000 A ± (0.5%+5A) 1000 A ≧...
  • Page 9 All manuals and user guides at all-guides.com Active (Real) Power Range Resolution Accuracy 0.000 to 9.999 KW ± (1%+0.008KW) *0.001/0.01/0.1 KW 10.00 to 99.99 KW ± (1%+0.08KW) *0.01/0.1 KW 100.0 to 999.9 KW ± (1%+0.8KW) 0.1 KW 1.000 to 9.999 MW ±...
  • Page 10 All manuals and user guides at all-guides.com Watt Hour ( Active Power Hour) : WH Range Resolution Accuracy 0.000 to 9.999 KWH 0.001 KWH ± (2%+0.008 KWH) 10.00 to 99.99 KWH 0.01 KWH ± (2%+0.08 KWH) 100.0 to 999.9 KWH 0.1 KWH ±...

  • Page 11: Front Panel Description

    All manuals and user guides at all-guides.com 3. FRONT PANEL DESCRIPTION Fig. 1...
  • Page 12 All manuals and user guides at all-guides.com 3-1 Display 3-2 1Φ 3Φ ( Phase/wire ) key button key button ▲ key button ▼ 3-5 Hold key button 3-6 Backlight key button 3-7 Power key button 3-8 Exit key button 3-9 REC key button 3-10 A ( current ) range key button 3-11 Shift key button 3-12 Setup key button...

  • Page 13: Measuring Preparation

    All manuals and user guides at all-guides.com 4. MEASURING PREPARATION 4-1 The original screen 4-2 Entry the measurement Screen 1)The bottom right display of screen 1 will show as " SD Check " along with blinking while inserting SD CARD then disappears after several seconds that indicates the data from SD CARD has been read completed.
  • Page 14 All manuals and user guides at all-guides.com screen 1 ( 4-2 ) V12: 0.0 V 0.0 V 0.00 A V23: 0.0 V 0.0 V 0.00 A V31: 0.0 V 0.0 V 0.00 A -0.000 KW 0.000KVA -0.000 KVAR -0.000 KW 0.000KVA -0.000 KVAR -0.000 KW...

  • Page 15: The Summary Description Of Keyboard

    All manuals and user guides at all-guides.com 4-3 The summary description of keyboard 1)POWER KEY ( 3-7, Fig. 1 ) : Press the key to turn the instrument ON/OFF. 2)1Φ 3Φ ( phase/wire ) KEY ( 3-2, Fig. 1 ) : Press the key to select (1P/2W、1P/3W、3P/3W、3P/4W) measurement function mode.

  • Page 16: Setup Key Description

    All manuals and user guides at all-guides.com 4-4 SETUP KEY description: 4-4-1 SHIFT KEY * SHIFT 1 : When the symbols " SETUP " and " SHIFT 1 " are appeared on up right display of screen 1 in the meantime, and then use the to select the ▲...

  • Page 17: Setting Function Description Before Measuring

    All manuals and user guides at all-guides.com 4-4-2 The Setting Function menu * Folder Name : Set the expect folder name for SD CARD, the range is between WTA01 and WTA10. * File Name: Set the file name for SD CARD, It allows setting 50 filenames in this function.
  • Page 18 All manuals and user guides at all-guides.com 4-5-1 Folder Name: Set the folder name for SD screen 1 ( 4-5-1 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delet File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size:...
  • Page 19 All manuals and user guides at all-guides.com A : Folder Name range: WTA01 to WTA10. B : Press to select the expect folder number, the ▲ ▼ number consists of " 01 to 10 " (as screen 1). C : Press continuously at least two seconds can ▲...
  • Page 20 All manuals and user guides at all-guides.com screen 2 ( 4-5-2 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delet File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV...
  • Page 21 All manuals and user guides at all-guides.com E : The up right display will show " SHIFT2 " symbol while pressing SHIFT KEY again in screen 4, at this time press ▲ or ▼ to select 1P/2W(1P2)、1P/3W(1P3)、 3P/3W(3P3) and 3P/4W(3P4) as screen 4. F: One by one to press SHIFT KEY to select different functions circularly.
  • Page 22 All manuals and user guides at all-guides.com 4-5-3 Sampling time: Set the data logger sampling time for SD A : When press SHIFT KEY once, the symbol " SHIFT1 " will disappear on up right display, at this time press to adjust expect sampling time as screen 2, ▲...
  • Page 23 All manuals and user guides at all-guides.com 4-5-4 Delete File: Delete the files for SD A : The indicator " Y or N " will appear on right side display of the option while pressing SHIFT KEY continuously at least two seconds, and now press ▲ the display will show "...
  • Page 24 All manuals and user guides at all-guides.com screen 2 ( 4-5-4 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Y OR N Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size:...
  • Page 25 All manuals and user guides at all-guides.com screen 1 ( 4-5-5 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB...
  • Page 26 All manuals and user guides at all-guides.com 4-5-6 PT: Set the Potential Transformer A : When press SHIFT KEY once, the symbol " SHIFT1 " will disappear as screen 2 at this time press ▲ ▼ adjust to expect PT values, the adjusting numbers are from 1 to 1000.
  • Page 27 All manuals and user guides at all-guides.com screen 2 ( 4-5-6 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV...
  • Page 28 All manuals and user guides at all-guides.com screen 1 ( 4-5-7 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB...
  • Page 29 All manuals and user guides at all-guides.com 4-5-8 Beep: Control the buzzer to ON/OFF A : When press SHIFT KEY once the symbol " SHIFT1 " will disappear as screen 2, at this time press ▲ ▼ control the buzzer to ON/OFF. B : Press SHIFT KEY once again will return to screen 1 then press to enter next setting function ( BEEP...
  • Page 30 All manuals and user guides at all-guides.com screen 2 ( 4-5-8 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV...
  • Page 31 All manuals and user guides at all-guides.com * Basic type : The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . * Euro type : The numerical data structure of SD card is default used the "...
  • Page 32 All manuals and user guides at all-guides.com screen 2 ( 4-5-9 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal : Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range:...
  • Page 33 All manuals and user guides at all-guides.com screen 1 ( 4-5-10 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB...
  • Page 34 All manuals and user guides at all-guides.com 4-5-11 A range Setting ( Current range Setting ) A : When press SHIFT KEY once the symbol " SHIFT1 " will be disappeared and show as screen 2, at this time press to select A range to 20A to 2000A or ▲...
  • Page 35 All manuals and user guides at all-guides.com screen 2 ( 4-5-11 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV...
  • Page 36 All manuals and user guides at all-guides.com screen 1 ( 4-5-12 ) Folder Name: WTA01 SETUP File Name: 3P401001.XLS SHIFT 1 REC Date: 2008-11-28 00:03:17 Sampling Time: Delete File: Decimal: Basic SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB...
  • Page 37 All manuals and user guides at all-guides.com 4-5-13 RS232 Out Sel setting A : When press SHIFT KEY continuously at least two seconds as screen 2 and now press to select ▲ ▼ the item that intend to output, maximum up to nine items, when the cursor stops on the selected item and then press SETUP KEY again, the selected item will be displayed in highlight.
  • Page 38 All manuals and user guides at all-guides.com screen 2 ( 4-5-13 ) RS232 OUTPUT SELECT 12. P3 23. PF2 13. PΣ 24. PF3 25. PFΣ 15. S2 26. PFH 16. S3 Φ 1 17. SΣ 28. Φ 2 29. Φ 3 19.
  • Page 39 All manuals and user guides at all-guides.com 4-5-14 Year/Month/Date/Hour/Minute/Second setting A : When press SHIFT KEY once, the symbol " SHIFT1" will disappear as screen 2, at this time press ▲ ▼ to adjust expect numbers, and press ▲ ▼ continuously at least two seconds can skip the numbers faster.
  • Page 40 All manuals and user guides at all-guides.com Folder Name: WTA01 SETUP File Name: 3P401001.XLS REC Date: 2008-11-28 00:03:17 Sampling Time: screen 2 Delete File: Decimal: Basic ( 4-5-14 ) SD Format: Clamp Type: CP1201 Use Size: 388 KB Range: Free Size: 1946 MB Range: 200mV...

  • Page 41: Measuring Procedures

    All manuals and user guides at all-guides.com 5. MEASURING PROCEDURES 5-1 1Φ 2W ( one phase by two wires ) measurement A : Diagram SCREEN 1 ( 5-1 ) B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ...

  • Page 42: 3W (One Phase By Three Wires) Measurement

    All manuals and user guides at all-guides.com screen 2 ( 5-1 ) V 1 : A 1 : 0.00 P 1 : - 0.000KW P F 1 : - 0.00 S 1 : 0.000KVA P F H : 0.00 Q 1 : - 0.000KVAR Φ...
  • Page 43 All manuals and user guides at all-guides.com B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 1Φ 3W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 44: 3W ( Three Phase By Three Wires ) Measurement

    All manuals and user guides at all-guides.com 5-3 3Φ 3W (three phases by three wires) measurement A : Diagram screen 1 ( 5-3 ) B : Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 3W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 45: Measurement

    All manuals and user guides at all-guides.com screen 2 ( 5-3 ) V 1 2 : A 1 : 0.00 V 2 3 : A 2 : 0.00 V 3 1 : A 3 : 0.00 P Σ : - 0.000 KW S Σ...
  • Page 46 All manuals and user guides at all-guides.com B: Operation Instructions: B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 4W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 47: The Ct And Pt Measurement

    All manuals and user guides at all-guides.com 5-5 The CT and PT measurement A : Diagram screen 1 ( 5-5 ) B : Operation Instructions B-1 : Power on the instrument by pressing POWER KEY, and then press 1Φ 3Φ KEY to select the 3Φ 4W system, the selected name of system will be appeared on bottom left display of screen 2.

  • Page 48: Zero Adjustment For Watt Hour

    All manuals and user guides at all-guides.com screen 2 ( 5-5 ) V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW...

  • Page 49: Data Logger Function

    All manuals and user guides at all-guides.com 5-7 Data Logger Function A : Press REC KEY once to start the data record function. A-1 : If the bottom right shows as " Change Card ", it indicates the memory space is already full either or the SD CARD exist some wrong.
  • Page 50 All manuals and user guides at all-guides.com screen 1 ( 5-6 B ) V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW...

  • Page 51: Data Hold Function

    All manuals and user guides at all-guides.com 5-8 Data HOLD Function A: During the measurement, press HOLD KEY once, the bottom right display will show “ HOLD symbol as screen 1. B: Press the HOLD KEY twice will disable the Data HOLD function and the “...

  • Page 52: Backlight Key

    All manuals and user guides at all-guides.com 5-9 BACKLIGHT KEY Control the backlight function of LCD to ON/OFF 5-10 A Range ( Current Range ) KEY function a) The A Range ( Current Range ) function key is used to change the current range quickly.

  • Page 53: Lowbat Screen

    All manuals and user guides at all-guides.com 5-11 The LOWBAT screen: as show on lower right display of the following screen. V12: 0.0 V 0.0 V 0.00 V23: 0.0 V 0.0 V 0.00 V31: 0.0 V 0.0 V 0.00 - 0.000 KW 0.000 KVA - 0.000 KVAR - 0.000 KW...
  • Page 54 All manuals and user guides at all-guides.com 5-12 Appendix 1 * V12, V23, V31 : Line Voltage * V1, V2, V3 : Phase Voltage * A1, A2, A3 : Line Current * P1, P2, P3 : True Power of each phase. (W) * S1, S2, S3 : Apparent Power of each phase.

  • Page 55: Maintenance

    All manuals and user guides at all-guides.com 6. MAINTENANCE Remove test leads before Caution : opening the battery cover or housing case ! 6-1 Cleaning Cleaning - Only use Caution : the dry cloth to clean the plastic case ! 6-2 Replacement of batteries 1)When Display show the "...

  • Page 56: Rs232 Pc Serial Interface

    All manuals and user guides at all-guides.com 7. RS232 PC SERIAL OUTPUT The instrument is provided an 3.5 mm dia. phone socket ( 3-16, Fig. 1 ) for RS232 computer interface socket. The connector output is a 16 digits data stream which can be utilized to the user's specific application.
  • Page 57 All manuals and user guides at all-guides.com Each digit indicate the following status : Start Word D12 & D11 Annunciator for Display 31=HZ C0 = MW D1 = GW/Hr 32=DEGREE C1 = GW D2 = TW/Hr 48=K WATT C2 = TW D3 = KVA/Hr 50=ACV C3 = MVA...

  • Page 58: Download The Saving Data From The Sd Card To The Computer ( Excel Software )

    All manuals and user guides at all-guides.com 8. Download the saving data from the SD card to the computer ( EXCEL software ) 1)After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-15, Fig. 1 ). 2)Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...
  • Page 59 All manuals and user guides at all-guides.com EXCEL data screen 2 ( for example ) EXCEL data screen 3 ( for example ) EXCEL data screen 4 ( for example )
  • Page 60 All manuals and user guides at all-guides.com EXCEL data screen 5 ( for example ) EXCEL data screen 6 ( for example ) EXCEL graphic screen 1 ( for example )
  • Page 61 All manuals and user guides at all-guides.com EXCEL graphic screen 2 ( for example ) EXCEL graphic screen 3 ( for example )

  • Page 62: Patent

    All manuals and user guides at all-guides.com EXCEL graphic screen 4 ( for example ) EXCEL graphic screen 5 ( for example ) 9. PATENT The SD card installation for handheld instruments and the SD card data format structure ( Data to EXCEL file format ) already patent pending in the following countries : U.S.A, CHINA, GERMANY, JAPAN, TAIWAN...

  • Page 63: The Address Of After Service Center

    All manuals and user guides at all-guides.com 10. THE ADDRESS OF AFTER SERVICE CENTER 1011-DW6093...
