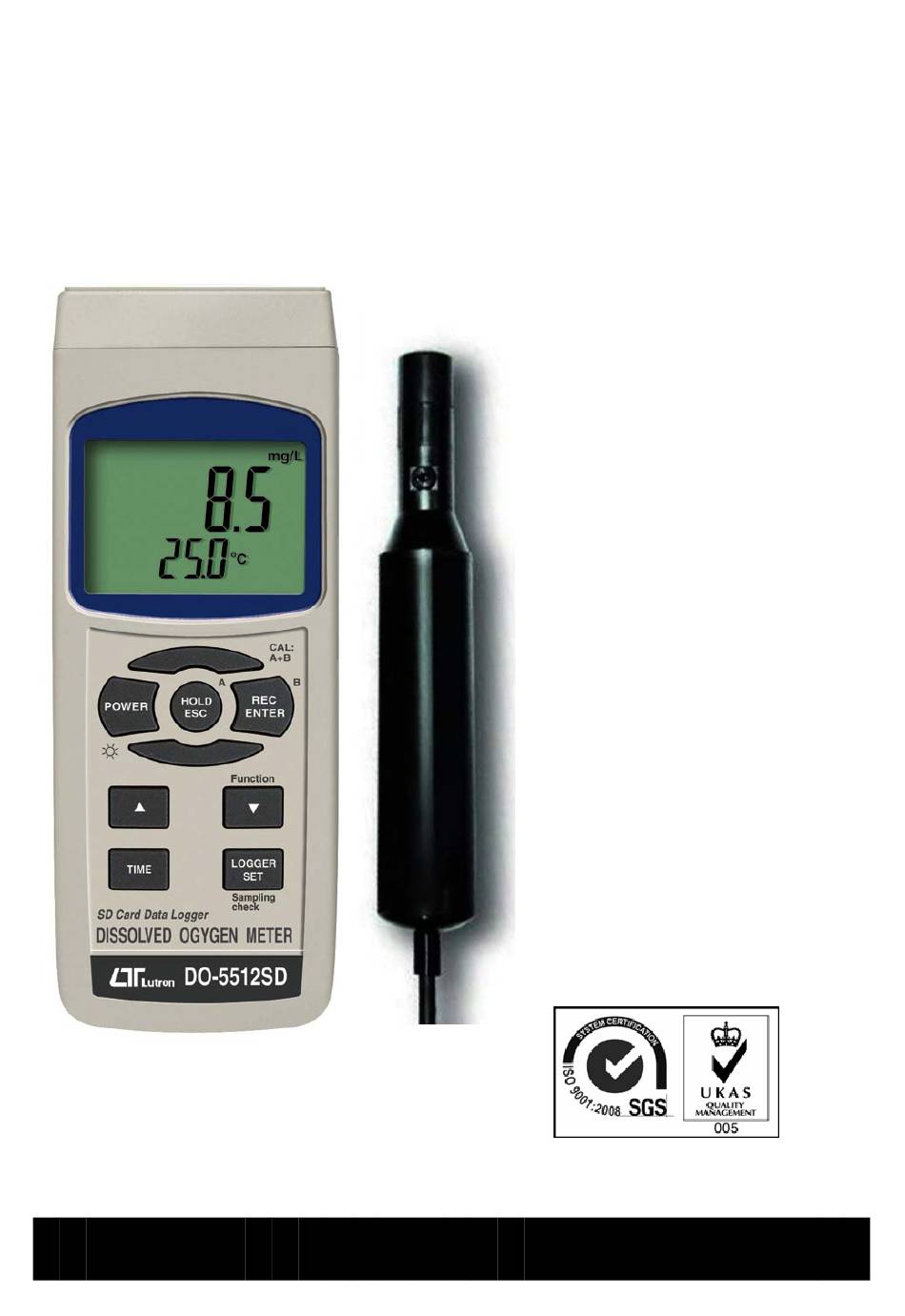

Model : DO-5512SD
OPERATION MANUAL
Your purchase of this
DISSOLVED
METER with SD CARD
DATA LOGGER marks a
step forward for you
into
the
field
precision measurement.
Although this meter a
complex
and
instrument, its durable
structure
will
many years of use if
p r o p e r
o p e r a t i n g
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
OXYGEN
of
delicate
allow
a r e
carefully
easy

Advertisement

Table of Contents
loading

Summary of Contents for Lutron Electronics DO-5512SD

  • Page 1 SD card real time data logger DISSOLVED OXYGEN METER Model : DO-5512SD Your purchase of this DISSOLVED OXYGEN METER with SD CARD DATA LOGGER marks a step forward for you into field precision measurement. Although this meter a complex delicate...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 3. FRONT PANEL DESCRIPTION........5 4. DO ( Dissolved Oxygen ) MEASURING and CALIBRATION PROCEDURE........7 4-1 Dissolved Oxygen measurement......7 4-2 Calibration.............10 4-3 Probe maintenance..........11 5. OTHER FUNCTION............13 5-1 Data Hold..............13 5-2 Record ( Max./ Min.
  • Page 3: Features

    1. FEATURES * Precision Dissolved Oxygen measurement * Dissolved oxygen : 0 to 20.0 mg/L. * Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement. * Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
  • Page 4: Specifications

    * Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning. 2. SPECIFICATIONS Circuit Custom one-chip of microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ).
  • Page 5 Oxygen The polarographic type oxygen probe with Probe temp. sensor. Memory Card SD memory card. 1 GB to 16 GB. Advanced * SD memory card Format setting * Set clock time ( Year/Month/Date, Hour/Minute/ Second ) * Set sampling time * Auto power OFF management * Set beep Sound ON/OFF * Decimal point of SD card setting...
  • Page 6 Power Current Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA. When SD card save the data and LCD Backlight is OFF) : Approx. DC 37 mA. * A If LCD backlight on, the power consumption will increase approx.
  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION...
  • Page 8 3-1 Display 3-2 Power Button ( Backlight Button ) 3-3 Hold Button ( ESC Button ) 3-4 REC Button ( Enter Button ) Button ▲ Button ( Function Button ) ▼ 3-7 Time Button 3-8 Logger Button ( SET Button, Sampling check ) 3-9 Stand 3-10 Battery Compartment/Cover 3-11 Battery Cover Screw...
  • Page 9: Do ( Dissolved Oxygen ) Measuring And Calibration Procedure

    4. DO ( Dissolved Oxygen ) MEASURING and CALIBRATION PROCEDURE 4-1 Dissolved Oxygen measurement Fig. 2 1) Prepare the Oxygen Probe ( standard probe, DOPB-11 ), install the " Probe Plug " ( 4-1, Fig. 2 ) into the " DO Socket " ( 3-13, Fig. 1 ). 2) Power on the meter by pressing "...
  • Page 10 Calibration at first ! If it is the first time to use the Dissolved Oxygen meter or after a certain period to use the meter again, then it should to execute the calibration procedures at the first. For the measurement precisely consideration, it recommend to make the calibration before each measurement.
  • Page 11 6) Display will show the Dissolved Oxygen values ( mg/L ) at the same time the bottom display will show the Temp. value of the measured solution. 7) Rinsed the probe accurately with normal tap water after each series of measurement. Oxygen in the air During the DO measurement, press the "...
  • Page 12: Calibration

    4-2 Calibration 1) Install the " Probe Plug " ( 4-1, Fig. 2 ) into the " DO Socket " ( 3-13, Fig. 1 ). 2) Power on the meter by pressing " Power Button " ( 3-2, Fig. 1 ) once. Press the "...
  • Page 13: Probe Maintenance

    4-3 Probe maintenance User first time to use the meter Intend to let the DO probe keep the best condition, when user receive the Oxygen Probe, it should fill the Probe's Electrolyte at first. User already use the probe for a certain period : Whenever user can not calibrate the meter properly or the meter's reading value is not stable,...
  • Page 14 Probe-filling Electrolyte, OXEL-03 1) Unscrew the " Probe head " ( 5-3, Fig 3 ). 2) Pour out the old Electrolyte from the container of the " Probe head ". 3) Fill the new Electrolyte ( OXEL-03 ) into the container of the " Probe head "...
  • Page 15: Other Function

    5. OTHER FUNCTION 5-1 Data Hold During the measurement, press the " Hold Button " ( 3-3, Fig. 1 ) once will hold the measured value & the LCD will display a " HOLD " symbol. Press the " Hold Button " once again will release the data hold function.
  • Page 16: Lcd Backlight On/Off

    5-3 LCD Backlight ON/OFF After power ON, the " LCD Backlight " will light automatically. During the measurement, press the " Backlight Button " ( 3-2, Fig. 1 ) once will turn OFF the " LCD Backlight ". Press the " Backlight Button " once again will turn ON the "...
  • Page 17: Auto Datalogger ( Set Sampling Time ≧ 1 Second )

    6-2 Auto Datalogger ( Set sampling time 1 second ) ≧ a. Start the datalogger Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-8, Fig.
  • Page 18: Manual Datalogger ( Set Sampling Time = 0 Second )

    6-3 Manual Datalogger ( Set sampling time = 0 second ) a. Set sampling time is to 0 second Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-8, Fig.
  • Page 19: Check Time Information

    6-4 To check the time information During the normal measurement screen ( not execute the Datalogger ), 1) If press " Time Button " ( 3-7, Fig. 1 ) once , the lower LCD display will present the time information of Hour/Minute/Second ( h.m.s ) in the lower Display.
  • Page 20 2) If the first time to execute the Datalogger, under the route DOA01\, will generate a new file name DOA01001.XLS. After exist the Datalogger, then execute again, the data will save to the DOA01001.XLS until Data column reach to 30,000 columns, then will generate a new file, for example DOA01002.XLS 3) Under the folder DOA01\, if the total files more than 99 files, will generate anew route, such as...
  • Page 21: Saving Data From The Sd Card To The Computer

    7. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-17, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...
  • Page 22 EXCEL data screen/graphic screen ( for example ) EXCEL graphic screen ( for example 3, graphic )
  • Page 23: Advanced Setting

    8. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-8, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the " SET Button " ( 3-8, Fig. 1 ) once a while in sequence to select the eight main function, the display will show : Sd F..
  • Page 24 8-1 SD memory card Format When the lower display show " Sd F " 1) Use the " Button " ( 3-5, Fig. 1 ) or " Button " ( ▲ ▼ 3-6, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 25 2) After set all the time value ( Year, Month, Date, Hour, Minute, Second ), press the " SET Button " ( 3-8, Fig. 1 ) once will save the time value, then the screen will jump to Sampling time " setting screen ( Chapter 8-3 ). Remark : After the time value is setting, the internal clock will run precisely even Power off if the battery is under...
  • Page 26 8-4 Auto power OFF management When the lower display show " PoFF " 1) Use the " Button " ( 3-5, Fig. 1 ) or " Button " ▲ ▼ ( 3-6, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 27 8-6 Decimal point of SD card setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "...
  • Page 28 2) After Display unit is selected to " C " or " F ", press the " Enter Button " ( 3-4, Fig. 1 ) will save the setting function with default. 8-8 Set DO salt% compensation value When the lower display show " SALt " 1) This function only for the DO ( Dissolved oxygen ) mode of adjusting the probe's salt% compensation value.
  • Page 29 8-10 Set DO height ( feet ) compensation value When the lower display show " Highf " 1) This function only for the DO ( Dissolved oxygen ) mode of adjusting the probe's height compensation value in feet unit. The default value is 0 FEET. 2) Use the "...
  • Page 30: Power Supply From Dc Adapter

    9. POWER SUPPLY from DC ADAPTER The meter also can supply the power supply from the DC 9V Power Adapter ( optional ). Insert the plug of Power Adapter into " DC 9V Power Adapter Input Socket " ( 3-17, Fig. 1 ). The meter will permanent power ON when use the DC ADAPTER power supply ( The power Button function is disable ).
  • Page 31: Rs232 Pc Serial Interface

    12. RS232 PC SERIAL INTERFACE The instrument has RS232 PC serial interface via a 3.5 mm terminal ( 3-16, Fig. 1 ). The data output is a 16 digit stream which can be utilized for user's specific application. A RS232 lead with the following connection will be required to link the instrument with the PC serial port.
  • Page 32: Optional Accessories

    D12, D11 Annunciator for Display mg/L = 07 % O2 = 06 Polarity 0 = Positive 1 = Negative D8 to D1 Display reading, D1 = LSD, D8 = MSD For example : If the display reading is 1234, then D8 to D1 is : 00001234 End Word RS232 FORMAT : 9600, N, 8, 1...
  • Page 33: Patent

    Data * The SW-U801-WIN is a multi Acquisition displays ( 1/2/4/6/8 displays ) software powerful application software, SW-U801-WIN provides the functions of data logging system, text display, angular display, chart display, data recorder high/low limit, data query, text report, chart report.. .xxx.mdb data file can be retrieved for EXCEL, ACESS.., wide intelligent applications.
