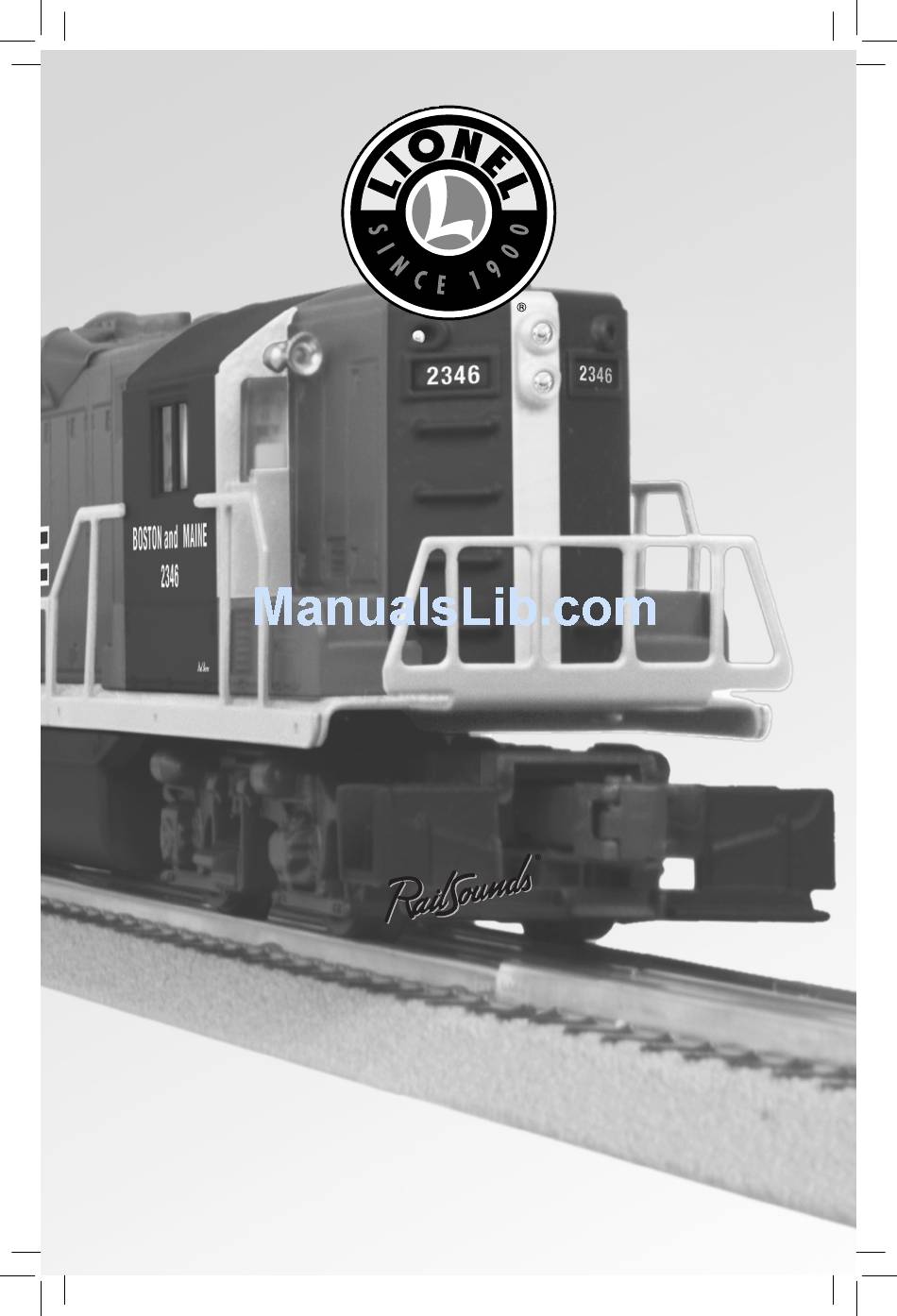

  • Page 1 78-1021-250 6/14 B&M Paul Revere B&M Paul Revere GP-9 Freight Set GP-9 Freight Set Owner’s Manual Owner’s Manual Featuring CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHILDREN UNDER FOURTEEN YEARS OF AGE. AS WI T H ALL ELECTRI C PRODUCTS, PRECAUTI O NS SHOULD BE OBSERVED DURI N G HANDLI N G AND USE TO PREVENT ELECTRI C SHOCK.
  • Page 2 Replacing the lamp in your aquarium car Replacing the lamp in your porthole caboose Lionel Limited Warranty Policy & Service The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel ®...
  • Page 3: Running Your Train

    Refer to the following section for information on coupling the cars. Power up your locomotive with your transformer. Your locomotive is designed to operate on 5-18 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Note! Do not power your locomotive with direct-current (DC) transformers.
  • Page 4: Reverse Unit Procedure

    Running your train Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state.
  • Page 5 Running your train Operating the RailSounds sound system hen you power up the locomotive on the track, you will hear the sounds of the idling diesel motor. As you increase speed, the RPM sounds will ramp up through eight levels. Horn Press the HORN button on your transformer to sound the horn.
  • Page 6 Running your train Installing a 9 Volt Battery in your GP9 our GP9's Railsounds system will allow you to install a 9 Volt battery to prevent the sounds from dropping out between directional state changes and to keep the sounds alive during the shut down process, when power is removed from the track.
  • Page 7 Running your train Operating your Motorized Aquarium Car o operate the Motorized Aquarium Car with the decorated belt in motion, slide the power switch to the ON position. As illustrated in Figure 4, this switch is located on the bottom of the car.
  • Page 8: Maintaining And Servicing Your Set

    Maintaining and servicing your set Lubricating your locomotive elp your Lionel locomotive lead a long and productive life on your railroad by maintain- ing it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the locomotive’s wheels, contact...
  • Page 9: Replacing Your Locomotive's Traction Tire

    LED headlamps which are designed to last for the life of the product. In the event the LED headlamps need replaced we suggest you take it to your local Factory Trained Authorized Service Station or contact Lionel Customer Service in Concord, NC.
  • Page 10 Aquarium Car is illuminated by one lamp. During the course of normal operations, this lamp may require replacement. Replacement lamps (Lionel part no. 6308352311) are available from your local Factory Trained Authorized Lionel Service Station or contact Lionel Customer Service. Refer to Figure 6.
  • Page 11: Replacing The Lamp In Your Porthole Caboose

    Follow these steps and refer to Figure 7 as you replace the lamp. Replacement lamps (Lionel part no. 6000161300) are available from your local Factory Trained Authorized Lionel Service Station or from Lionel Customer Service.
  • Page 12 (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
