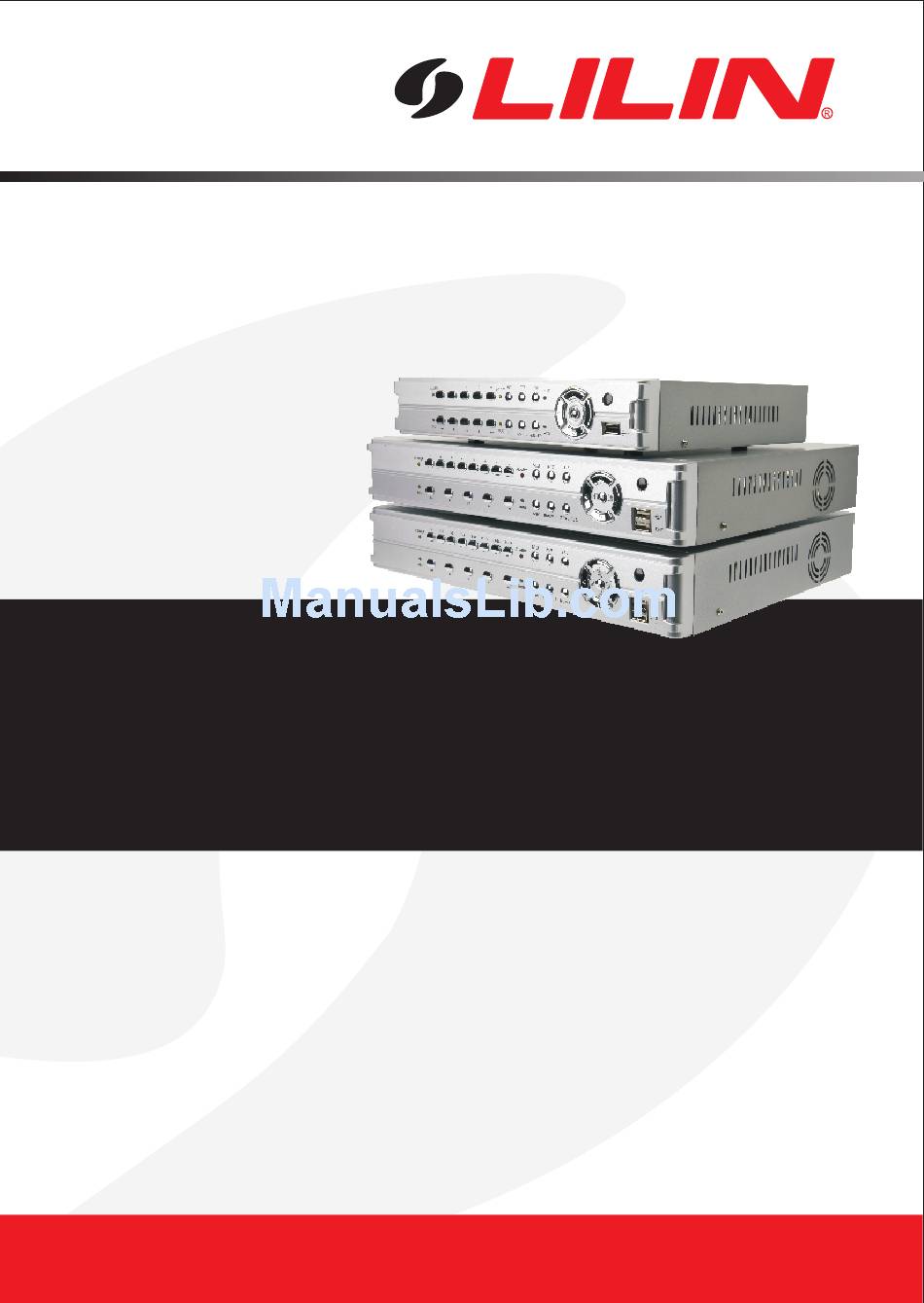

- Page 1 4/8/16CH DIGITAL VIDEO RECORDER DVR204B/208B/216B INSTRUCTION MANUAL...
- Page 2 WARNING Do not expose the DVR under strong sunlight, heat or wet environment while installing. As it may decrease the performance of DVR and damage the machine. Do not plug the power plug or touch the case with wet hands as this may result in electric shock or fire.
-
Page 3: Specification
1. Specification DVR216B Model DVR204B DVR208B Video System NTSC/PAL Control Panel Compression H.264 Video Input BNC x4(1 Vp-p,75Ω) BNC x8(1 Vp-p,75Ω) BNC x16(1 Vp-p,75Ω) Video Output BNC x1/ VGA x1 BNC x2/ VGA x1 Audio Input/Output Input1/ Output1/ RCA Input1/ Output1/ RCA... -
Page 4: Front Panel
2. Front Panel 1~4/8/16 Channel 1~4/8/16 Under the live viewing mode or playback mode, 1~4/8 Channel display. Under the playback mode, press the STOP button to stop the operation or go to Stop the upper menu. Pause Under the playback mode, press the Pause button to pause the playback. Under the pause mode during the playback, press the button to playback frame by Step Forward frame in each time. -
Page 5: Installation
3. Installation 4CH DVR 8CH DVR 16CH DVR USB Mouse Port 2.0 USB Mouse Video In 4/8/16CH Video Input (BNC) Video Out 1CH Video Output (BNC) Audio Out 1CH Audio Output (RCA) Audio In 4CH Audio Input DC12V Power Input PC Monitor Output RJ-45 Network Connection RS-485... -
Page 6: System Operation
4. System Operation There are 3 different types of DVR control modes: USB mouse, remote control and front panel. USB Mouse Operation 1. Quick Menu: Left click the mouse and select “Quick Menu” 2. Left click the mouse button under the main menu to click on sub-select menu. - Page 7 ICON DESCRIPTION AUDIO Live Audio is On/Off PLAY Play the latest recording segment portion 0~9, +10 Switch to full screen or quad display FREEZE Turn on/off to pause the screen MENU Enable/ Disable Setup Menu PRESET PTZ (Pan-Tilt-Zoom) mode ZOOM Zoom in/out Return to the previous menu ENTER...
-
Page 8: Quick Setup
5. Quick Setup Default setting: Login ID: admin IP address: 192.168.0.100 Password: 1111 Default gateway: 192.168.0.1 • Enter main menu Live monitor mode and right click your mouse, select to enter into main menu or click on “MENU”button to enter. •... -
Page 9: Record Setup
(3) Select the hard disk you would want to format and proceed formatting by click “START” button (4) Complete formatting • Record Setup (resolution rate, image quality, and image quantity) (1) Record Setup... - Page 10 Setup on resolution rate, image quality, and image quantity • Record Setup (Sequence Setup) (1) Sequence recording schedule setup...
- Page 11 Select recording in full-time (24/7 nonstop) and apply to all cameras with the same rule by select “All Same.” (3) Setup was being succefully completed. Screen central will show “recording” red light indicates recordings are currently in session...
- Page 12 6. Toolbar management In livetime survillence mode (LIVE mode), you are given choices to monitor screen images across all cameras, retrieve audio sources at the scene, and screen image alteration control. Next, we are going to introduce the operation of survillence mode as well as reminder icons.
- Page 13 Graphical icons will show on the screen after right-clicked your mouse under LIVE mode ICON DESCRIPTION CH1~CH16 Signal Screen Record=「REC」，Start record Stop record Play=「PLAY」，playback Freeze-screen is frozen Lock=「LOCK」 Backup- information backup Graphical icons will show on the screen after right-clicked your mouse under Remote mode ICON DESCRIPTION...
- Page 14 NOTE: Make sure that your Internet browser allows signed ActiveX plug-in running on your PC. Set “Download Signed ActiveX plug-in controls” to “Prompt,” and set “Run ActiveX control and plug-in” to “Enable” on your IE (Internet Explore) Steps: Explore Tools Options Security Settings Adding to trusted Website Switch to the PLAYBACK Mode by pressing “PLAY”...
- Page 15 Normal speed playback Stop Normal speed play Pause/Signal screen play Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16X, 32X and 64X Graphical icons that will display under Remote mode ICON DESCRIPTION USB device detected...
- Page 16 Switch to PTZ (Pan-Tilt-Zoom) mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the right down corner of the screen. ICON DESCRIPTION Via Set funtion, cameras will point-by-point to patrol the environment fully.
- Page 17 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-DVR204BCSE...
