Lilin DVR304 Instruction Manual

4/8/16ch digital video recorder
Hide thumbs Also See for DVR304:
Table of Contents

Advertisement

Quick Links

4/8/16CH DIGITAL VIDEO RECORDER
DVR304/308/316
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR304 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin DVR304

Summary of Contents for Lilin DVR304

  • Page 1 4/8/16CH DIGITAL VIDEO RECORDER DVR304/308/316 INSTRUCTION MANUAL...

  • Page 2: Major Features

    Summary DVR series are designed to meet the demands for full 4/8/16-channel real-time recording systems. Frame rate, video quality, and resolution can be adjusted for each channel to meet recording requirement. VGA engines are built-in 3D intellectual motion adoptive refinement with vivid image enhancement algorithm to provide best video quality. DVR series provide various backup features include USB DVD/RW, USB flash disk, HTTP download, and Backup Manager FTP for multiple DVRs' files download.

  • Page 3: Trademarks And Registered Trademarks

    Trademarks and Registered Trademarks Microsoft, Windows 2000, Windows XP, Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. And/or other countries. Adobe and Adobe PDF are registered trademarks of Adobe Systems Incorporated in the U.S. and/or other countries. JavaScript and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc.

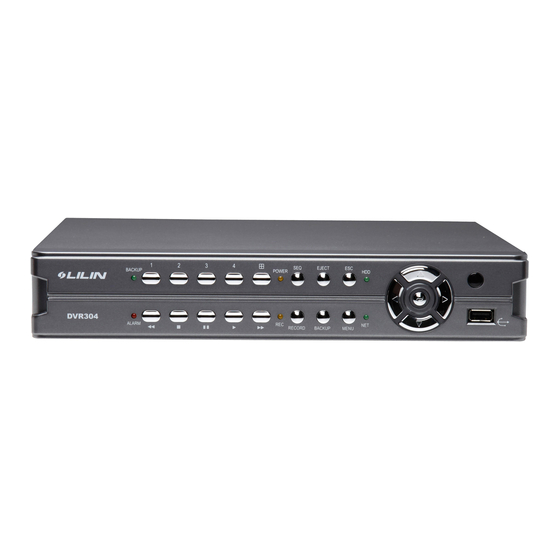

  • Page 4: Front Panel

    Front Panel [DVR304] EJECT BACKUP POWER DVR304 ALARM RECORD BACKUP MENU 1. LED status panel 11. Right button Please see system LED status panel. a. Move cursor right in menu. 2. Split-display/camera buttons b. Pan right at PTZ control mode.
  • Page 5 [DVR308] POWER ALARM DVR308 BACKUP MENU 1. LED status panel 11. Right button/Split-display Please see system LED status panel. a. Move cursor right in menu. 2. Camera buttons b. Pan right at PTZ control mode. Camera selection mode. c. Increase a value. 3.
  • Page 6 [DVR316] 9-10 11-12 13-14 15-16 POWER ALARM DVR316 BACKUP MENU 1. LED status panel 11. Right button/Split-display Please see system LED status panel. a. Move cursor right in menu. 2. Camera buttons b. Pan right at PTZ control mode. c. Increase a value. Camera selection mode.

  • Page 7: Rear Panel

    Rear Panel [DVR304] 1. Main monitor 7. Network RJ-45 connector 2. Camera inputs 8. RS-485 Analog camera BNC inputs. For PTZ connection. 3. Audio inputs 9. Alarm I/Os Four RCA audio connectors. Alarm input switches, 1 N/O alarm output, 4. Audio output and 1 N/C alarm output.

  • Page 8: Led Status Panel

    15. Power switch 7. VGA output LED Status Panel System LEDs are meaningful while operating the DVR. The status of each LED is decribed as in the following table: [DVR308] [DVR304] [DVR316] Item Description Color BACKUP Backup LED indicator...

  • Page 9: Remote Controller

    Remote Controller The button arrangement of the remote controller is designed for easy-to-use purposes. Buttons are separated in regions based on their features including DVR operational keys, pan, tilt, and zoom camera device(PTZ) keys, numerical keys, and PTZ buttons. DVR operational keys: MENU : Setup menu.

  • Page 10: Hdd Information

    HDD Information HDD INFO shows the following information: 1. Size The capacity of the hard disk drive. 2. Approximate recording hour recording hours based on the HDD(s). 3. Approximate recording days recording days based on the HDD(s). 4. Average frame size Average picture size.

  • Page 11: Firmware Update

    PASSWORD/ACCESS USER ADMIN OLD PASSWORD **** NEW PASSWORD **** CONFIRM PASSWORD **** PROPERTY ENABLE PASSWORD NOTE In case, forgetting your password, please contact your sales agent for master password. Firmware Update Firmware update allows one to upgrade the DVR's firmware for improving system performance.

  • Page 12: Remote Firmware Update

    Logon To logon the DVR, please type in the IP address in the HTTP address box via Internet browser. By default, type "192.168.0.111" in the HTTP address box to access the logon page. Use default password "1111" for Administrator, password "2222" for Operator, and password "3333"...
  • Page 13 APPENDIX Appendix A. 4-ch DVR Alarm I/Os and RS-485 for PTZ Pin 1 Alarm input 1 Pin 2 Alarm input 2 Pin 3 Alarm input 3 Pin 4 Alarm input 4 Pin 5 Pin 6 ALARM NO (normal open) Pin 7 ALARM NC (normal close) Pin 8 Pin 9...
  • Page 14 Appendix D. Hard Disk Drive Support List Model HDD size WD5000AVDS 500GB WD5000AVVS 500GB WD10EVDS WD3200AVVS 320GB WD2500AVVS 250GB WD20EVDS ST3500418AS 500GB Appendix E. Supported USB-DVD/RW and Disk Manufacturer Model SONY DRX-S30U-W Lite-On eSAU108 Lite-On eTAU108 Lite-On eHAU424-01 Brand Specification Capacity Max Speed Manufacturer...
  • Page 15 Appendix G. Hard Disk Recording Table Approximate recording days and hours can also be found at Menu -> System -> HDD Info. Recording Quality Very high High Normal Picture size KB/Pic KB/Pic KB/Pic KB/Pic Days Days Days Days 17.1 Days Days Days 14.4...

  • Page 16: Specifications

    External alarm, video loss, stop recording, power recovering, motion detection, schedule, logon, HDD format Email Alarm notification with JPEG attachments Accessories Remote controller addressable up to 255 DVRs P/T/Z protocol LILIN MLP2 and Pelco RS-485 Keyboards None PIH-931 keyboard IR receiver None...
  • Page 17 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-DVR304CSE...
