Owner's Manual
3002164/02
OWNER'S GUIDE
M o d e l B G C 2 B a l a n c e d F l u e
( G C N o . 3 2 - 0 3 2 - 2 0 )

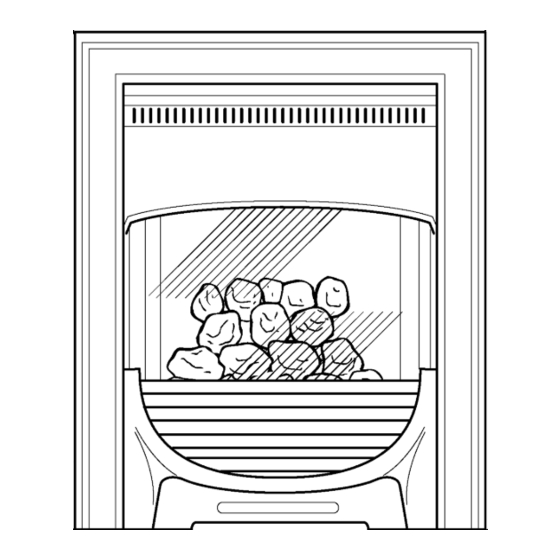

INSET BALANCED FLUE
GAS FIRE
(Manufacturer ref. 540)
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE
REPUBLIC OF IRELAND (IE) ONLY.
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference
For Service Phone 0845 960 5040
Manufactured exclusively for British Gas & Scottish Gas by Valor Heating, Wood Lane,
Erdington, Birmingham B24 9QP
This guide to be left with the owner
© Valor Heating
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valor BGC2
Summary of Contents for Valor BGC2
- Page 1 This guide is intended to help you care for your gas fire. Please read thoroughly before using and keep for future reference For Service Phone 0845 960 5040 Manufactured exclusively for British Gas & Scottish Gas by Valor Heating, Wood Lane, Erdington, Birmingham B24 9QP This guide to be left with the owner...
- Page 2 OWNER’S GUIDE Safety First. This fire is CE Approved and designed to meet the appropriate British Standards and Safety Marks. Quality and Excellence This fire has been manufactured to the highest standards of quality and excellence and was manufactured under a BS EN ISO 9001 quality system accepted by the British Standards Institute.
-
Page 3: Table Of Contents
OWNER’S GUIDE LIST OF CONTENTS SAFETY ..........................4 DIMENSIONS & GAS CONSUMPTION...............6 OPERATING YOUR FIRE ....................7 CLEANING YOUR FIRE ....................8 Metal parts........................8 To clean the inside of the window...................8 To Clean the Fuel Bed or Rear Ceramic Wall ..............9 Ceramic Coals and Rear Wall ..................9 SERVICING &... -
Page 4: Safety
OWNER’S GUIDE SAFETY IF YOU SMELL GAS DON’T SMOKE EXTINGUISH ALL NAKED FLAMES DON’T TURN ELECTRICAL SWITCHES ON OR OFF TURN OFF THE GAS SUPPLY AT THE METER OPEN DOORS AND WINDOWS TO GET RID OF THE GAS IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE DIRECTORY ✔... - Page 5 OWNER’S GUIDE ✔ ✔ ✔ ✔ Provide a suitable guard which complies with BS 6539 or 6778 for the protection of young children, the elderly and the infirm. Such a guard is also recommended for the protection of pet animals. Although this fire conforms to all the applicable standards, it is a heating appliance and certain parts of its surface will become hot.
-
Page 6: Dimensions & Gas Consumption
OWNER’S GUIDE DIMENSIONS & GAS CONSUMPTION Figure 1 Appliance dimensions Gas Consumption This appliance has a maximum gas at input its highest setting of 3.65kW (Gross) The maximum heat output is 2.7 kW. The minimum heat input is 1.13 kW. Page 6... -
Page 7: Operating Your Fire
OWNER’S GUIDE OPERATING YOUR FIRE The controls are shown in figure 2. To light the pilot • Push in the right control knob (the pilot lighting knob) and, while keeping it depressed, turn anticlockwise through the ignition position marked and up to the pilot position marked . -
Page 8: Cleaning Your Fire
OWNER’S GUIDE CLEANING YOUR FIRE Turn the fire off and allow it to cool before attempting any cleaning. Note that the fire will retain heat for some time after it has been turned off. Metal parts Clean the metal parts with a slightly damp cloth and then dry. -
Page 9: To Clean The Fuel Bed Or Rear Ceramic Wall
OWNER’S GUIDE • Replace the window making sure that the seal around the frame is not damaged or misplaced. Locate the channel at the top of the window over the top of the firebox opening. • Refit the three spring-loaded screws and washers. Tighten sufficiently to seal to the firebox. -
Page 10: Servicing & Maintenance
OWNER’S GUIDE • When refitting the fuel bed, make sure that the front of the coal locates behind the two brackets that are behind the bottom front panel of the firebox. See figure 6. Figure 6 Fuel bed & rear wall positions SERVICING &... -
Page 11: Servicing
OWNER’S GUIDE Servicing • If you require your fire to be serviced, please contact British Gas or Scottish Gas. Telephone 0845 960 5040 and please quote the following details which can be found on the label tied below the burner and behind the bottom hearth casting. Model and GC number Appliance serial number The following owner replaceable parts are available.
