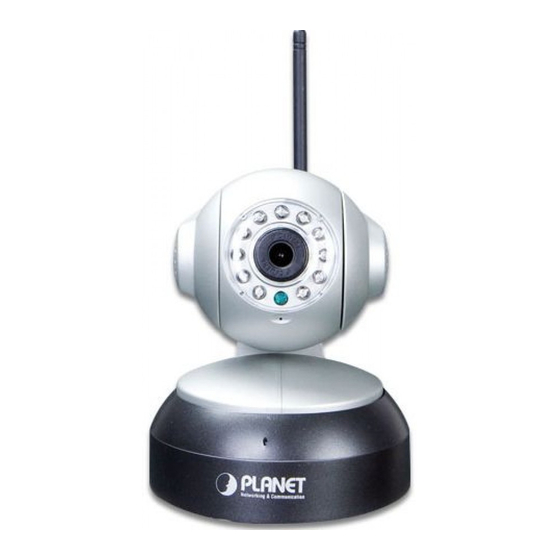

720p Wireless IR PT
IP Camera
►ICA-W7100

Advertisement

Table of Contents
loading

Related Manuals for Planet ICA-W7100

Summary of Contents for Planet ICA-W7100

  • Page 1 720p Wireless IR PT IP Camera ►ICA-W7100...
  • Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste; they should be collected separately. Revision User’s Manual of PLANET 720p Wireless IR PT IP Camera Model: ICA-W7100 Rev: 1.00 (December, 2014) Part No. EM-ICA-W7100_v1.0...

  • Page 4: Table Of Contents

    720P Wireless IR PT IP Camera ICA-W7100 Table of Contents Chapter 1. Product Introduction ..............6 1.1 Package Contents................6 1.2 Overview.....................6 1.3 Features....................8 1.4 Product Specifications.................9 Chapter 2. Hardware Interface ..............11 2.1 Physical Descriptions................ 11 2.2 Hardware Installation ................ 13 2.3 Initial Utility Installation..............
  • Page 5 720P Wireless IR PT IP Camera ICA-W7100 Appendix C: Planet DDNS Application............54 Appendix D: Configuring Port Forwarding Manually ........55 Appendix E: Power Line Frequency.............. 57 Appendix F: Troubleshooting & Frequently Asked Questions....... 58 Appendix G: Micro SD Card Compatibility............. 61...

  • Page 6: Chapter 1. Product Introduction

    1280 x 720 pixels (720p) at 30 frames per second. In addition, the ICA-W7100 comes with a 355-degree pan, 90-degree tilt, and a micro SD slot for storage. Along with the motion detection function and the function of the pan-tilt camera, you can safely and reliably observe larger areas.
  • Page 7 Surveillance Day & Night The ICA-W7100 brings the clearest vision at night by featuring 0.1 lux illumination and the 11 IR LEDs built around the lens. It offers color pictures both in the day time and night time with the built-in CMOS sensor supporting up to 10 meters. The ICA-W7100 is able to maintain clear images 24 hours a day.

  • Page 8: Features

    Users can set their area of interest to only detect motion in that area, thus greatly reduces the number of unnecessary alarms. The ICA-W7100 also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-W7100 remote site with a speaker connected.

  • Page 9: Product Specifications

    720P Wireless IR PT IP Camera ICA-W7100 Video / Audio ‧ H.264 video compression ‧ Simultaneous multi-stream support ‧ Max. resolution 720p at 30fps ‧ 2DNR to improve picture quality at low lux ‧ 2-way audio support with enhanced audio quality Network and Configuration ‧...
  • Page 10 720P Wireless IR PT IP Camera ICA-W7100 Microphone Internal microphone Audio Output Adjustable audio output gain Network and Configuration IEEE 802.3 10BASE-T Network Standard IEEE 802.3u 100BASE-TX IEEE 802.11 b/g/n IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, Network Protocol SMTP, 802.1X...

  • Page 11: Chapter 2. Hardware Interface

    720P Wireless IR PT IP Camera ICA-W7100 Chapter 2. Hardware Interface 2.1 Physical Descriptions Front View Infrared LED Lens Light Sensor Microphone Item Description Infrared LED Built-in IR LED x 11, effective up to 10 meters. Lens Fixed lens 3.6mm, F1.4...
  • Page 12 720P Wireless IR PT IP Camera ICA-W7100 damaging the card, please insert micro SD card before powering on IP cam. (Please refer to Appendix G: Micro SD Card Compatibility to select your SD card) Connecting to PC or hub/switch Please use CAT-5 cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub.

  • Page 13: Hardware Installation

    720P Wireless IR PT IP Camera ICA-W7100 Restoring the factory default setting will lose all the previous settings including IP address forever. User needs to run the IP Finder II program to search the device and configure it to let the device work properly again.
  • Page 14 720P Wireless IR PT IP Camera ICA-W7100 2. Install the included antenna. 3. Connecting an Ethernet cable. Connect the LAN cable on the camera to the network device (hub or switch). - 14 -...
  • Page 15 720P Wireless IR PT IP Camera ICA-W7100 4. Insert 4-pin Screw Terminal Block into DI/DO port. (optional) 5. Attaching the power supply (5V/2A) Plug the power adapter into a power source. After powering on, the camera will start to operate.

  • Page 16: Initial Utility Installation

    This chapter shows how to quickly set up your H.264 camera. The camera is with the default settings. However, the windows utility PLANET IP Finder II can help you find the networked camera quickly, and help you to configure some basic settings before you start advanced management and monitoring.
  • Page 17 720P Wireless IR PT IP Camera ICA-W7100 3. The “Welcome to the IP Finder II Setup Wizard” prompt will display on the screen and click “Next” to continue. 4. Please click “Next” to install with original settings, or you may click “Browse…” button to modify the install folder and then press “Next”...
  • Page 18 720P Wireless IR PT IP Camera ICA-W7100 5. Please click “Next” to install with original settings, or you may click “Browse…” button to modify the install folder and then press “Next” to continue. 6. Please click “Install” to start the installation.
  • Page 19 720P Wireless IR PT IP Camera ICA-W7100 7. Please click “Finish” to complete the installation and launch program immediately. 8. The search tool will run as shown in the picture below. - 19 -...
  • Page 20 “Search” to search again. A quick way to access IP camera is to left-click the mouse twice on a selected IP camera listed on “Device list” of PLANET IP Finder II. A login window of IE browser will be opened.
  • Page 21 720P Wireless IR PT IP Camera ICA-W7100 When you see the message, please click “Yes” to change the IP address. If user wants to set device as DHCP client, please refer to the steps below: Step 1. Select an IP cam from the device list Step 2.

  • Page 22: Setting Up Activex To Use The Internet Camera

    720P Wireless IR PT IP Camera ICA-W7100 (3) Remote Update: Device Update: User could update firmware via the function. Please select a device and click “Select File” to select correct firmware, and then click ”Start Update” to start to update firmware.

  • Page 23: Internet Explorer 7 For Windows Xp

    720P Wireless IR PT IP Camera ICA-W7100 Set up the first 3 items • Download the signed ActiveX controls • Download the unsigned ActiveX controls • Initialize and script the ActiveX controls not masked as safe to Prompt By now, you have finished your entire PC configuration for Internet Camera.

  • Page 24: Internet Explorer 7 For Windows Vista

    720P Wireless IR PT IP Camera ICA-W7100 • Automatic prompting for ActiveX controls By now, you have finished your entire PC configuration for Internet Camera. 2.4.3 Internet Explorer 7 for Windows Vista From your IE browser ”Tools” ”Internet Options…” ”Security”...
  • Page 25 720P Wireless IR PT IP Camera ICA-W7100 • Prompt “Initialize and script active controls not marked….” By now, you have finished your entire PC configuration for Internet Camera. - 25 -...

  • Page 26: Chapter 3. Web-Based Management

    720P Wireless IR PT IP Camera ICA-W7100 Chapter 3. Web-based Management This chapter provides setup details of the Internet Camera’s Web-based Interface. 3.1. Introduction The Internet Camera can be configured with your Web browser. Before configuring, please make sure your PC is under the same IP segment as Internet Camera.
  • Page 27 720P Wireless IR PT IP Camera ICA-W7100 3. Please click “Run” to run the ie.exe file. 4. Click “Next” to continue. - 27 -...
  • Page 28 720P Wireless IR PT IP Camera ICA-W7100 5. Please click “Next” to install with original settings, or you may click the “Browse…” button to modify the install folder and then press “Next” to continue. 6. Please click “Install” to start the installation.
  • Page 29 720P Wireless IR PT IP Camera ICA-W7100 7. Please click “Finish” to complete the installation 8. Refresh IE browser. Please click “Cancel” to skip the installation of ie.exe, and click ActiveX message to allow it to run. - 29 -...
  • Page 30 720P Wireless IR PT IP Camera ICA-W7100 9. Click “Run” to install the ActiveX control. 10. After the ActiveX control is installed and run, you are able to login the web management. Default login username and password are both admin.

  • Page 31: Live View

    720P Wireless IR PT IP Camera ICA-W7100 3.3 Live View Start-up screen is shown below whether you are an ordinary user or an administrator. Click to get into the Live View page. Streaming Type Set up the real time view stream type (mainstream/substream).

  • Page 32: Playback

    720P Wireless IR PT IP Camera ICA-W7100 3.4 Playback Click to get onto the Playback page. Record type: There are four types in the list: All types, Time record, Move detection record and I/O alarm record. Record date: Select the date of recording file.

  • Page 33: Video Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.5.1 Video Setting Video Format Video format is H.264. Note that user cannot change it. Main stream: 1280x720, 720x576, 640x480 Resolution Sub stream: 720x576, 640x480, 352x288, 320x240, 174x144 Defines the targeted frame rate of this profile. For example, set...

  • Page 34: Audio Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.5.2 Audio Setting Check the box to set audio function as enable; uncheck it to set Audio Enable audio function as disable. Audio Format User can set audio format as PCM/G711ALAW/G711ULAW. Audio Sampling Rate User can set audio sampling rate as 8000/16000.

  • Page 35: Osd & Mask Settings

    720P Wireless IR PT IP Camera ICA-W7100 based on the light condition. Power Frequency Frequency of power line: 50 or 60Hz. Mirror Turn the “Mirror” On or OFF. Rotate Turn the “Rotate” On or OFF. Enhancement function strengthens visibility under Enable WDR extremely bright or dark environments.

  • Page 36: Tcp/Ip Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.6.1 TCP/IP Setting IP camera supports DHCP and static IP. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP Obtain an IP address is assigned automatically.

  • Page 37: Wi-Fi Setting

    720P Wireless IR PT IP Camera ICA-W7100 Alternate DNS Set the second DNS server. Server If you log in the camera as an ordinary user, setting function will be not available. If you log in the camera as the administrator, you can perform all the settings provided within the device.
  • Page 38 720P Wireless IR PT IP Camera ICA-W7100 Here it shows all wireless access points found by this IP camera. Please note not all access points will be displayed at the same time. If the access point you expected to connect does not appear, you may have to click the “Refresh”...
  • Page 39 720P Wireless IR PT IP Camera ICA-W7100 channel number when the network type is “Adhoc”. Signal It shows the radio signal strength of the wireless access point. State It shows the state of the wireless connection. Obtain an IP Using DHCP, IP camera will get all the network parameters Address automatically.

  • Page 40: Port Management

    720P Wireless IR PT IP Camera ICA-W7100 Step 3: If the wireless AP has the encryption key, please input the correct password. If the wireless AP doesn’t have the encryption key, please keep it as blank. Step 4: Click the “Setup” button to save change.
  • Page 41 720P Wireless IR PT IP Camera ICA-W7100 Camera to connect to Internet with xDSL or cable connection. It can dial up your ISP and get a dynamic IP address. For more PPPoE and Internet configuration, please consult your ISP. It can directly connect to the xDSL; however, it should be set up in a LAN environment to program the PPPoE information first, and then connect to the xDSL modem.

  • Page 42: Ftp Setting

    Password The password is used to log into DDNS. Here is an example for DDNS settings: If you do not have a Planet DDNS account yet, please visit http://planetddns.com to register and set your domain name. 3.6.5 FTP Setting You may set up FTP parameters for further operation of Event Schedule. If users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 43: E-Mail Setting

    720P Wireless IR PT IP Camera ICA-W7100 FTP Enable To enable or disable the FTP service here. User Name Type the user name for the FTP server. Password Type the password for the FTP server. Server Type the server name or the IP address of the FTP server.

  • Page 44: Time Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.7.1 Time Setting User can set up the time setting of Internet camera. Synchronize it with PC or remote NTP server. Also, you may select the correct time zone of your country. Displays the date and time of the device.

  • Page 45: Motion Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.7.2 Motion Setting Use this menu to specify motion detection window and set the conditions for detection while observing a captured image. Alarm Enable To enable or disable the Alarm service here. Define the sensitivity value of motion detection. The higher value will Sensitivity be more sensitivity.

  • Page 46: Io Alarm Setting

    720P Wireless IR PT IP Camera ICA-W7100 3.7.3 IO Alarm Setting Use this menu to specify the triggered conditions of digital I/O. Alarm enable To enable or disable the Alarm service here. This trigger will be activated when digital input’s input signal is open Signal type or closed (select from dropdown list).

  • Page 47: Disk Management

    720P Wireless IR PT IP Camera ICA-W7100 3.7.4 Disk Management Users can implement local recording to the Micro SD card up to 32GB. This page shows the capacity information of the micro SD card. Users can also format the SD card through the setting page.

  • Page 48: User Management

    720P Wireless IR PT IP Camera ICA-W7100 User can select to record main stream or sub stream. If the sub Record Stream stream is selected, please set sub stream as enable. Record Schedule Setting The camera will start to record by schedule.

  • Page 49: System Update

    720P Wireless IR PT IP Camera ICA-W7100 3.8.1 System Update To update the firmware online, click “Select file…” to select the firmware. Then click “Remote Upgrade” to proceed. 1. Downloading of the firmware procedure cannot be interrupted. If the power and/or network connection are broken during the download procedure, it might possibly cause serious damage to the device.

  • Page 50: Version Info

    720P Wireless IR PT IP Camera ICA-W7100 3.8.5 Version Info This information shows the software version in the device. 3.8.6 Log Management User can check the System log, Alarm log and Operate log information of the device. 3.8.7 Local Setting Click the “Browse”...

  • Page 51: Alarm Events

    720P Wireless IR PT IP Camera ICA-W7100 3.9 Alarm Events This information shows the alarm message in the device. 3.10 Logout Click to logout the web management. - 51 -...

  • Page 52: Appendix A: Ping Ip Address

    720P Wireless IR PT IP Camera ICA-W7100 Appendix A: Ping IP Address The ping (or Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether Internet camera is installed or not, or if the IP address conflicts with any other device over the network.

  • Page 53: Appendix B: Bandwidth And Video Size Estimation

    720P Wireless IR PT IP Camera ICA-W7100 Appendix B: Bandwidth and Video Size Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements from your device.

  • Page 54: Appendix C: Planet Ddns Application

    720P Wireless IR PT IP Camera ICA-W7100 Appendix C: Planet DDNS Application Configuring PLANET DDNS steps: Step 1: Visit DDNS provider’s web site and register an account if you do not have one yet. For example: Register an account at http://planetddns.com...

  • Page 55: Appendix D: Configuring Port Forwarding Manually

    Manually set up the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. PLANET Wireless Router is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 56 720P Wireless IR PT IP Camera ICA-W7100 over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera.

  • Page 57: Appendix E: Power Line Frequency

    720P Wireless IR PT IP Camera ICA-W7100 Appendix E: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that Argentina 220V 50 Hz used in Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia...

  • Page 58: Appendix F: Troubleshooting & Frequently Asked Questions

    Do not connect device over a router. PLANET IP Finder II program cannot detect device over a router. If IP address is not assigned to the PC that is running PLANET IP PLANET IP Finder II program Finder II program, then PLANET IP Finder II program cannot find cannot find the device.
  • Page 59 720P Wireless IR PT IP Camera ICA-W7100 cable and configuration. Test the network interface by connecting a local computer to the Internet camera via a crossover cable. Make sure the Internet connection and setting are ok. Make sure to enter the IP address of Internet Explorer correctly. If the Internet camera has a dynamic address, it may have changed since you last checked it.
  • Page 60 720P Wireless IR PT IP Camera ICA-W7100 not work correctly. Ethernet switching hub can smooth the frame rate. Your connection to the device does not have enough bandwidth to Blank screen or very slow video support a higher frame rate for the streamed image size. Try when audio is enabled.

  • Page 61: Appendix G: Micro Sd Card Compatibility

    720P Wireless IR PT IP Camera ICA-W7100 Appendix G: Micro SD Card Compatibility The following are the micro SD cards recommended: Transcend SDHC class10 32GB class4 32GB SanDisk SDHC class10 32GB - 61 -...
