Planet Internet Camera ICA-110 User Manual

Planet technology ica-110/ica-110w internet camera user's manual
Hide thumbs Also See for Internet Camera ICA-110:
Table of Contents

Advertisement

Quick Links

See also: Manual
Internet Camera
ICA-110/ICA-110W
User's Manual
Version 1.1

Advertisement

Table of Contents
loading

Related Manuals for Planet Internet Camera ICA-110

Summary of Contents for Planet Internet Camera ICA-110

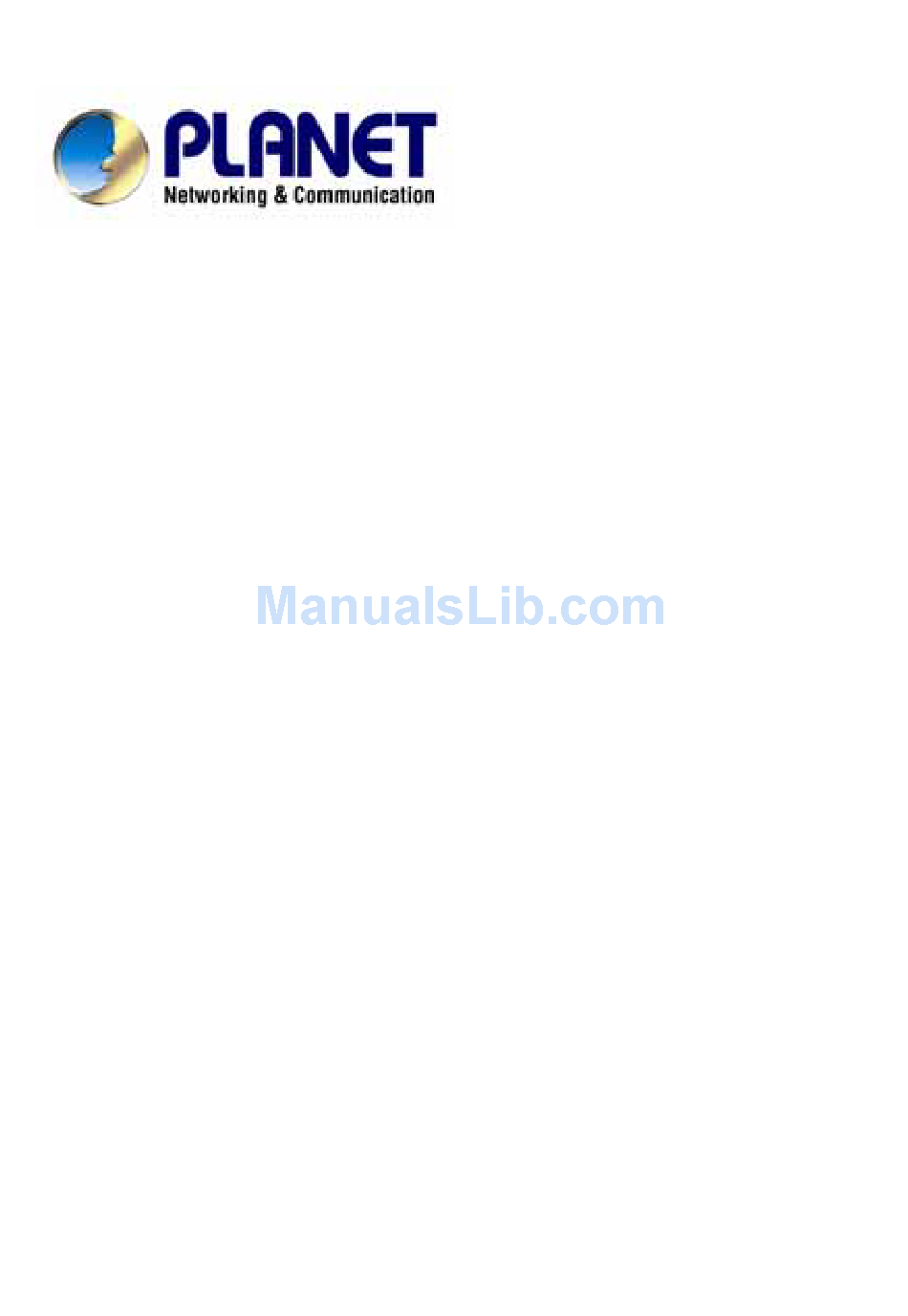

  • Page 1 Internet Camera ICA-110/ICA-110W User’s Manual Version 1.1...
  • Page 2 PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3 WEEE separately. Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks.

  • Page 4: Table Of Contents

    ABLE OF ABOUT THIS GUIDE ...6 INTRODUCTION ...7 EATURES AND NPACKING THE YSTEM EQUIREMENT HYSICAL ESCRIPTION HARDWARE INSTALLATION ...18 TTACHING THE ONNECTING THE TTACHING THE SECURITY ...20 APPLICATION OF THE CAMERA ...21 PPLICATIONS PPLICATION USING THE CAMERA ...25 ONFIGURATION YSTEM DMINISTRATION –...
  • Page 5 NSTALLATION ETTING TARTED SING ONFIGURING THE APPENDIX ...82 REQUENTLY B PING Y ROUBLE HOOTING DJUST NTERNET F. I/O T ERMINAL PECIFICATION LOSSARY OF ...54 ...59 ...62 ...67 YSTEM SKED UESTIONS IP A ...85 DDRESS ...86 ...90 ABLE AMERA OCUS ...93 PPLICATION ...95 ...98...

  • Page 6: About This Guide

    BOUT This manual provides instructions and illustrations on how to use your Internet Camera, includes: Chapter 1, Introduction, provides the general information on the camera. Chapter 2, Hardware Installation, describes the hardware installation procedure for the camera. Chapter 3, Security, explains the security feature of the camera.

  • Page 7: Introduction

    NTRODUCTION Thank you for purchasing the ICA-110W/ICA-110 Wireless/ Internet Camera, a camera device that can be connected directly to an Ethernet or Fast Ethernet network and also supported by the wireless transmission based on the IEEE 802.11g standard. Compared to the conventional PC Camera, the ICA-110/ICA- 110W features a built-in CPU and web-based solutions that can provide a cost-effective solution to transmit real-time high-quality video images and sounds for monitoring.

  • Page 8: Features And Benefits

    Features and Benefits Simple To Use The ICA-110/ICA-110W is a standalone system with built-in CPU requiring no special hardware or software such as PC frame grabber cards. The ICA-110/ICA-110W supports both ActiveX mode (for Internet Explorer users) and Java mode (for Internet Explorer and Netscape Navigator users).

  • Page 9: Broad Range Of Applications

    RS-485 Support The pin 5 & 6 of the I/O connectors are used for RS-485 data transmission. You can connect a special featured device (such as an external camera stand with rotation function) to meet your needs. When the external device is connected, you could configure the settings and control the device from the RS485 window of Web Configuration Utility.

  • Page 10: Unpacking The Package

    Unpacking the Package Unpack the package and check all the items carefully. In addition to this User’s manual, be certain that you have: One ICA-110 or ICA-110W (with external antenna) One Installation CD-ROM One Quick Installation Guide One AC power adapter suitable for your country’s electric power One Camera Stand One RJ-45 Ethernet Cable...

  • Page 11: System Requirement

    System Requirement Networking Local Area Network: 10Base-T Ethernet or 100Base-TX Fast Ethernet. Wireless Local Area Network: IEEE 802.11g Wireless LAN. Accessing the Camera For Web Browser Users Operating System: Microsoft® Windows® 98SE/ME/ 2000/XP CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is preferred) Memory Size: 128MB or above Resolution: 800x600 or above...

  • Page 12: Physical Description

    Physical Description This section describes the externally visible features of the ICA- 110/ICA-110W. Front Panel 2. Power LED 3. Internal MIC 1. Link LED 1. Link LED The Link LED is positioned on the right side of the ICA- 110/ICA-110W’s lens while facing the ICA-110/ICA-110W. It is located to the left of the Power LED.

  • Page 13: Power Led

    2. Power LED The Power LED is positioned on the right side of the ICA- 110/ICA-110W’s lens while facing the ICA-110/ICA-110W. A steady BLUE light confirms that the ICA-110/ICA-110W is powered on. 3. Internal MIC The built-in omni-directional microphone allows the camera to receive sound and voice.

  • Page 14: Reset Button

    Figure 1-3: Rear panel of ICA-110W 1. External Antenna The rotatable external antenna allows you to adjust its position to obtain the maximum signal. 2. Network Cable Connector The ICA-110/ICA-110W’s rear panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable).
  • Page 15 light up. Release the reset button and the Power LED will begin to flash, indicating the ICA-110/ICA-110W is changing to factory reset. When factory reset is completed, the SSID is set as “NULL String” (This default setting will let the ICA-110W connect to ANY access point on the infrastructure network).
  • Page 16 Screw Hole Bottom Panel Screw Hole...
  • Page 17 Screw Hole Located on the top/bottom panel of the camera, the screw hole is used to connect the camera stand onto the camera by attaching the screw head on the camera stand into the screw hole of the camera.

  • Page 18: Hardware Installation

    ARDWARE NSTALLATION Attaching the Camera to the Stand The ICA-110/ICA-110W comes with a camera stand (optional) with a swivel ball screw head that can be attached to the ICA- 110/ICA-110W's bottom screw hole. Attach the camera stand to ICA-110/ICA-110W station it for your application. There are three holes located in the base of the camera stand allowing...

  • Page 19: Connecting The Ethernet Cable

    Connecting the Ethernet cable Connect an Ethernet cable to the network cable connector located on the ICA-110/ICA- 110W’s rear panel, and then attach it to the network. Attaching the Power Supply Attach external supply to the DC power input connector located on ICA- 110/ICA-110W’s rear panel, and then connect it to your local power supply.

  • Page 20: Security

    To ensure the highest security and prevent unauthorized usage of the ICA-110/ICA-110W the Administrator has the exclusive privilege to access the System Administration for settings and control requirements to allow users the level of entry and authorize the privileges for all users. The ICA-110/ICA-110W supports multi-level password protection and access to the ICA- 110/ICA-110W is strictly restricted to define the user who has a “User Name”...

  • Page 21: Application Of The Camera

    PPLICATION AMERA The ICA-110/ICA-110W can be applied in wide variety of applications. With the built-in CPU, it can work as a standalone system that provides a web-based solution transmitting high quality video images and sounds for monitoring purposes. It can be managed remotely, accessed and controlled from any PC desktop over the Intranet or Internet via a web browser.

  • Page 22: Applications

    Applications Monitoring of local and remote places and objects such as construction sites, hospitals, amusement parks, schools and day-care centers through the use of a web browser. Capture single frame images from the IPView Pro application. Configure the camera to upload image or send email messages with a single frame image.

  • Page 23: Application Diagrams Of The Camera

    Application Diagrams of the Camera Home Applications...
  • Page 24 Office Applications...

  • Page 25: Using The Camera

    SING THE You can access and manage the ICA-110/ICA-110W through: 1) a web browser, and 2) the enclosed software IPView Pro. This chapter describes the Web Configuration Utility, and provides the instructions on using the camera with a web browser. Web Configuration Utility The ICA-110/ICA-110W must be configured through its built-in Web-based Configuration.
  • Page 26 Welcome Screen of the Configuration Utility After the default IP address is entered from the browser, the Internet Camera Welcome screen will appear with a still image. There will be three options to choose from to set-up and view your Internet Camera, including: View Video –...

  • Page 27: System Administration

    System Administration The Configuration Utility contains ten options in the top menu bar, including: System, Date/Time, Video/Audio, Network, Users, Trigger, Upload, RS-485, Information, Tools, and Home. TIP: Once you have changed the settings in each option, click Save to store the settings, or Cancel to abandon, or Refresh to reload the status.
  • Page 28 Location This field is used for entering a descriptive name for the location used by the camera. Date/Time The Date/Time window contains commands to set up the camera's time and date, providing correct information to the remote users who might be thousands of miles away from the camera’s location.
  • Page 29 TimeZone: Select the time zone for the region from the pull- down menu. (Please refer to the Appendix for the time zone selection table.) Synchronized with Time Server: Select this option and the time will be based on GMT setting. When selecting the option, you have to enter the required information in the following fields: •...

  • Page 30: Light Frequency

    Environment Select Outdoor or Indoor according to the installation location of the camera. Light Frequency Select 60HZ or 50HZ. Video Resolution Select the desired video resolution from three formats: 176x144, 320x240, and 640x480. The higher setting can obtain better quality; however, it will use more resource within your network.

  • Page 31: Frame Rate

    Compression Rate Select the desired compression rate from five levels: Lowest, Low, Medium, High, and Highest. The higher compression rate can increase the data transmission over the network; however, it will provide poorer image quality. Frame Rate Select the optimal setting depending on your network status. Please note that the higher setting can obtain better quality;...
  • Page 32 Brightness: Adjust the brightness level ranging from -64 to +64. Saturation: Adjust the colors level ranging from -64 to +64. Contrast: Adjust the contrast level ranging from -64 to +64. Sharpness: Adjust the sharpness level ranging from -6 to +6. Network The Network window contains commands that allow you to set up networking configuration of the camera.
  • Page 33 33 33...

  • Page 34: Dynamic Dns

    IP Assignment Use Static IP Address: You can select this option and enter the IP address directly. The default settings are: • IP Address – 192.168.0.20 • Subnet Mask – 255.255.255.0 • Default Gateway – 0.0.0.0 Obtain IP address automatically via DHCP: If your network uses the DHCP server, select this option.
  • Page 35 Wireless Interface Connection Mode: Use this option to determine the type of wireless communication for the camera. The available settings are Infrastructure mode and Adhoc mode. ESSID: The ESSID (Extended Service Set ID) is a unique identifier shared among all points in a wireless network environment.
  • Page 36 WEP Key: To enable WEP Encryption, you should decide the encryption format first by selecting the ASCII or HEX, and then input the WEP key. ASCII input format: ASCII format causes each character you type to be interpreted as an eight-bit value. All unaccented upper- and lower-case Western European characters that can be input through your keyboard's typing zone are valid.
  • Page 37 Users The Users window contains commands that allow the system administrator to assign legal users who are permitted to monitor the camera from the remote site. Administrator This field is used for entering the administrator password to access the settings. Enter the password in the Admin Password box, and then enter the same one again in the Confirm Password box to confirm the password.

  • Page 38: Add User

    Add User User Name: Enter the user name in this field (a maximum of 32 characters, printable ASCII code). A maximum of 32 users names are allowed; however, each users name must be different. Each user name can be used as a group given the password.
  • Page 39 Trigger The Trigger window contains the control settings for external device through the I/O port, and the settings required for e-mail. SMTP Server Address: To use the e-mail alert function, you must enter the mail server address in the field. Sender e-mail Address: Enter the e-mail Address of sender.

  • Page 40: Trigger Output

    Password: Enter the user password according to SMTP server setting in this field. Sending Interval: Enter the time interval to send next e-mail; the unit is by second. Sending Times: Enter the sending times for every e-mail alert. When completed, you can do a test to confirm the related settings by checking the Send a test e-mail item.

  • Page 41: Ftp Server

    Upload To upload the image to FTP server, you need to configure the related settings in the Upload window. FTP Server This field contains the following five basic settings for your FTP server. Host Address: The IP Address of the target FTP server. Port Number: The standard port number for the FTP server is Port 21, and it’s also the default setting.
  • Page 42 Password: Enter the user password according to FTP server setting in this field to login the FTP server. Directory Path: Enter an existing folder name in this field, and the images will be uploaded to the given folder. Operation To enable the FTP upload function, check the Enable upload video to FTP server option, and then configure the following settings according to your necessary.
  • Page 43 RS485 The RS485 window contains the control settings for external device through the I/O port. You have to configure the respective settings in this window. Select Enable to enable the function for your camera, and configure the related settings in the following fields. NOTE: When RS485 function is enabled, the system will provide the additional control buttons on the View Image screen (ActiveX mode and Java mode).
  • Page 44 Port setting Select the proper protocol setting from the two options: Popular protocol command setting or Custom protocol setting. Popular protocol command setting: Select the proper protocol from the pull-down menu. Click the Preset Position button to bring up a control window, which allows you to control the camera with more options.

  • Page 45: Firmware Version

    Custom protocol setting: Select this field allows you to configure the commands protocol manually. You can click Test to test each command that you have assigned. In the Name and Command String boxes, you can customize more buttons for your needs. Please note that the setting values in the Command String boxes should be from the connected external device (please refer to the manual of connected external device).

  • Page 46: Mac Address

    MAC Address This field displays the MAC Address of the camera. IP Address This field displays the IP Address of the camera. Tools The Tools window contains commands for restarting the camera and upgrading firmware. Reboot Do you really want to reboot this device? Click YES from this option, and you can restart the camera just like turning the device off and on and saved settings are retained.

  • Page 47: Factory Reset

    Factory Reset Do you really want to factory reset this device? Click YES from this option, and you can resume all factory default settings for the camera. NOTE: You have to configure the network settings again after a Factory Reset. LED Control The LED control allows user to setup the LED illumination as desired.

  • Page 48: View Video - Activex Mode

    Update Firmware This option allows you to update the firmware of the camera once you obtained a latest version of firmware. Click Browse to find the firmware file saved in your computer, and then click Update. NOTE: It will take a few minutes to update firmware. Please wait to complete the procedure;...
  • Page 49 Camera Name/Location: The Camera name and location will be displayed when the Camera Name/Location fields are entered in the System configuration page. Video/Audio: You can turn enable/disable the video and audio function by clicking the desired selection. Trigger: you can turn on/off the output device manually by clicking the OFF button.
  • Page 50 When you enable RS485 function of the camera, the system will provide the additional control buttons on the screen (as show below). You can use the Up, Down, Left, and Right buttons to move the camera’s lens to your desired position. Click the Home button to return to the default home position.

  • Page 51: View Image - Java Mode

    If you select Custom protocol setting in RS485 configuration window (see page43), you can use the Custom Command pull- down menu to select one position, then click Go To to move the camera’s lens to your desired position. NOTE: In the View Image screen (ActiveX mode and Java mode), Preset Position will be unavailable when you select to use Custom Command.
  • Page 52 Camera Name/Location: The Camera name and location will be displayed when the Camera Name/Location fields are entered in the Web Configuration Utility. Video/Audio: You can turn enable/disable the video and audio function by clicking the desired selection. Trigger: you can turn on/off the output device manually by clicking the OFF button.
  • Page 53 NOTE: 1. Please refer to the appendix on how to install ActiveX, including 1.) install to the Web Server, and 2.) install to your Local PC. 2. The administrator has the authority to set the upload video function through the setting in the Upload option of Configuration Utility.

  • Page 54: Ipview Pro

    This chapter describes IPView Pro, which is a powerful software application designed with a user-friendly interface for ease of control and navigation requirements. Installation Step 1 Insert the CD-ROM into the CD-ROM drive to initiate the auto- run program. The menu screen will appear as below: Click the IPView Pro item to activate the InstallShield Wizard.
  • Page 56 Step 2 Click Next in the welcome screen. Step 3 Read and accept the License Agreement; then, click Yes.
  • Page 57 Step 4 Choose the destination location. If no specific requirement, leave the default setting and click Next. Step 5 The InstallShield Wizard starts to install the software, and the progress bar indicates the installation is proceeding.
  • Page 58 Step 6 If you use Windows® 2000/XP, it will appear a Digital Signature warning screen. Click Continue Anyway (Windows® XP) or Yes (Windows® 2000). Windows® XP Windows® 2000 Step 7 Click Finish to complete the installation.

  • Page 59: Getting Started

    Getting Started This section describes the User Interface of IPView Pro, with detailed procedures for using the application. To launch IPView Pro, click Start > Programs > PLANET > IPView Pro > IPView Pro. The main screen will appear as below: NOTE: IPView Pro requires the system’s resolution setting up to 1024x768.

  • Page 60: Item Feature

    Item Feature Item Date/Time Status Mode Window View Window View Mode Buttons Description Show current date/time. Show the camera’s status in this window. Click the Change Status Mode button ( the right lower corner of the window to change the display mode: Camera list mode Show the camera’s view in this window.
  • Page 61 Key Lock Click to lock/unlock the camera. When locked, Button the user cannot operate any camera. Power Button Click to exit or minimize IPView Pro. Record Record video clip of the selected camera and save Button it in the computer. The storage position can be configured in System Configuration.

  • Page 62: Using Ipview Pro

    Using IPView Pro Adding a Camera To add a camera: 1. Click the System Configure button to enter the System Configuration. If you are not sure of the camera’s IP address, you can click Search to search the available camera(s) within the network.
  • Page 63 2. Select the camera you want by highlighting it, and then click Add Camera. Click the Add Camera button. 3. Click Save, and then click the System Configure button to return to View Window. The selected camera’s video will be displayed now.
  • Page 64 Alternately, you can add a camera by entering the its IP address directly: 4. Select the Input IP tab. Click the Add Camera 5. Enter the camera’s IP address (default: 192.168.0.20) and Port (default: 80), and then click Add Camera. 6.
  • Page 65 Removing a Camera To remove the camera from the list: camera elect the you want to remove. 2. Click Delete Camera. Viewing a Camera From the View Modes of the panel, you can select one-camera mode or other modes to display your video. IPView Pro allows a maximum of 16 cameras for viewing.

  • Page 66: Recording Video

    Video Recording IPView Pro allows you to record the video clip and save it in your computer through the following methods: Manual Record, Schedule Record, and Motion Record. When you click the Record button and select Manual Record, it will start recording. Click the button again to stop. If you select Schedule Record or Motion Record, the system will record the video clip according to the settings in System Configuration.

  • Page 67: Configuring The System

    Configuring the System Clicking the System Configure button on the panel allows you to configure the system settings, and the System Configuration Screen will appear in the View Window as shown below. Once configured, click Save to save the settings, and then click the System Configure button again to exit configuration.

  • Page 68: Camera Configuration

    Camera Configuration In this field, you can add/delete the camera (as described in the previous section). Also, you can configure the following settings: Web Configuration In the left column, selecting the Web Configuration item will launch the Web Configuration Utility in View Window. You can configure these settings according to the description in Chapter 5, Using the Camera.
  • Page 69 Motion Configuration-1 The Motion Configuration-1 item provides the commands for motion detection control. Before configuring, you should select one camera from the pull-down menu. Select Custom region. Detect Region: • Full picture – When you select this option, the camera will monitor the whole area.
  • Page 70 recording automatically. You can set multiple areas in the view screen. Click Delete Region to remove the area selected. Click Clear All Region to remove all areas in the view screen. Sensitivity Level: Move the slide bar to adjust the sensitivity level for detecting motion to record video.
  • Page 71 Send e-mail: When this option is checked, click the Mailing Configuration in the left column to enter the required information (see the following section). Play music: Play sound while there is a motion detected in detection area. Tools The Tools item allows you to reset the camera to factory default setting or upgrade the firmware.

  • Page 72: Mailing Configuration

    Reset: Restore the original setting of your camera. Do you really want to reset this device? Click Yes in the pop-up dialog box to confirm. Factory Reset: Restore the factory default settings of the camera. Do you really want to factory reset this device? Click Yes in the pop-up dialog box to confirm.
  • Page 73 Mail Server: Enter the mail server address that is used to send your e-mail. Mail From/To: Enter the sender’s/receiver’s e-mail address. Subject: Enter the title of the e-mail. User Name/Password: Enter the user name/password according to mail server setting to login the mail server. Interval Time: Enter a number in this box to setup the time (in second) to send e-mail regularly.

  • Page 74: Proxy Server

    Proxy Server Check the Proxy Server option and enter the required settings in the Address and Port boxes to enable and use the Proxy Server function.

  • Page 75: Recording Configuration

    Recording Configuration In this field, you can configure the storage settings. Log Storage: • Reserved HDD Space For MS-Windows OS – You can reserve 500 MB to 1000 MB hard disk space for the program. • Each Recording File Size – If the recorded video files reach the file size limit, video images will be recorded into another file automatically.
  • Page 76 • Storage List – The destination folder to save the recorded video file can be specified here. Click Modify to change the current path setting; click Add to add a new destination folder; click Delete to remove a selected path setting.
  • Page 77 Week Mode: First, select the camera desired from the pull- down menu. Then, setup the time in the Start/Stop fields, and select the weekday from the buttons. Click Add to add the recording schedule to the list. Click Save to save the settings.
  • Page 78 Weekday buttons. Others When multiple cameras connected, this option allows the system to display these views as the main view in circles according to your time settings. The range of Time interval of scan is from 1 to 20 seconds.

  • Page 79: Log List

    Log List This filed displays the user(s) information, which includes the Date, MAC address, and the brief description of events.
  • Page 80 About This filed provides information of the software application.

  • Page 82: Appendix

    PPENDIX A Frequently Asked Questions Internet Camera Features Q: What is an Internet Camera? A: The Internet Camera is a standalone system connecting directly to an Ethernet or Fast Ethernet network and supported by the wireless transmission based on the IEEE 802.11g standard. It is different from the conventional PC Camera, the Internet Camera is an all-in-one system with built-in CPU and web-based solutions providing a low cost solution that can transmit high...
  • Page 83 overall performance of the transmission speed will slow down when many users are logged on. Q: What algorithm is used to compress the digital image? ICA-110/ICA-110W utilizes JPEG image compression technology providing high quality images for users. JPEG is adopted since it is a standard for image compression and can be applied to various web browser and application software without the need to install extra software.
  • Page 84 Q: What network cabling is required for the ICA-110/ICA- 110W? A: The ICA-110/ICA-110W uses Category 5 UTP cable allowing 10 Base-T and 100 Base-T networking. Q: Can the ICA-110/ICA-110W be setup as a PC-cam on the computer? A: No, the ICA-110/ICA-110W is an Internet Camera used only on Ethernet and Fast Ethernet network and supported by wireless transmission.

  • Page 85: B Ping Your Ip Address

    B PING Your IP Address The PING (Packet Internet Groper) command can determine whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It can also provide a very useful tool to confirm if the IP address conflicts with the INTERNET CAMERA over the network.

  • Page 86: C Trouble Shooting

    C Trouble Shooting Q: I cannot access the ICA-110/ICA-110W from a web browser. A1: The possible cause might be the IP Address for the ICA- 110/ICA-110W is already being used by another device. To correct the possible problem, you need to first disconnect the ICA-110/ICA-110W from the network.
  • Page 87 A3: Other possible problems might be due to the network cable. Try replacing your network cable. Test the network interface of the product by connecting a local computer to the unit, utilizing a standard Crossover (hub to hub) Cable. If the problem is not solved the ICA-110/ICA-110W might be faulty.
  • Page 88 Q: Why does the ICA-110/ICA-110W work locally but not externally? A1: Might be caused from the firewall protection. Need to check the Internet firewall with your system administrator. A2: The default router setting might be a possible reason. Need to double check if the configuration of the default router settings is required.
  • Page 89 Q: There is poor image quality, how can I improve the image? A1: A probable cause might be the incorrect display properties configuration for your desktop. You need to open the Display Properties on your desktop and configure your display to show at least 65’000 colors for example at least 16-bit.

  • Page 90: D Time Zone Table

    D Time Zone Table...

  • Page 92: E Adjust Internet Camera Focus

    E Adjust Internet Camera Focus To adjust the focus of the lens, you need to turn the lens slowly in either clockwise or anti-clockwise direction until the desired image appears. DO NOT over turn the lens in either of the directions, as it will be out of focus.

  • Page 93: I/O Terminal Application

    F. I/O Terminal Application Typically used in association with programming scripts for developing applications for motion detection, event triggering, alarm notification via e-mail, and a variety of external control functions. The 6-pin I/O Terminal Block is located on the rear panel and provides the interface to: a photo-coupled switch output, a photo-coupled input, and RS-485 interface.
  • Page 94 Interface Schematic device (active control device) has independent 1. Input power supply. Output device (load) is driven by external power supply. RS485 Interface Load PTZ Camera...

  • Page 95: G Specification

    G Specification Video specification Resolution: Sensor: Lens: Lens mounting: Gain control: Exposure: White Balance: Image (Video Setting) Compression: Image frame rate: Compression rate: Frame rate: Video resolution: Audio MIC Input: Compression: 640 x 480 pixel Color CMOS sensor f: 6.0 mm, F: 1.8 Fixed board lens, CS-mount type Automatic Automatic...
  • Page 96 Hardware Interface LAN Connector: Wireless LAN: (ICA-110W) Communication protocol: CPU: RAM: Flash ROM: Power Supply: Power consumption: LED Indicator: I/O port pin assignment: Input: Output: RS-485: Software One RJ-45 port, 10/100M auto- sensed, Auto-MDIX Built-in 802.11g WLAN HTTP, FTP, TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, DDNS, SMTP, UPnP ADMtek 5120...

  • Page 97: Operating Environment

    Browser: Application Software: OS supported: Operating environment Operating temperature: Storage temperature: Humidity: FCC Class B, CE Class B, VCCI Class B Internet Explorer 5.0 or above; Netscape 6.0 or above IPView Pro Microsoft Windows 98SE/ME/ 2000/XP C ~ 40 C ~ 50 5% ~ 95%, non-condensing...

  • Page 98: I Glossary Of Terms

    I Glossary of Terms NUMBERS 10BASE-T 10BASE-T is Ethernet over UTP Category III, IV, or V unshielded twisted-pair media. 100BASE-TX 100BASE-T is called 100BASE-TX. An IEEE standard for wireless local area networks. It 802.11g offers transmissions speeds at up to 54 Mbps in the 2.4- GHz band.
  • Page 99 Address Resolution Protocol. ARP is a protocol that resides at the TCP/IP Internet layer that delivers data on the same network by translating an IP address to a physical address. Audio Video Interleave, it is a Windows platform audio and video file type, a common format for small movies and videos.
  • Page 100 addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses.
  • Page 101 The most popular LAN communication technology. Ethernet There are a variety of types of Ethernet, including 10 Mbps (traditional Ethernet), 100 Mbps (Fast Ethernet), and 1,000 Mbps (Gigabit Ethernet). Most Ethernet networks use Category 5 cabling to carry information, in the form of electrical signals, between devices. Ethernet is an implementation of CSMA/CD that operates in a bus or star topology.
  • Page 102 Short for hexadecimal refers to the base-16 number system, which consists of 16 unique symbols: the numbers 0 to 9 and the letters A to F. For example, the decimal number 15 is represented as F in the hexadecimal numbering system. The hexadecimal system is useful because it can represent every byte (8 bits) as two consecutive hexadecimal digits.
  • Page 103 format used to route the information. Your Internet service provider controls the IP address of any device it connects to the Internet. The IP addresses in your network must conform to IP addressing rules. smaller LANs, most people will allow the DHCP function of a router or gateway to assign the IP addresses on internal networks.
  • Page 104 Local Area Network a computer network that spans a relatively small area sharing common resources. Most LANs are confined to a single building or group of buildings. Network Address Translator generally applied by a router, that makes many different IP addresses on an internal network appear to the Internet as a single address.
  • Page 105 NWay Protocol A network protocol that can automatically negotiate the highest possible transmission speed between two devices. PING Packet Internet Groper, a utility used to determine whether a specific IP address is accessible. It functions by sending a packet to the specified address and waits for a reply.
  • Page 106 for transferors the medium include token-passing and Carrier Sense Multiple Access with Collision Detection (CSMA/CD),implemented as token-ring, ARCNET, FDDI, or Ethernet. The Router Information Protocol (RIP),a Protocol/Internet Protocol (TCP/IP) suite, forwards packets from one network to another using the same network protocol.
  • Page 107 In LANs, a station consists of a device that can Station communicate data on the network. In FDDI, a station includes both physical nodes and addressable logical devices. Workstations, single-attach stations, dual- attach stations, and concentrators are FDDI stations. In TCP/IP, the bits used to create the subnet are called Subnet mask the subnet mask.
  • Page 108 The upper-layer protocol refers to Application Layer protocols such as FTP,SNMP, and SMTP. User Name The USERNAME is the unique name assigned to each person who has access to the LAN. It is a program that performs a specific task. Utility Unshielded twisted-pair.
