- Page 1 2 Mega-Pixel Wired / Wireless IP Camera ICA-HM132 / ICA-HM136 ICA-HM316 / ICA-HM316W / ICA-3250V Quick Installation Guide...
-
Page 2: Table Of Contents
1.1 Before Installation ................3 1.2 System Requirements ................3 Chapter 2. Physical Description and Installation ..........4 2.1 ICA-HM132 2 Mega-Pixel 20M IR Vari-Focal Dome IP Camera ....4 2.1.1 ICA-HM132 Package Content ............4 2.1.2 ICA-HM132 Physical Details ............4 2.1.3 ICA-HM132 Installation ............... -
Page 3: Chapter 1. Introduction
The video can be stored in the SD card and playback remotely (For ICA-HM132 / ICA-HM136 / ICA-3250V only). With user friendly interface, it is an easy-to-use IP camera which is designed for security application. -
Page 4: Chapter 2. Physical Description And Installation

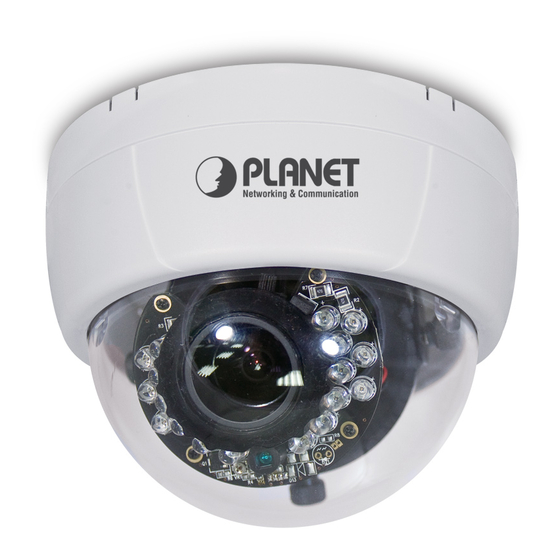

Chapter 2. Physical Description and Installation 2.1 ICA-HM132 2 Mega-Pixel 20M IR Vari-Focal Dome IP Camera 2.1.1 ICA-HM132 Package Content IP Camera Unit x 1 Power Adapter x 1 Screw package x 1 User’s Manual CD-ROM x 1 Quick Installation Guide x 1 2.1.2 ICA-HM132 Physical Details... -
Page 5: Ica-Hm132 Installation
9. Line out (audio out) Connect a loud speaker to the network camera. This is for voice alerting and two-way audio. 2.1.3 ICA-HM132 Installation 1. Fix IR camera to desired location with stand. 2. Plug-in Ethernet Cable into RJ-45 connector (LAN port). -
Page 6: Ica-Hm136 2 Mega-Pixel 20M Ir Vandal Proof Dome Ip Camera
2.2 ICA-HM136 2 Mega-Pixel 20M IR Vandal Proof Dome IP Camera 2.2.1 ICA-HM136 Package Content Camera unit x 1 Power Adapter x 1 Accessories Kit x 1 User’s Manual CD-ROM x 1 Quick Installation Guide x 1 2.2.2 ICA-HM136 Physical Details 1. -
Page 7: Ica-Hm136 I/O Control Instruction
2.2.3 ICA-HM136 I/O Control Instruction I/O terminal connector – used in application, for e.g., motion detection, event triggering. 1. Digital Input: (GND+Alarm) An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. -
Page 8: Ica-Hm136 Installation
Contacts IN AUDIO OUT MIC IN ALARM IN AUDIO OUT VIDEO OUT MIC IN VIDEO OUT 2) Relay Output Connection ALARM IN AUDIO OUT MIC IN ALARM IN AUDIO OUT VIDEO OUT MIC IN VIDEO OUT ALARM IN AUDIO OUT MIC IN ALARM IN AUDIO OUT... -
Page 9: Ica-Hm316 2 Mega-Pixel Outdoor Ir Poe Ip Camera
2.3 ICA-HM316 2 Mega-Pixel Outdoor IR PoE IP Camera 2.3.1 ICA-HM316 Package Content IP Camera Unit x 1 Power Adapter x 1 Screw Package x 1 Stand x 1 User’s Manual CD-ROM x 1 Quick Installation Guide x 1 2.3.2 ICA-HM316 Physical Details 1. -
Page 10: Ica-Hm316 Installation
4. Relay output (COM+N.O.) / (COM+N.C.) An output to relay switch, for example: LEDs, Sirens, etc. 5. Digital Input/Alarm Input 1) GND (Ground): Initial state is LOW 2) Alarm: Max. 50mA, DC 3.3V 6. Relay Output 1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 110~240VAC 2) COM: (Common) 3) N.O. -
Page 11: Ica-Hm316W 2 Mega-Pixel 11N Outdoor Ir Ip Camera
2.4 ICA-HM316W 2 Mega-Pixel 11n Outdoor IR IP Camera 2.4.1 ICA-HM316W Package Content IP Camera Unit x 1 Power Adapter x 1 Screw package x 1 Stand x 1 5dbi Antenna x 1 User’s Manual CD-ROM x 1 Quick Installation Guide x 1 2.4.2 ICA-HM316W Physical Details 1. -
Page 12: Ica-Hm316W Installation
4. Relay output (COM+N.O.) / (COM+N.C.) An output to relay switch, for example: LEDs, Sirens, etc. 5. Digital Input/Alarm Input 1) GND (Ground): Initial state is LOW 2) Alarm: Max. 50mA, DC 3.3V 6. Relay Output 1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 110~240VAC 2) COM: (Common) 3) N.O. -
Page 13: Ica-3250V Full Hd Outdoor Ir Poe Ip Camera
2.5 ICA-3250V Full HD Outdoor IR PoE IP Camera 2.5.1 ICA-3250V Package Content IP Camera Unit x 1 Power Adapter x 1 Screw Package x 1 Female to Female RJ-45 connector x 1 User’s Manual CD-ROM x 1 Quick Installation Guide x 1 2.5.2 ICA-3250V Physical Details 1. -
Page 14: Ica-3250V Installation
4. Power Jack The input power is DC 12V. To ensure maximum compatibility, use only the power adapter that came with your product. Otherwise, the product may be damaged. Note 5. MIC in (audio in) Connect a microphone to the network camera. 6. - Page 15 4. Connect Video BNC connector to a TV set if necessary (to check camera viewing angle and focus). 5. This IP camera is equipped with an external vari-focal lens controller. Please adjust "ZOOM" and then "FOCUS" as following picture until the image gets clear. ZOOM FOCUS 6.
-
Page 16: Chapter 3. Camera Windows Utility
Camera is with the default settings. However to help you find the networked camera quickly the windows utility (PLANET IP Installer) can search the cameras in the network that shall help you to configure some basic setting before you started advanced management and monitoring. - Page 17 4. The GUI of IP Installer is as follows (Default IP: 192.168.0.20). IP Installer will search all IP Cameras connected on LAN. The user can click “Search Device” to search again. Click one of IP Cameras listed on the left side of IP Installer, then the network configuration of that IP Camera will be listed on the right side.
- Page 18 To Change PC IP addresses: Control Panel Network Connections Local Area Connection Properties Internet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera IP subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...
- Page 19 If the user name and password are input correctly, the following web page will be displayed.
-
Page 20: Further Information
Further Information This guide is used to help you startup your IP Camera settings. It is also recommended to check the user manual in CD disk for more details of the system and user configuration.
