Town & Country Fireplaces T120.RHKIT Installation And Operation Instructions Manual

Optional remote heat kit important: these instructions are to remain with the homeowner for wood fireplaces

Advertisement

120913-8
AND OPERATING INSTRUCTIONS
THESE INSTRUCTIONS ARE TO REMAIN WITH THE
OPTIONAL
REMOTE HEAT KIT
FOR WOOD FIREPLACES
T120.RHKIT
INSTALLATION
IMPORTANT:
HOMEOWNER
T120.RHKIT
REMOTE
BLOWER
ASSEMBLY
HEAT OUTLET
DUCT
5055.T120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T120.RHKIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Town & Country Fireplaces T120.RHKIT

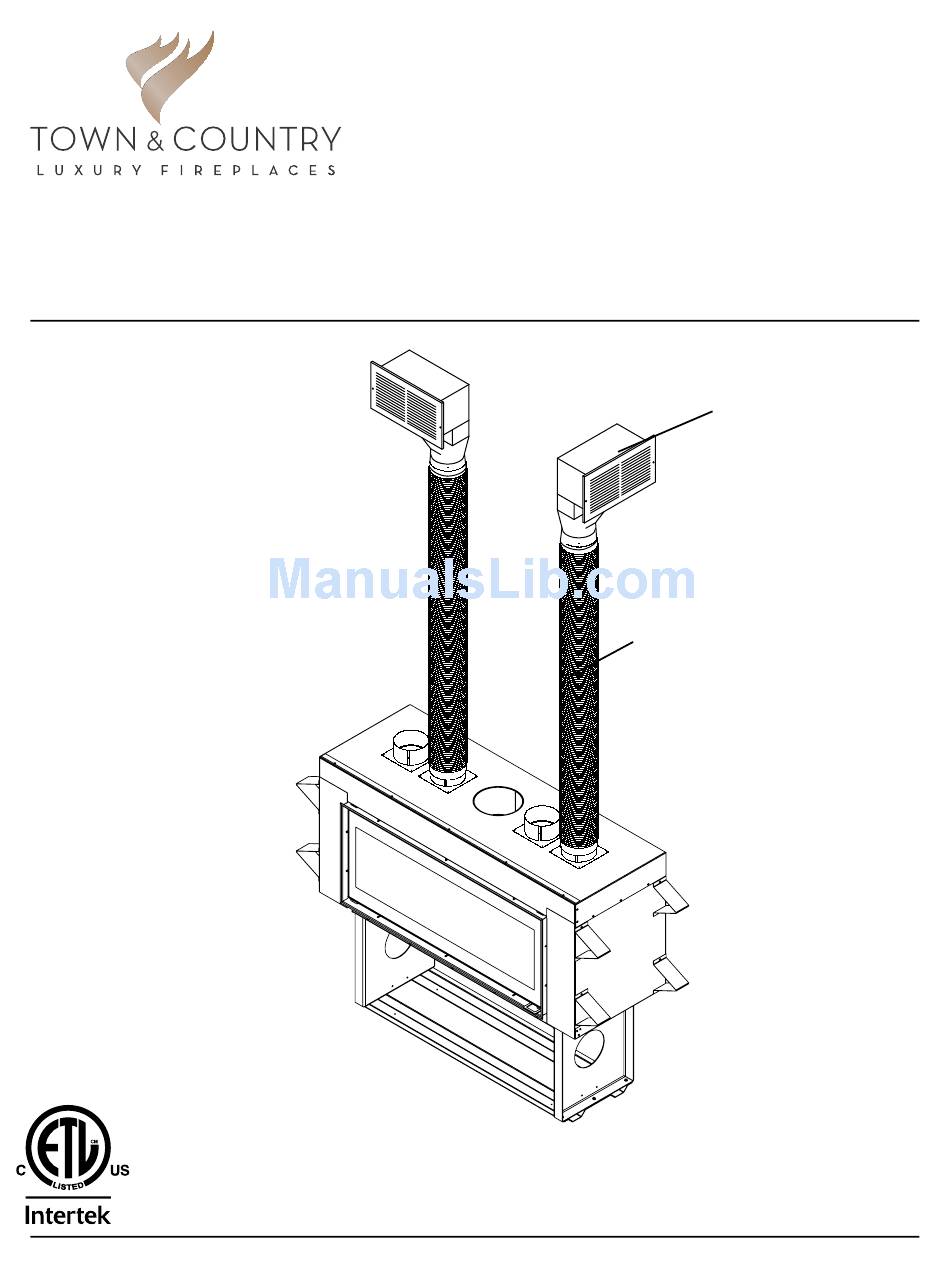

  • Page 1 OPTIONAL REMOTE HEAT KIT FOR WOOD FIREPLACES T120.RHKIT INSTALLATION AND OPERATING INSTRUCTIONS REMOTE BLOWER ASSEMBLY HEAT OUTLET DUCT IMPORTANT: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOMEOWNER 120913-8 T120.RHKIT 5055.T120...
  • Page 2 5..BLOWER CASING FACE PLATE....9144 6..BLOWER FAN BRACKET ......9146 ..REMOTE BLOWER ASSEMBLY 7..BLOWER WALL BRACKET ......9147 ..... (Items 5 to 10) ......TC36.9141 8..REMOTE BLOWER BOX ....TC36.9141 9..BLOWER ..........5024.65 T120.RHKIT 120913-28...
  • Page 3: T120.Rhkit

    MAXIMUM CHIMNEY INSTALLTIONS DUCT LENGTH OF 20 FT. NOT SHOWN ROUND DUCT (6” TYPE ”B”) RECTANGULAR DUCT (10” X 3 1/4”) MAXIMUM DUCT LENGTH OF 20 FT. T120.RHKIT 120913-28...
  • Page 4: Blower

    Fig. #3 2) Remove the insulation directly below the opening down to the heat shield. Fig. #2 FLAPPER BOX INSTALLED 4) Attach the Duct Adapter Plate to top of unit using 4 screws. Fig. #4 INSULATION (REMOVED) T120.RHKIT 120913-28...
  • Page 5: Transition Boot

    Fasten in place with screws and seal with aluminium foil tape. 7) Locate the make-up air inlet in a desired location in the chase wall. 8) Attach fi nishing grills over both inlet and outlet using the screws provided. T120.RHKIT 120913-28...
  • Page 6: Junction Box

    National Electrical Code, ANSI/NFPA 70 and cover plate. The junction box should be (Latest Edition). mounted in a convenient location away from the fi replace. Fig. #10 BLOWER SPEED 120 VOLTS 60 Hz CONTROL 0.7 AMPERES G (green) L1 (white) L2 (black) T120.RHKIT 120913-28...
  • Page 7 Continue to rotate the knob clockwise to reduce the blower speed. To turn the blower OFF, rotate the control knob counter-clockwise until the switch clicks off. Fig. #11 CONTROL KNOB T120.RHKIT 120913-28...
  • Page 8 TECHNICAL SUPPORT: 1-250-748-1184 Web site: www.townandcountryfi replaces.net 2974 Allenby Road, Duncan, BC Canada V9L 6V8 T120.RHKIT 120913-28...
