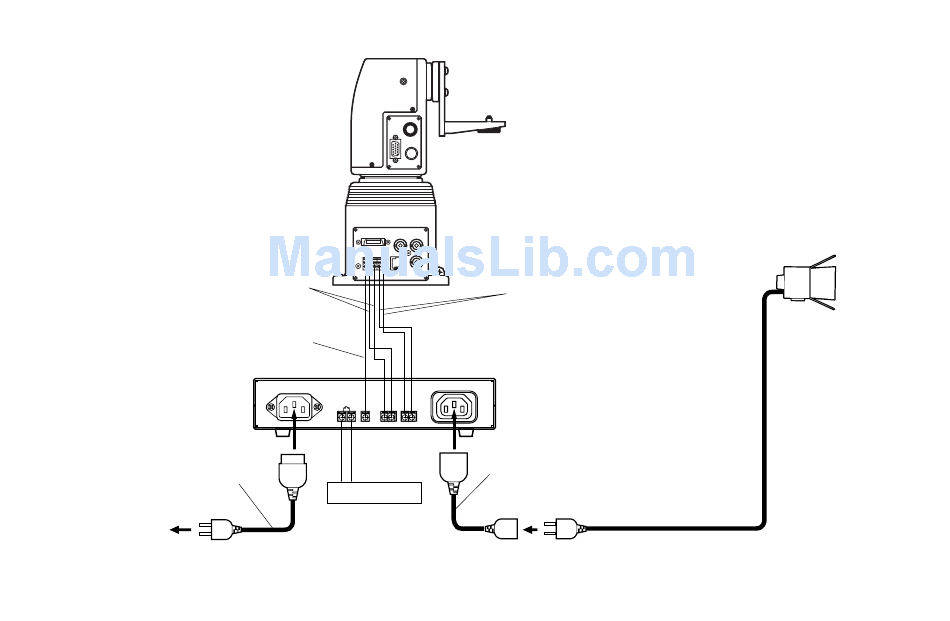

• For a detailed description of con-
necting the individual devices,
refer to their Operating
Instructions.
• Connect the supplied AC cable to
the AC 120V inlet. Plug the AC
cable to an AC outlet, and press
the power switch on the adapter
to the ON position.
Lamp Control Cable
(Nominal cross section 0.3 mm
more, to be locally purchased)
* Unnecessary if lamp control is
not needed.
Option switch control cable
(Nominal cross section 0.3 mm
more, to be locally purchased)
* Unnecessary if option switch
control is not needed.
AC Cable
(supplied)
120V AC
60Hz
Pan/tilt Head
AW-PH300
or
2
or
2
LAMP AC OUT
AC IN
OPTION SW
OPTION SW
LAMP
DC 15V
CONTROL OUT
CONTROL IN
CONTROL
OUT
OP
C
S
+
100V 500W
Option Unit
DC cable
(Nominal cross section 1.25 mm
more, to be locally purchased)
Locally purchase an AC plug conversion
cable that matches the halogen lamp AC
plug.
* Unnecessary if no halogen lamp is con-
nected.
-7-
Halogen Lamp
2
or
