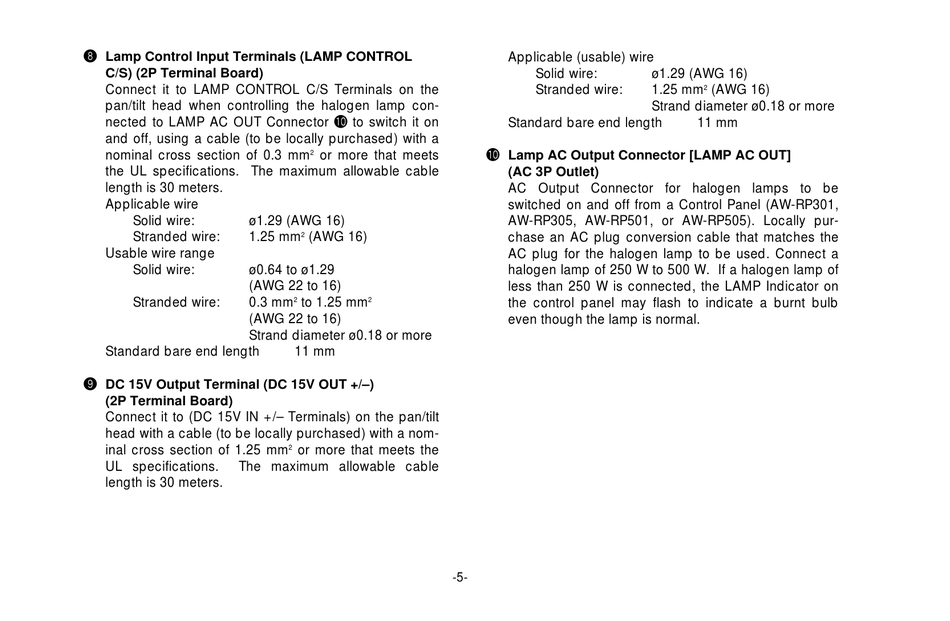

i Lamp Control Input Terminals (LAMP CONTROL
C/S) (2P Terminal Board)
Connect it to LAMP CONTROL C/S Terminals on the
pan/tilt head when controlling the halogen lamp con-
nected to LAMP AC OUT Connector !0 to switch it on
and off, using a cable (to be locally purchased) with a
nominal cross section of 0.3 mm
the UL specifications. The maximum allowable cable
length is 30 meters.
Applicable wire
Solid wire:
ø1.29 (AWG 16)
Stranded wire:
1.25 mm
Usable wire range
Solid wire:
ø0.64 to ø1.29
(AWG 22 to 16)
Stranded wire:
0.3 mm
(AWG 22 to 16)
Strand diameter ø0.18 or more
Standard bare end length
o DC 15V Output Terminal (DC 15V OUT +/–)
(2P Terminal Board)
Connect it to (DC 15V IN +/– Terminals) on the pan/tilt
head with a cable (to be locally purchased) with a nom-
inal cross section of 1.25 mm
UL specifications.
The maximum allowable cable
length is 30 meters.
2
or more that meets
(AWG 16)
2
to 1.25 mm
2
2
11 mm
2
or more that meets the
-5-
Applicable (usable) wire
Solid wire:
ø1.29 (AWG 16)
Stranded wire:
1.25 mm
Strand diameter ø0.18 or more
Standard bare end length
!0 Lamp AC Output Connector [LAMP AC OUT]
(AC 3P Outlet)
AC Output Connector for halogen lamps to be
switched on and off from a Control Panel (AW-RP301,
AW-RP305, AW-RP501, or AW-RP505). Locally pur-
chase an AC plug conversion cable that matches the
AC plug for the halogen lamp to be used. Connect a
halogen lamp of 250 W to 500 W. If a halogen lamp of
less than 250 W is connected, the LAMP Indicator on
the control panel may flash to indicate a burnt bulb
even though the lamp is normal.
2
(AWG 16)
11 mm
