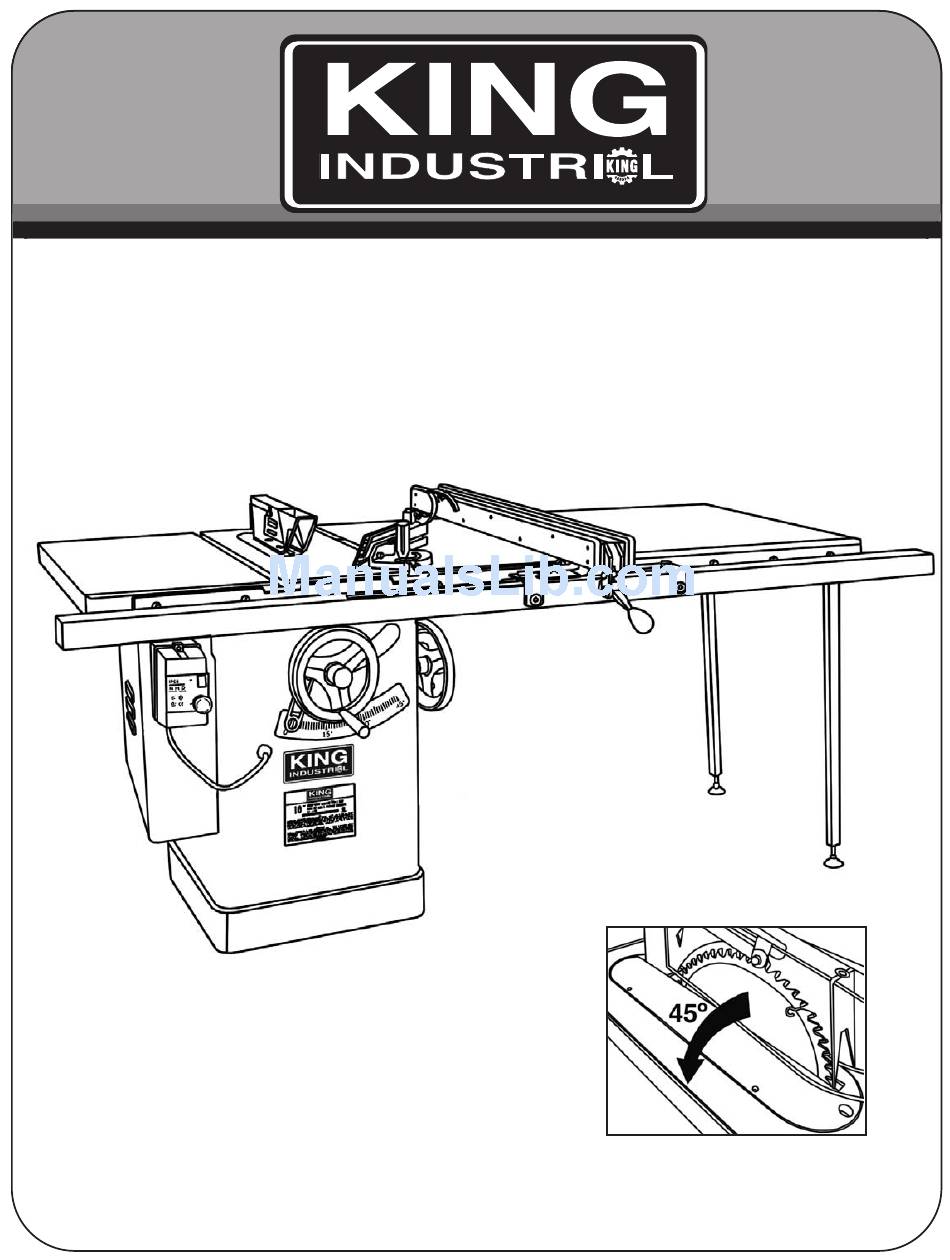

Page 1: Instruction Manual
10” EXTREME TITANIUM CABINET TABLE SAW Left Tilt MODEL: KC-25FXT/i50 INSTRUCTION MANUAL COPYRIGHT © 2007 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 10” CABINET SAW FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL watch) because they could get caught in moving parts. Non-slip Read and understand the owners manual and labels affixed to footwear is recommended. Wear protective hair covering to the tool. Learn its application and limitations as well as its contain long hair. -
Page 4: Specifications Chart
16. Blade tilting handwheel 8. Laminated particle board table 17. Handwheel lock knob 9. Front rail 18. Dado table insert SPECIFICATIONS CHART MODEL KC-25FXT/i50 Blade diameter ” Blade tilts Left Depth of cut at 45° 2 1/8” Depth of cut at 90°... - Page 5 ELECTRICAL REQUIREMENTS & MAGNETIC SWITCH OPERATION WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! PROPERLY POWER SUPPLY GROUNDED OUTLET...
- Page 6 ASSEMBLY DISASSEMBLING MOTOR BRACKET For shipping purposes, a motor bracket (A) Fig.4 is bolted to the cabinet and attached to the motor mount. This motor bracket must be removed before assembling, adjusting or operating this cabinet saw. You should keep this motor bracket in case you plan on shipping your cabinet saw.
-
Page 7: Installing Rear Rail
ASSEMBLY INSTALLING FRONT RAIL AND TUBE ASSEMBLY Place and align the mounting holes of the front rail and tube assembly (A) Fig.8 with the holes in the front lip of the table (C) and extension wings (D & E). Install the front rail and tube assembly to the table and extension wings using 4 hex. - Page 8 ASSEMBLY ASSEMBLING BLADE GUARD WARNING! NEVER OPERATE SAW WITHOUT BLADE GUARD IN THE PROPER OPERATING POSITION. FALIURE TO DO THIS MAY CAUSE SERIOUS INJURY! 1. Place the blade guard splitter (A) Fig.11 inside the table opening, loosen hex. bolt (B), slide the splitter in between the mount plate (C) and the casting and loosely tighten hex.
-
Page 9: Adjusting Table Insert
ADJUSTMENTS ADJUSTING TABLE INSERT A table insert (A) Fig.15 gets placed in the opening in the saw table and should be perfectly flush with the surface of the saw table. To adjust the table insert, place a straight edge over the table insert and the table. Turn the 4 adjusting set screws (B) in the insert, turn them in or out until all 4 corners of the insert are flush with the table top. -
Page 10: Aligning Table T-Slot Parallel With Blade
ADJUSTMENTS ALIGNING TABLE T-SLOT PARALLEL WITH BLADE The table T-slot must be aligned parallel with the blade. Using a combination square (A) Fig.19, measure the distance from the back edge of the blade to the table T-slot. Pivot blade forward 180º and remeasure the distance using the exact same point on the blade. -
Page 11: Operation
OPERATION SAFETY PRECAUTIONS BEFORE OPERATION The operation of power tools involves a certain amount of hazard for the operator. Before attempting regular work we recommend you get the feel of operations using scrap lumber to check settings. Read entire instructions before you start to cut workpiece. Always pay attention to safety precautions to avoid personal injury. -
Page 12: Using Dado Blade Set And Dado Insert
OPERATION USING DADO BLADE SET AND DADO INSERT Dadoing is cutting a rabbet or a wide groove into the work. Most dado head sets are made up of two outside blades and four or five inside cutters, as shown in Fig. 25. Various combination of saws and cutters are used to cut grooves from 1/8”... -
Page 13: Maintenance
MAINTENANCE This table saw requires very little maintenance other than minor lubrication and cleaning. The following sections detail what will need to be done in order to assure continued operation of your saw. LUBRICATION The table saw has sealed lubricated bearings in the motor housing and the arbor assembly, they will not require any additional lubrication. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION SAW WILL NOT START 1. Saw not plugged in. 1. Plug in saw. 2. Fuse blown or circuit breaker tripped. 2. Replace fuse or reset circuit breaker. 3. Cord damaged. 3. Have cord replaced by a certified electrician. OVERLOAD KICKS OUT FREQUENTLY 1.
