BIO RAD VERSADOC User Manual page 28

Warning: This instrument must be connected to an appropriate AC
voltage mains outlet that is properly grounded.
Warning: There are hazardous voltages inside the rear panel of the
VersaDoc. Do not remove the cover to the electronics back panel when
the instrument is connected to AC power.

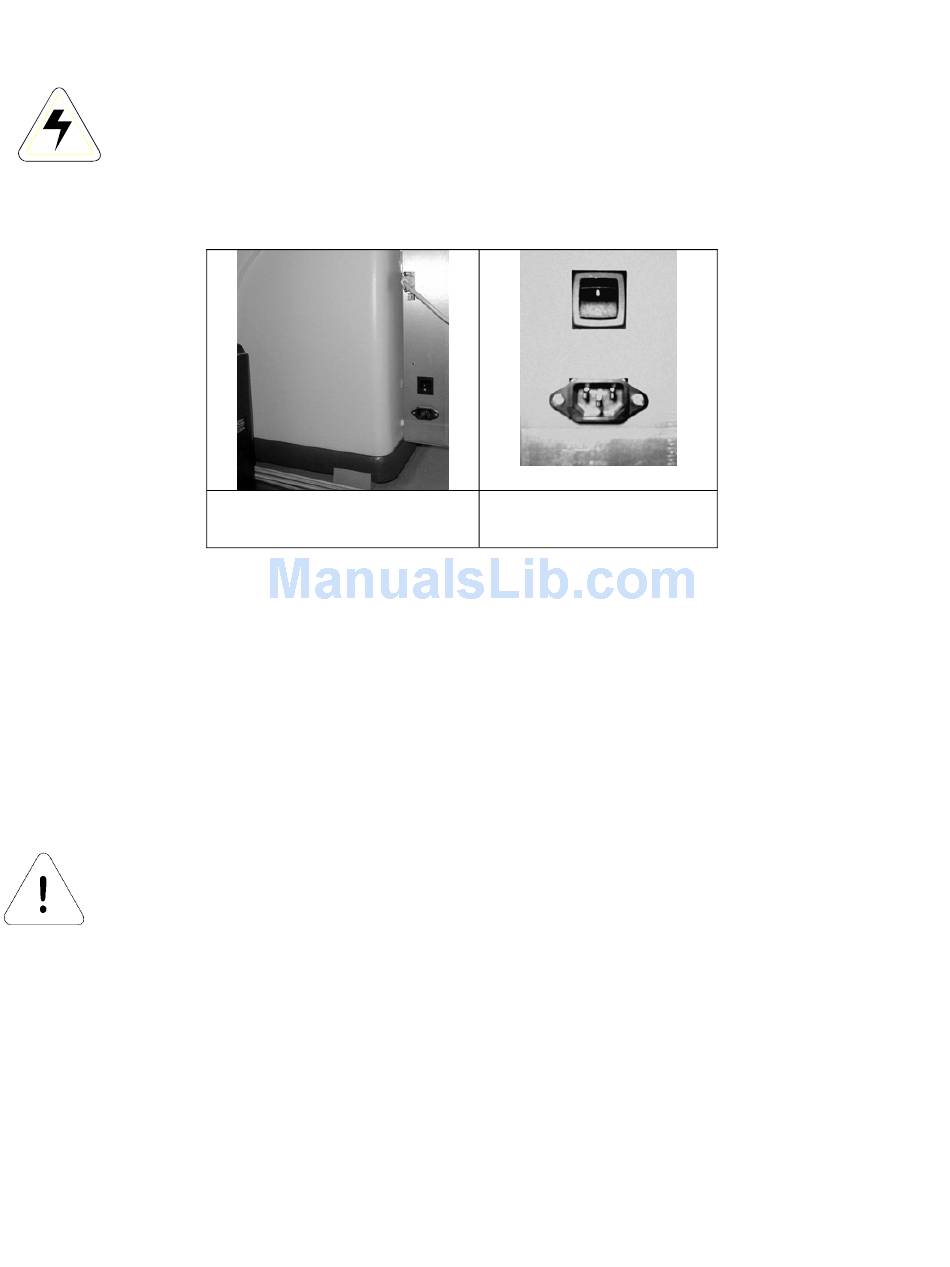

Power entry module at the
bottom right of the rear
VersaDoc Connections:
The VersaDoc is connected to the host computer via a Serial or USB
interface and an AIA interface.
One each of the Serial and USB port is located on the rear right side of the
unit. Use the supplied USB or Serial Cable to connect the PC to the
VersaDoc.
Caution: To prevent damage to the hardware, all instruments must be
turned off before attempting to connect (or disconnect) the unit to the
host computer.
Upon insertion of the Serial or USB cable into the VersaDoc, the Serial or USB
port the PC will automatically select operation and sense the presence of
VersaDoc.
NOTE: Do not turn ON the power to the VersaDoc (and CEU in case of VersaDoc
5000) yet!
Power entry module
panel
Figure 3.16
User's Manual • 3-14
