BIO RAD VERSADOC User Manual page 23

2. A small white tab on the AC inlet located on the rear panel indicates the voltage
setting on your camera controller unit. See Figure 3.8
White plastic stub
shows the current
voltage setting.
Make sure it
matches with the
local voltage.
3. Pull out the small tab near the AC inlet using a small screwdriver. See Figure 3.8
4. The TAB holds a fuse completely remove it. This will expose a tiny PCB located in a
tiny slot as shown in Figure 3.9

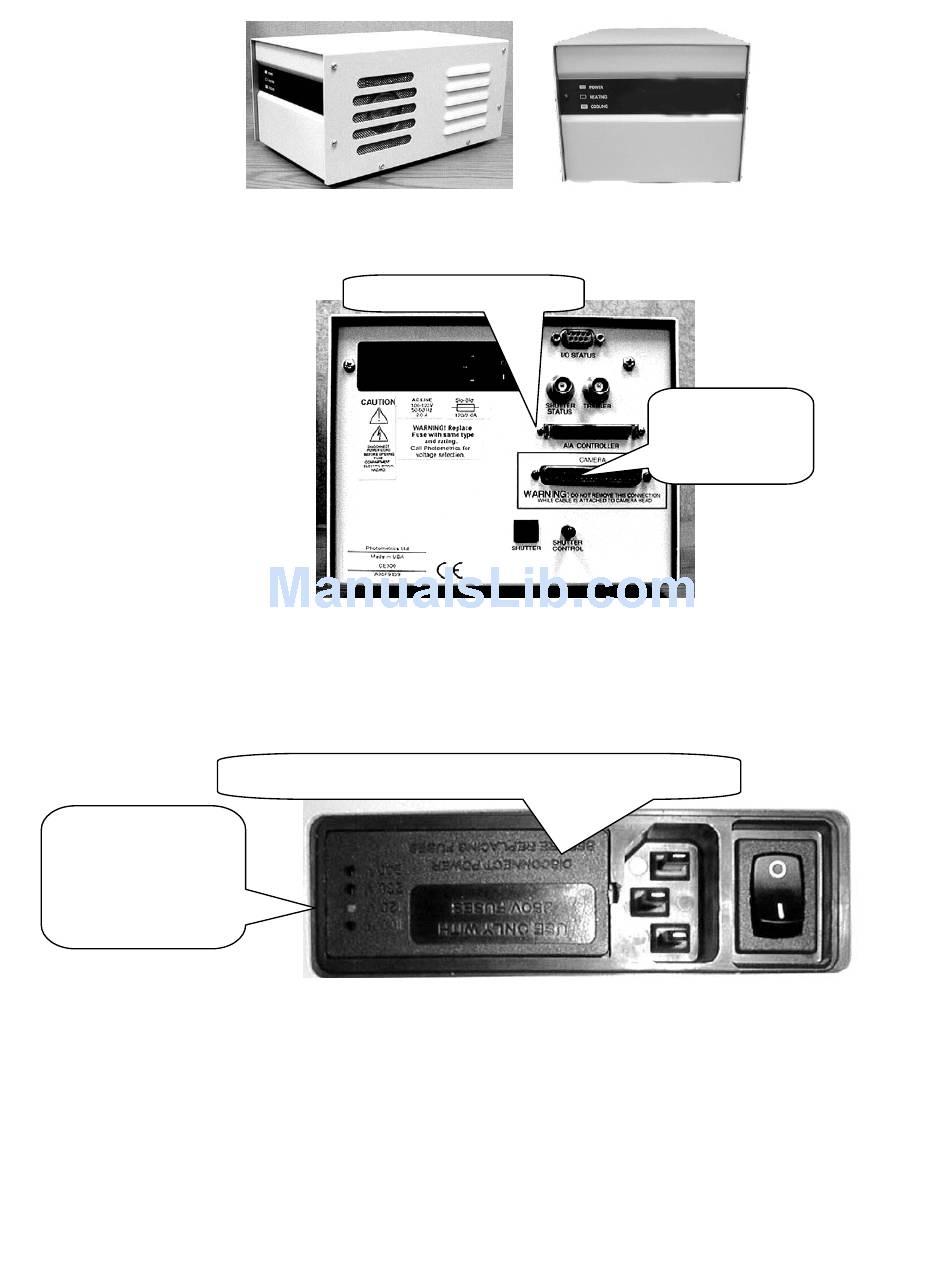

Figure 3.7a
AIA Connector on CEU
Insert a small screw driver and pull out the tab
User's Manual • 3-9
Figure 3.7b
Figure 3.7c
Figure 3.8
Camera
Controller Cable
Connector
