2. The other end of the AIA cable will be connected to the PCI digitizing card that will be
installed in the PC after software installation as shown later in this procedure.
NOTE: The steps describing the installation procedure for the PCI digitizing card
follows later in this procedure.

3.2.5 Installing VersaDoc 5000

Connecting the cables to the camera module:

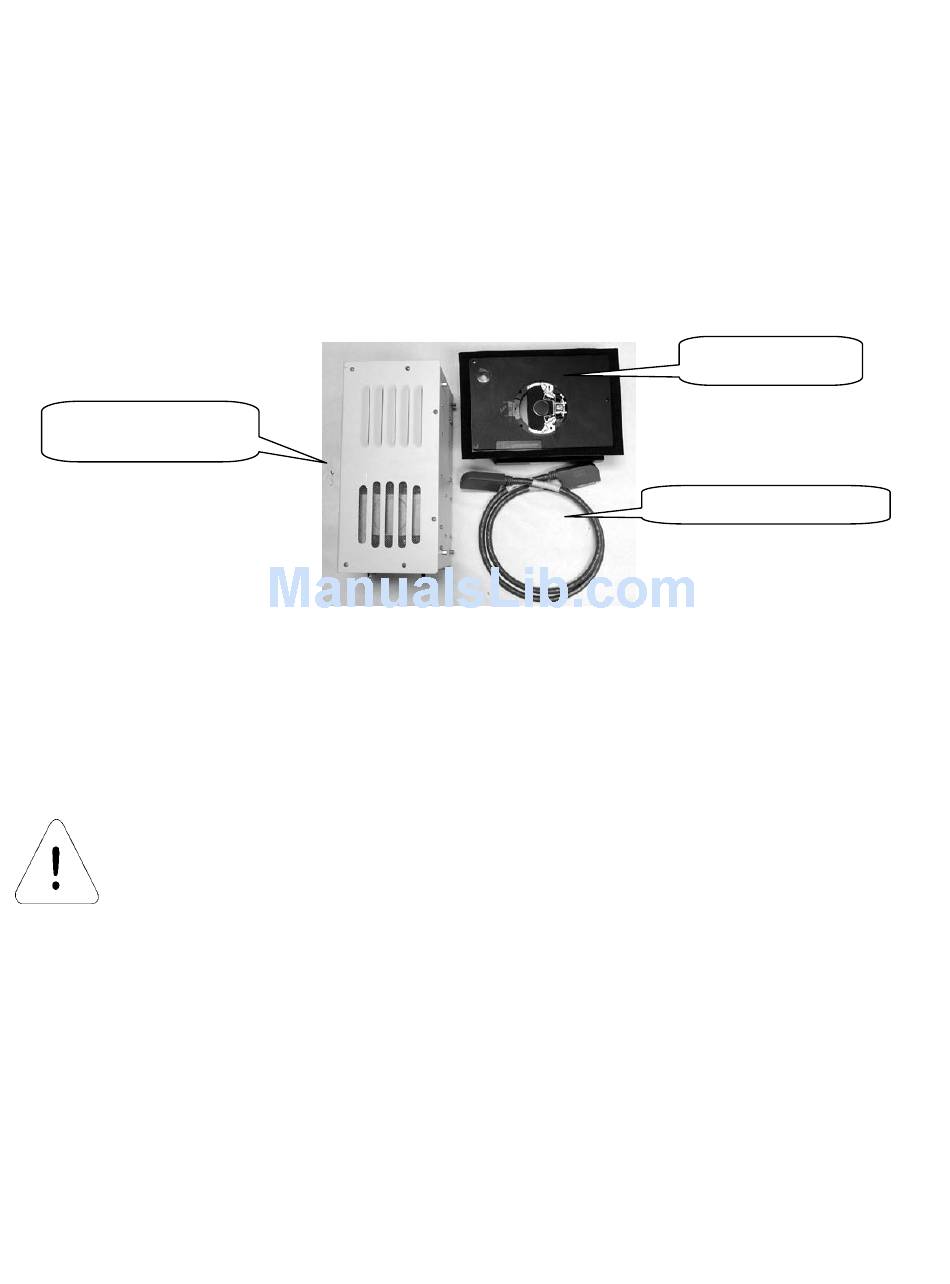

1. The VersaDoc 5000 camera module comes with a camera controller unit (CEU) and
a controller cable. See figure 3.6 below :
Camera Controller Unit
(CEU)
2. Couple the VersaDoc 5000 camera module to the enclosure as shown in the section
3.2.3 above. See Figure 3.1 for details.
3. Next connect the CEU to the camera.
Caution: The default voltage setting on the camera power supply
module is 120 VAC. You must follow the instructions below to make
sure proper voltage selection is made and fuse is used for you AC
voltage environment.
Caution: The VersaDoc 5000 camera module has a "BLUE" plug
installed on the connector on the camera. This plug must not be
removed until the module is installed to the enclosure and the
camera controller unit is ready to be connected to the Camera.
Setting the VersaDoc 5000 System Power Supply Voltage (If required):
1. Familiarize yourself with the camera controller unit [CEU]. See Figures 3.7a, b and c
below:
Figure 3.6
User's Manual • 3-8
Camera Module
Camera Controller Cable
