connections will look similar to the ones shown in Figure 3.13 A or B depending on
th eserial number of the enclosure you may have.
3.2.6
Installing the Epi modules:
1. Remove the access panel mounted on the ballast panel by unthreading the two
thumbscrews.
Thumb
screws on the
ballast panel
2. If not connected already, connect the transilluminator cable to the connector labeled
"UV TRANSILLUMINATOR" located on the ballast panel on interior rear wall of the
enclosure.
3. To install the epi UV and white modules first install the epi UV module by inserting
the two prongs on its end plate to the slots located at the back wall.
4. Secure the module using the captive screw by lining up the front side of the module
with the hole located in the wall of the instrument. (See Figure 3.14b).
5. Now connect the cable from the epi UV module to the appropriate connector on the
ballast assembly.

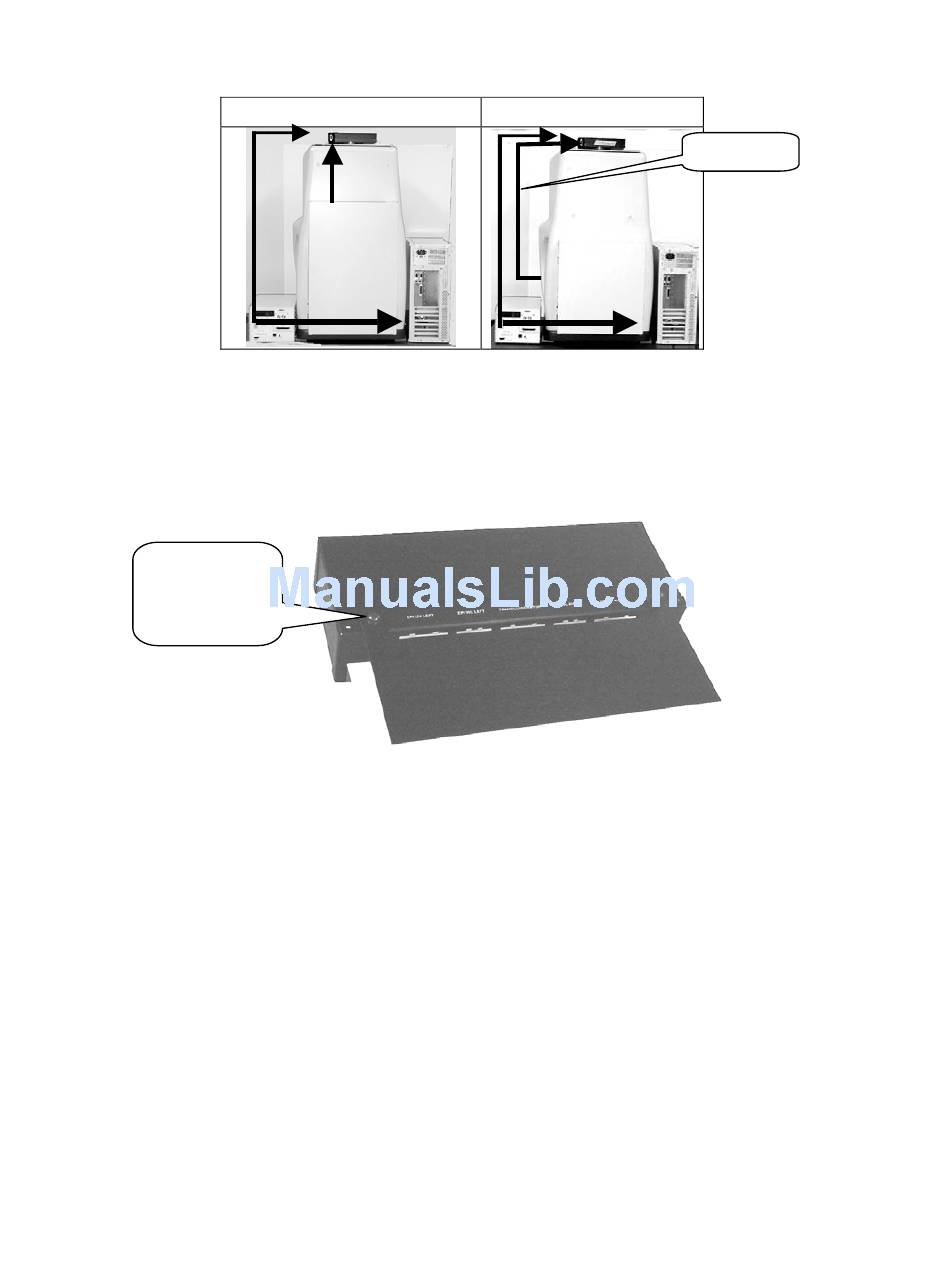

Fig 3.13A
Figure 3.13
Figure 3.14a
User's Manual • 3-12
Fig 3.13 B
Fan Cable
