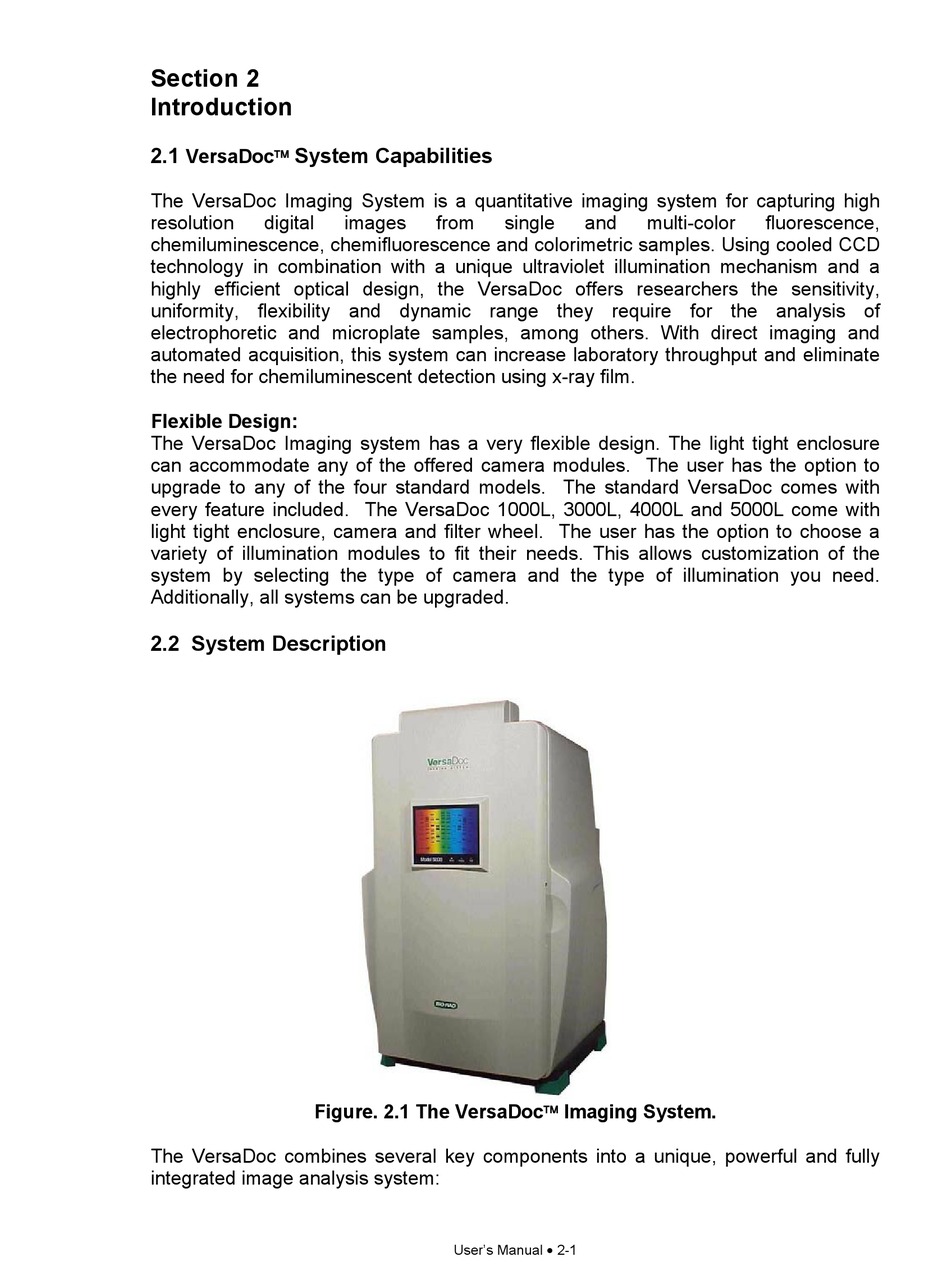

Section 2
Introduction
2.1

System Capabilities

VersaDoc
The VersaDoc Imaging System is a quantitative imaging system for capturing high
resolution digital images from single and multi-color fluorescence,
chemiluminescence, chemifluorescence and colorimetric samples. Using cooled CCD
technology in combination with a unique ultraviolet illumination mechanism and a
highly efficient optical design, the VersaDoc offers researchers the sensitivity,
uniformity, flexibility and dynamic range they require for the analysis of
electrophoretic and microplate samples, among others. With direct imaging and
automated acquisition, this system can increase laboratory throughput and eliminate
the need for chemiluminescent detection using x-ray film.
Flexible Design:
The VersaDoc Imaging system has a very flexible design. The light tight enclosure
can accommodate any of the offered camera modules. The user has the option to
upgrade to any of the four standard models. The standard VersaDoc comes with
every feature included. The VersaDoc 1000L, 3000L, 4000L and 5000L come with
light tight enclosure, camera and filter wheel. The user has the option to choose a
variety of illumination modules to fit their needs. This allows customization of the
system by selecting the type of camera and the type of illumination you need.
Additionally, all systems can be upgraded.

2.2 System Description

Figure. 2.1 The VersaDoc Imaging System.
The VersaDoc combines several key components into a unique, powerful and fully
integrated image analysis system:
User's Manual • 2-1
