Fortinet FortiGate 60D Quick Start Manual page 9

Wireless models only
Console
Optional connection to the management
computer. Provides access to the CLI
HA WiFi (Wireless models only)
Green: Operating in an HA Green:
cluster Off: No Connection
Off: Disabled
Status
Green: Normal
Flashing green: Booting up
Power
Green: On
Off
3G4G
PW R ST ATUS HA WIFI SVC 3G
ACTIVE
LAN, WAN & DMZ Ports Link/Activity
Green: Connected
Flashing green:
Off: No link established
LAN, WAN & DMZ Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not connected
Connected
SVC
Green: 3G4G activated
Off: 3G4G not activated
3G
Green: 3G in use
Off: 3G not in use
4G
Green: 4G in use
Off: 4G not in use
1 2 3 4 5 6 7 DMZ WA N1 WA N2
3G4G
LINK/ACT
4G
SPEED
CONSOL E
Transmitting & receiving data

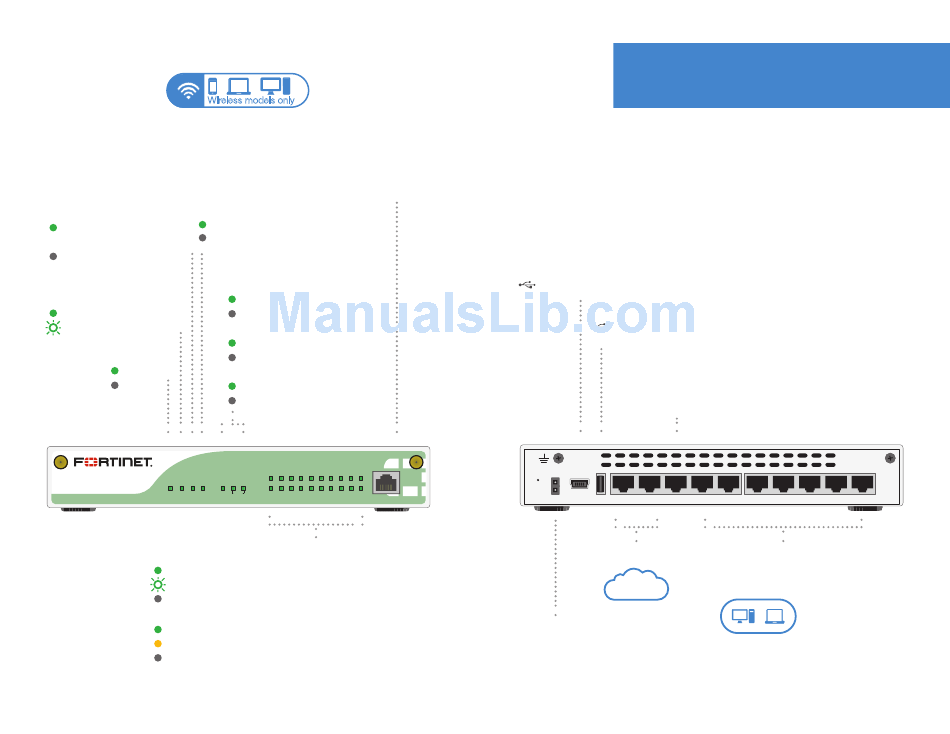

Device Guide
FortiGate/FortiWiFi 60D 3G4G VZW Models Only
USB MGMT (USB mini-B)
USB client port for management
USB (USB A)
USB server port
DMZ (RJ-45)
Optional connection to a DMZ network/device
or to other units for High Availability (HA)
RESET
USB
WAN2 WAN1 DMZ 7
DC+12V MGMT USB
WAN 1 & 2 (RJ-45)
Internet
Power Connection
12V DC, 2.5A
100-240V AC, 50-60Hz adapter
6 4 3 2 1
5
LAN Ports 1 - 7 (RJ-45)
Gigabit Ethernet 7-port switch connection
for the internal network
