Fortinet FortiToken 200 Quick Start Manual

FortiToken 200

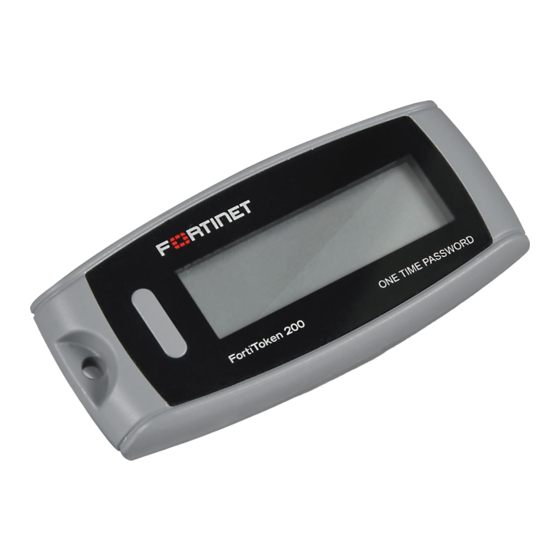

The FortiToken 200 is a small hardware token generator that fits on a
key-chain. Simply press the button and the FortiToken 200 generates and
displays a secure one-time password (OTP) that you enter along with your
regular password for secure authentication and access to critical applica-
tions and sensitive data.
The time remaining is shown on a bar graph in 10-second increments. After
the 60 seconds is up, the password expires and the FortiToken display
turns off.

Step 1. Unpacking

Open the shipping carton and carefully unpack its contents. The carton should contain the following items:
• FortiToken 200 units
• QuickStart Guide
• Activation CD
If any item is found missing or damaged, please contact your local reseller for replacement.
Package Contents:
Time Remaining
Indicator
FortiToken 200
Start Password Display
Button (6 digits)

Step 2. Activating the FortiToken unit

Before you can successfully use the FortiToken 200CD token, it must first be installed and activated on the FortiGate or FortiAuthenticator platform,
depending on which platform you are using as your token validation server.
Important: The FortiGate or FortiAuthenticator unit's clock must be accurate to work properly with the FortiToken devices. It is strongly recommended
to synchronize the clock with a Network Time Protocol (NTP) server.
To activate the tokens on FortiGate units
1. Log in to the Web-based Manager of your FortiGate unit from your computer.
2. Insert the CD labeled FortiToken 200 Activation File.
3. Go to Authentication > Two Factor Authentication > FortiToken, select Hard Token as the Token Type, and click Import.
4. Select Seed File, browse to the .FTK file on the CD, and click OK. The loaded serial numbers will appear in the list and the user can choose to
cancel the import if desired. You can then cancel the import or continue by clicking OK.
5. Each FortiToken 200 will be installed and activated, and shown as Available in the FortiToken UI
To activate the tokens on FortiAuthenticator units
1. Log in to the Web-based Manager of your FortiAuthenticator unit from your computer.
2. Insert the CD labeled FortiToken 200 Activation File.
3. Go to Authentication > Local User Management > FortiTokens, select Import, and check the Seed File option.
4. Browse to the .FTK file on the CD and click OK. The loaded serial numbers will appear in the token list.
5. Each FortiToken 200 is now installed and activated, and shown as Available in the FortiToken UI.
FortiToken
Activation File
ONE TIME PASSWORD
QuickStart Guide
200
™
FortiToken 200 ONE TIME PASSWORD
