Wireless models only
WiFi (Wireless models only)
Green: Connected
Off: No Connection
HA
Green: Operating in an HA cluster
Off: Disabled
Status
Green: Normal
Flashing green: Booting up
PW R ST ATUS HA WIFI
Power PoE (A & B)
Green: On Green:
Off Off: PD not connected
Console
Optional connection to the management computer.
Provides access to the CLI
LAN, WAN & DMZ Ports Link/Activity
Green: Connected
Flashing green: Transmitting & receiving data
Off: No link established
LAN, WAN & DMZ Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not connected
A B 1 2 3 4 5 DMZ WA N1 WA N2
LINK/ACT
PoE
A B
SPEED
CONSOLE
PD connected

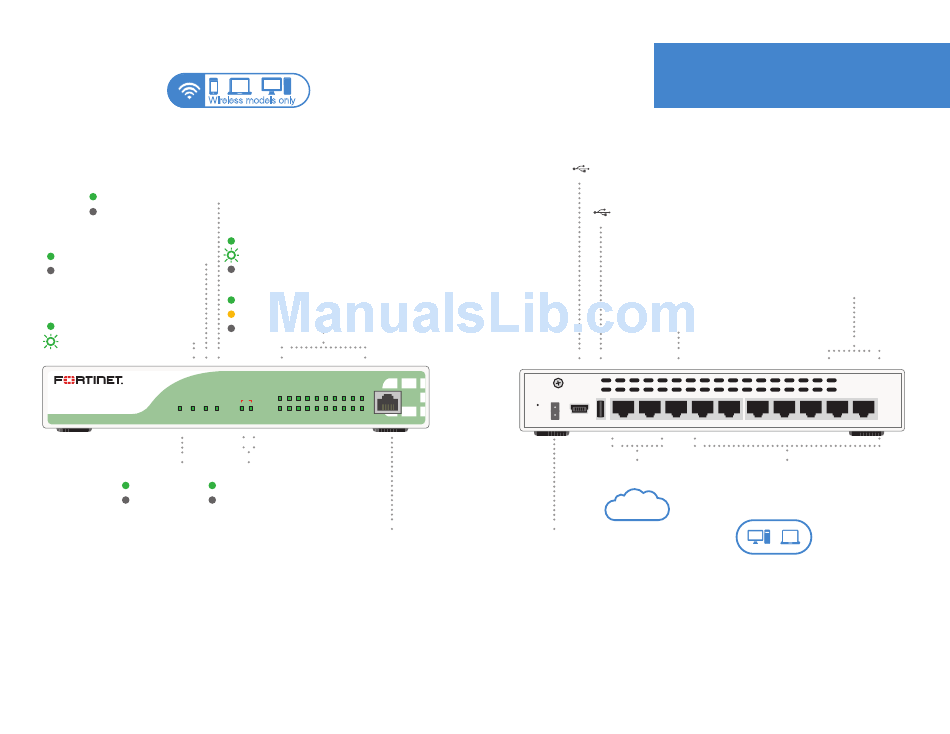

Device Guide
FortiGate/FortiWiFi 60D PoE Models Only
USB MGMT (USB mini-B)
USB client port for management
USB (USB A)
USB server port
DMZ (RJ-45)
Optional connection to a DMZ
network/device or to other
units for High Availability (HA)
RESET
USB
WAN2 WAN1 DMZ
DC+12V MGMT USB
WAN 1 & 2 (RJ-45)
Internet
Power Connection
12V DC, 5A
100-240V AC, 50-60Hz adapter
PoE LAN Ports A & B (RJ-45)
802.af, up to 15.4 W
7 6 4 3 2 1
5
LAN Ports 1 - 5, A & B (RJ-45)
Gigabit Ethernet 7-port switch
connection for the internal network
