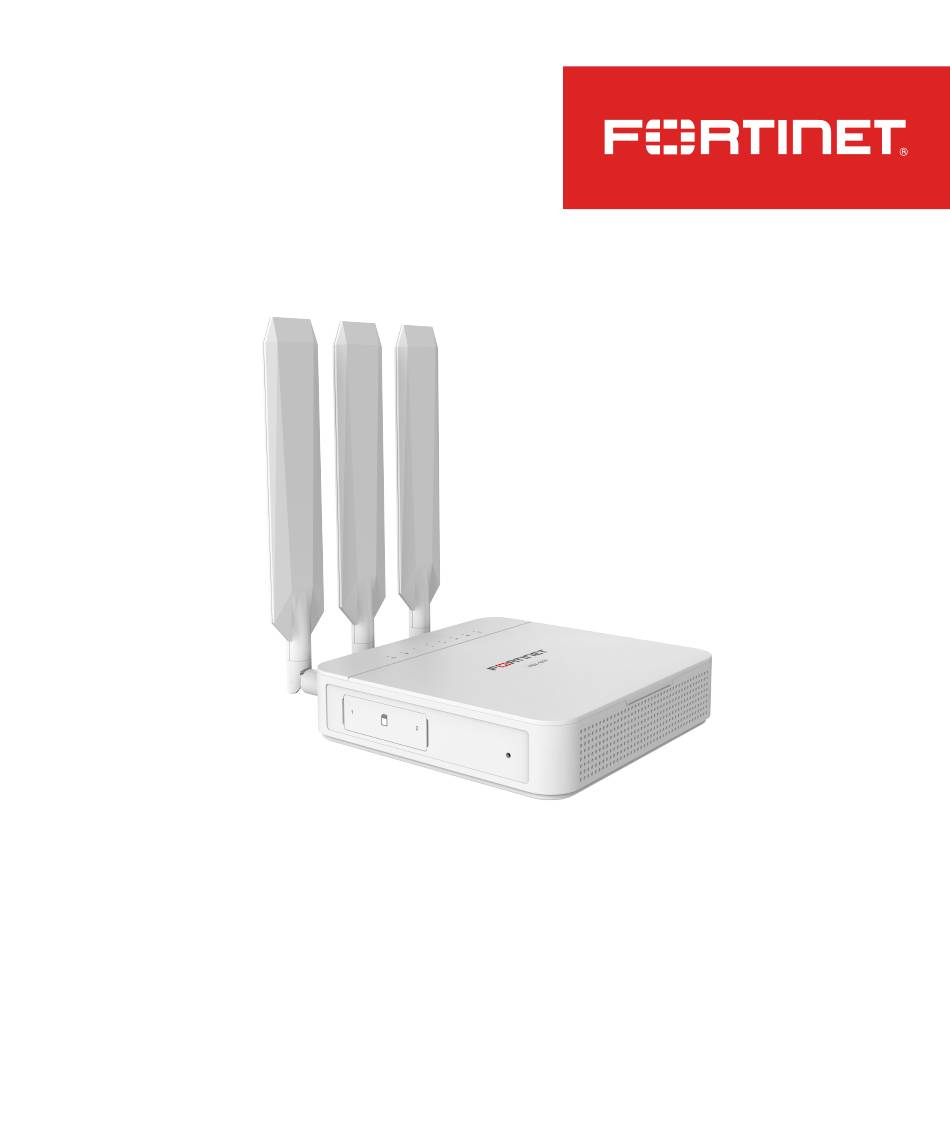

- Page 1 FortiExtender 101F QuickStart Guide...
-
Page 2: Register For Support
® ® 本日、 フォーティネッ ト製品の登録をしてください。 of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. 登録すると次のメリッ トがあります。 All other product or company names may be trademarks of their respective テクニカルサポート... -
Page 3: Packing List
Packing List Product Description FortiExtender 101F is a wireless Internet WAN connection device featuring one 1-Gb/100-Mb WAN connection and four 1-Gb/100-Mb LAN connections. FortiExtender 101 Model Modem LTE/GNSS All-in-One Antennas FEX-101F Quectel CAT6 EM06-A (NA)/ Quectel CAT6 EM06-E (EU) Notes: •... - Page 4 SIM Card Bay & Reset/Default Button Ports & LED USB 2.0 Port LAN (1–4) Ports & LEDs WAN Port & LED Port 4 is PoE PD LAN (802.3af/at) SIM Card Bay Reset/Default Button Console Port 12VDC/2A Input (optional) Button Operating Instructions Note: To access the device from (Use 12VDC/2A power adapter with ID 2.1 mm plug.) Reset/Default Button...
- Page 5 RF Connectors & System LEDs Description Power • Green Steady: System has booted up and is working properly. • Green Flashing: System is booting up. • Amber: System is in error state. • OFF: System is powered off. • Green Steady: Modem is connected to wireless carrier and is Main GNSS Diversity...
-
Page 6: Basic Connections
Basic Connections Wall Mounting Holes Internet LAN/PoE Optional Power Wall Hanging Slots Connection 1. Insert one end of an Ethernet cable into the LAN 4/PoE PD port on the device. 2. Insert the other end of the Ethernet cable into the PoE LAN port of your FortiGate appliance, or to a WAN port of your FortiGate through a power injector. - Page 7 IP Configuration Assembly 1. Remove the dust cover that protects the SIM sockets. After you have connected the FortiExtender network interfaces, the device automatically 2. Insert your MicroSIM (3FF) SIM card(s) into the SIM socket(s). attempts to obtain an IP address from a DHCP server. If you do not use DHCP, you can 3.
-
Page 8: Installation
Place on top of a desk or flat surface Installation 1. Attach the rubber feet to the four corners on the bottom of the unit. 2. Place the unit on the desk or flat surface. The FortiExtender device is designed for placement near a window (desk or wall mount) to 3. - Page 9 Hang on a wall 1. Peel off the drill template sticker, and stick it onto the wall in a desired location. 2. Use the template to mark and drill the pilot holes. 3. Insert the anchors into the holes. 4. Insert the screws into the anchors and tighten, leaving around a 5-mm gap between the screw head and the wall.
- Page 10 Cautions and Warnings Regulatory Notices Federal Communication Commission (FCC)—USA Environmental specifications Ambient operating temperature: 0°C to 40°C This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) This device must accept any interference received;...
- Page 11 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no Svenska assurances for such products.
- Page 12 The full Declaration of Conformity for this product is available at the link below: (in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product) license to use the Software https://site.fortinet.com/ProductRegulatory/UK...
- Page 13 HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE LIMITED WARRANTY IS REPAIR, REPLACEMENT OR the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT AS SPECIFICALLY STATED IN SECTION 6 ABOVE.
- Page 14 Public License Source Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modified software modules, you must also GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e) Product purchased (if applicable), (f ) Product Serial Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
- Page 15 If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. section as a whole is intended to apply in other circumstances.
- Page 16 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are im- posed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
-
Page 17: Training Services
Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. https://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
