Summary of Contents for Fortinet FortiExtender 202F
- Page 1 FortiExtender 202F QuickStart Guide...
-
Page 2: Register For Support
® ® 本日、 フォーティネッ ト製品の登録をしてください。 of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. 登録すると次のメリッ トがあります。 All other product or company names may be trademarks of their respective テクニカルサポート... -
Page 3: Packing List

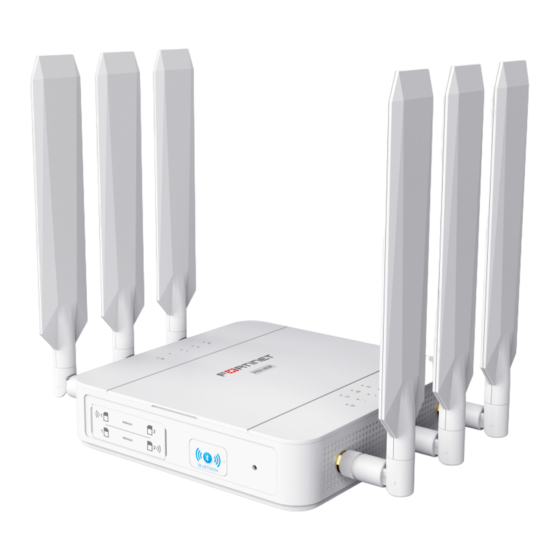

Product Description Packing List FortiExtender 202F is a wireless Internet WAN connection device featuring one 1-Gb/100-Mb WAN connection and four 1-Gb/100-Mb LAN connections. Model Modem LTE/GNSS All-in-One Antennas FortiExtender-202 FEX-202F-AM 2 x Sierra Wireless CAT7 EM7411 FEX-202F-EA 2 x Sierra Wireless CAT7 EM7421 Notes: •... - Page 4 Ports, LEDs, and Buttons Module 1 Antenna Connector Module 2 Antenna Connector LAN Ports (1–4)& LEDs USB 2.0 Port WAN Port & LED Port 4 is PoE PD LAN (802.3af/at) Bluetooth LED Module 1 SIM Cards 1 & 2 Bluetooth Button Reset/Default Button Module 2 SIM Cards 1 &...
- Page 5 RF Connectors & System LEDs LED Behavior Behavior and Description WAN & LAN Port LEDs • Green Steady: 1-Gb network connected. • Green Flashing: 1-Gb network activity. • Amber Steady: 100-Mb network connected. LTE 1 • Amber Flashing: 100-Mb network activity. Auxiliary 1 GNSS 1 Main 1...
- Page 6 Mounting Holes & Slots The following tables describe the use of RF connectors and the system LEDs on top of the FEX-202F casing. Description Power • Green Steady: System has booted up and is working properly. Wall Mounting Holes • Green Flashing: System is booting up.
-
Page 7: Basic Connections
Basic Connections Assembly 1. Snap off the plastic cosmetic cover between the front LEDs, unscrew the SIM socket dust cover fastening screw, and then remove the dust cover. 2. Insert your MicroSIM (3FF) SIM card(s) into the SIM socket(s). 3. Observe the following guidelines: Internet •... -
Page 8: Installation
IP Configuration Installation After you have connected the FortiExtender network interfaces, the device automatically The FortiExtender device is designed for placement near a window (desk or wall mount) to attempts to obtain an IP address from a DHCP server. If you do not use DHCP, you can achieve the best LTE signal strength. - Page 9 Hang on a wall 1. Peel off the drill template sticker, and stick it onto the wall in a desired location. 2. Use the template to mark and drill the pilot holes. 3. Insert the anchors into the holes. 4. Insert the screws into the anchors and tighten, leaving around a 5-mm gap between the screw head and the wall.
- Page 10 Cautions and Warnings Regulatory Notices Federal Communication Commission (FCC)—USA Environmental specifications Ambient operating temperature: 0°C to 40°C This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) This device must accept any interference received;...
- Page 11 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no Svenska assurances for such products.
- Page 12 This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. (in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product) license to use the Software...
- Page 13 HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE LIMITED WARRANTY IS REPAIR, REPLACEMENT OR the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT AS SPECIFICALLY STATED IN SECTION 6 ABOVE.
- Page 14 Public License Source Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modified software modules, you must also GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e) Product purchased (if applicable), (f ) Product Serial Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
- Page 15 If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. section as a whole is intended to apply in other circumstances.
- Page 16 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are im- posed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
-
Page 17: Training Services
Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. https://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
