Summary of Contents for Kaiser Baas THETA

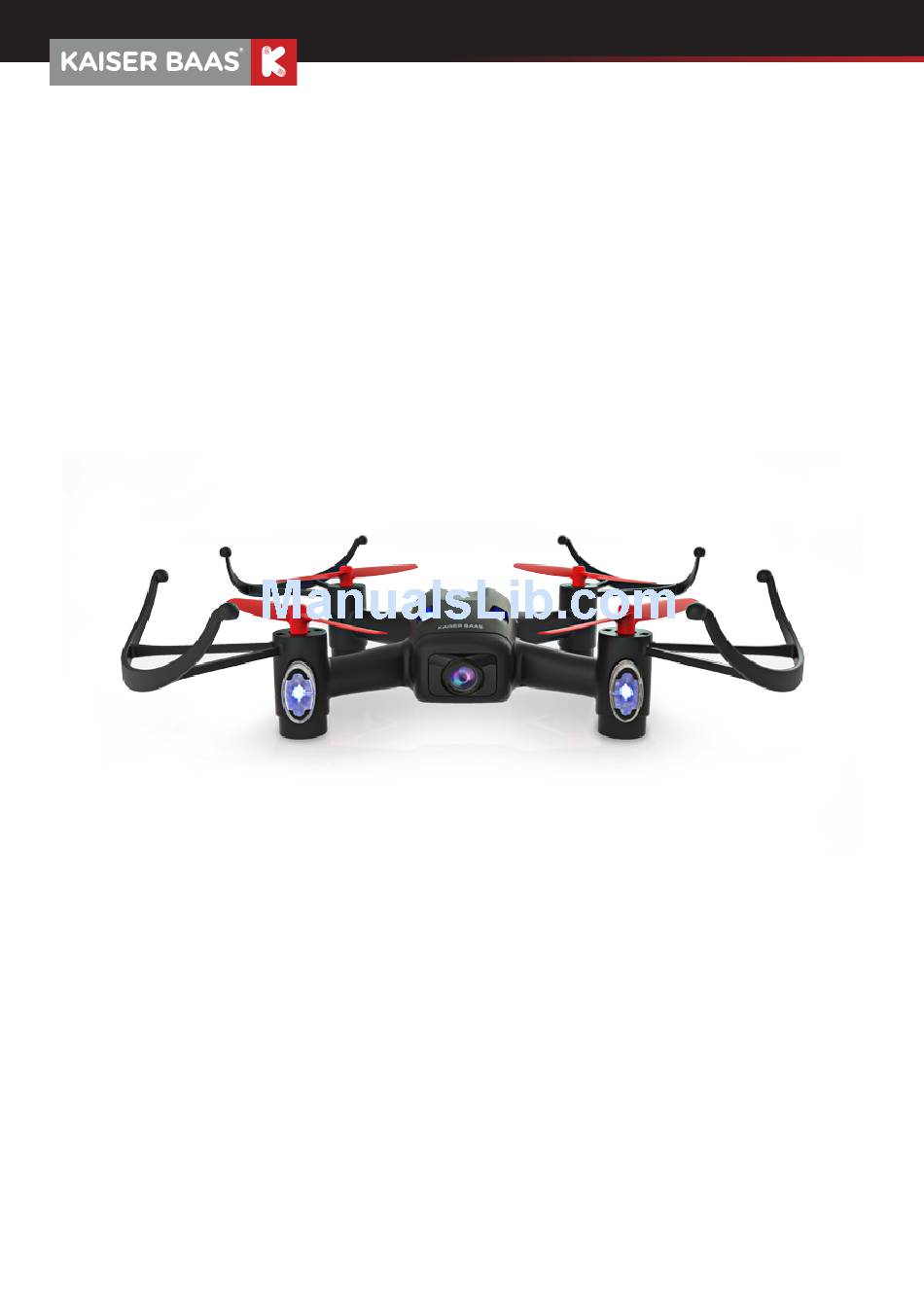

- Page 1 THETA DRONE USER GUIDE...
- Page 3 Languages English 4 - 25 Français 26-49 Espańol 50-74...
- Page 4 Join the social movement and follow us on Share your footage with us on our social media #ChallengeYourself Need help? www.kaiserbaas.com/support To view the entire Kaiser Baas product range and accessories visit: www.kaiserbaas.com...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Disclaimers And Warnings Safety Warnings and Operating Guidelines THETA Drone Features Key Features Included Equipment Drone Specifications Transmitter Specifications Battery Guide Battery Charging Drone Setup/Installation Drone/Transmitter Binding Drone Calibration Drone Trimming Pre-flight Checklist Flight Operation Guide Flight Modes 360° Flips Headless Mode Return Mode Camera Operation Specifications Contact Us... -
Page 6: Disclaimers And Warnings
• Damage(s) or injuries caused by flying in areas such as those with: magnetic interference, radio interference, government regulated no-fly zones or airports. • Any other losses that are not covered by the scope of Kaiser Baas liability. Kaiser Baas reserves the right to make changes to this User Guide if required. Please check the Kaiser Baas website for the most up to date version of this guide: www.kaiserbaas.com/support The information within this manual is subject to change without notice. -
Page 7: Safety Warnings And Operating Guidelines
SAFETY WARNINGS AND OPERATING GUIDELINES Even though the Theta Drone may look small and light, there are important safety considerations to bear in mind when operating this device. Always observe the following guidelines: • DO NOT fly the Drone within 10m of people anywhere. Consider your personal liability when you choose to operate your Drone. • DO NOT attempt to handle or catch the Drone while it is in operation. • DO NOT attempt to handle the Drone while the Rotor Blades are still spinning. -
Page 8: Theta Drone Features
THETA DRONE FEATURES The Theta Drone is an easy to fly Quadcopter that is suitable for both new Pilots and experienced flyers alike. It provides excellent self-levelling and you will find this takes the stress out of Drone piloting. If you are new to the fun of flying drones, you can expect to be up and flying in a short time. -
Page 9: Included Equipment
INCLUDED EQUIPMENT Theta Drone Battery/Remote USB Charger Cable Transmitter 4 Spare Blades Battery Screwdriver THETA DRONE | User Guide... -
Page 10: Drone Specifications
DRONE SPECIFICATIONS Motor Theta Drone Rotor Blade Status LED Lights LED Indicator Lights Power Switch Charging Port (CHA) Camera Lens Module Micro SD Card Port Battery Module THETA DRONE | User Guide... -
Page 11: Transmitter Specifications
Roll Right Trim (Click once for Photo/Long Press to record video) Roll Left Trim Throttle/Yaw Left Stick Pitch Forward Trim LED Toggle Yaw Left/Right Trim Return Toggle Battery Cover Speed Mode Switch Power LED Indicator 360° Flips THETA DRONE | User Guide... -
Page 12: Battery Guide
BATTERY GUIDE IT IS IMPERATIVE THAT ONLY A KAISER BAAS THETA DRONE BATTERY IS USED INSIDE THE THETA DRONE. DO NOT USE ANY THIRD-PARTY OR UNKNOWN ACCESSORIES OR BATTERIES. ALWAYS ENSURE YOUR DRONE BATTERY IS FULLY CHARGED BEFORE FLIGHT. BATTERY SAFETY WARNINGS: •... -
Page 13: Battery Charging
AC Input: 100-240VAC 50/60Hz. DC Output: 5VDC 0.5A/1A/2.1A. Only use a USB charger with suitable approval and certification. Do not charge in conditions outside of the 10°C-45°C range. 4. The USB Charger features a red LED indicator light that will turn on when Charging is complete or there is no battery connected. While it is charging the light will be OFF. 5. A full charge cycle will take approximately 70mins by 0.5A/1A/2.1A charger. TO CHARGE THE DRONE BATTERY INSIDE THE THETA DRONE: 1. Make sure the Drone is switched OFF. 2. Insert the USB Charger into the charging (CHA) port at the bottom of the Drone. Note the USB Charger has grooves that match the charging (CHA) port. [Diagram] 3. -
Page 14: Drone Setup/Installation
ROTOR BLADES: It is important that only Kaiser Baas Theta Drone Rotor Blades are fitted to the Theta Drone. Never use any third party accessories or tools. Your Drone will come ready to fly with Rotor Blades attached. If you need to replace... -
Page 15: Drone/Transmitter Binding
Note: If you have more than one Drone you must pair them sequentially (Bind one Drone and then bind the second Drone). Attempting to pair them simultaneously may cause interference. DRONE CALIBRATION Before every flight it is important to calibrate your Drone. Calibration ensures the Gyroscopes are reset and the Drones Direction / Heading is fixed. Always calibrate with the Drone and the Pilot facing the same direction. Calibration: 1. Place the Drone on level ground facing the same direction as the pilot. 2. Push the Left Throttle/Yaw Stick and the Right Pitch/Roll Stick to the bottom left and hold for 2 seconds until you see the LED indicator lights on the drone start to flash rapidly. 3. Release the sticks and wait for the drone LEDs to stop flashing. 4. The Drone LEDs will stop flashing indicating that the calibration has been completed. THETA DRONE | User Guide... -
Page 16: Drone Trimming
PRE-FLIGHT CHECKLIST • Do a COMPLETE check of your surroundings; look for hazards above, in front and behind you. • Be especially aware of things like power lines and nearby people and animals. If these hazards exist, DO NOT deploy your Drone and consider a new take-off Location. • DO NOT FLY in inclement weather or moderate to high winds. • DO NOT FLY in populated areas as unforeseen flight hazards may occur. • Remember YOU are the Pilot. Safety is YOUR responsibility. • DO NOT FLY near airports/controlled airspace. Ensure that you are at least 5.5kms from any airfield and you are adhering to any regulations and laws laid out by your local aviation authority. Remember: checking your distance to these areas is YOUR responsibility • Never fly your Drone near large crowds or above unwilling spectators. • Make sure that you have the full permission of people within flying range of your Drone and DO NOT fly your Drone where people have not given permission or have requested that you not fly. • Ensure the Drone is orientated in the desired direction. THETA DRONE | User Guide... -
Page 17: Flight Operation Guide
RIGHT STICK The Right Stick is also known as the Elevator/Aileron. This controls the forwards and backwards (Pitch) movement and the left and right (Roll) movement of the Drone. Forward Roll Left Roll Right Backwards THETA DRONE | User Guide... -
Page 18: Flight Modes
The Drone features a number of Flight Modes and settings. SPEED MODES There are 3 Speed modes on the Theta Drone. They can be cycled through on the transmitter by pressing the Speed Mode Button. Each mode is indicated by an increasing series of beeps. -
Page 19: 360° Flips
Note: When the flip is over you will need to be ready to control its direction. Note: The Drone will fly up and down rapidly whilst performing this action. Note: The flip function will not work under low power (Drone LEDS flashing). THETA DRONE | User Guide... -
Page 20: Headless Mode
Drone while you are standing behind it, so that both you and Drone are both facing in the same direction. Failure to do this will result in incorrect control. Tip: Headless Mode can be turned on while in flight. THETA DRONE | User Guide... -
Page 21: Return Mode
RETURN MODE Return Mode is a simple function that puts the Theta Drone into reverse. It can be useful when flying in headless mode and you can not determine the Drones orientation for it to return. WARNING: THIS MODE DOES NOT USE GPS OR HAVE ANY POSITION DATA. -
Page 22: Camera Operation
CAMERA OPERATION The Theta Drone features a 720P HD Camera. This Camera will only record with a MicroSD installed (not included). Please note a Class 10 Micro SD card (Max 32 Gb.) is required TO TAKE A PHOTO: 1. Click the Photo/Video button once. -
Page 23: Specifications
150 x 110 x 110 mm Operating Range: Battery: 1.5V AAA x 4 (Not included) Charge time from discharge: CAMERA SPECIFICATION Video Resolution: 1280 x 720 Sensor: CMOS Storage: MicroSD Card Max 32gb (Not Included) THETA DRONE | User Guide... -
Page 24: Faq
A1. Insufficient Battery Power. If the Drone LEDs are flashing and the Drone Rotor Blades are spinning without any lift, recharge the Drone Battery. A2. The Rotor Blades are distorted. Replace them with only official Kaiser Baas replacement blades. Q3. WHY IS THE DRONE IS SHAKING AND NOT STABLE IN FLIGHT? A1. -
Page 25: Contact Us
CONTACT US Having trouble getting your Drone up? Don’t worry our friendly support team can help. Please visit us at: www.kaiserbaas.com/support or shoot us an email at: helpdesk@kaiserbaas.com THETA DRONE | User Guide...
