Summary of Contents for Kaiser Baas GAMMA
- Page 1 GAMMA DRONE USER GUIDE...
- Page 4 Join the social movement and follow us on Share your footage with us on our social media #ChallengeYourself Need help? www.kaiserbaas.com/support To view the entire Kaiser Baas product range and accessories visit: www.kaiserbaas.com...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Disclaimers And Warnings Safety Warnings and Operating Guidelines Gamma Drone Features Key Features Included Equipment Drone Specifications Transmitter Specifications Battery Guide Battery Charging Drone Setup/Installation Drone/Transmitter Binding Drone Calibration Drone Trimming Pre-flight Checklist Flight Operation Guide Take-Off and Landing Basics... -
Page 6: Disclaimers And Warnings
• Damage(s) or injuries caused by flying in areas such as those with: magnetic interference, radio interference, government regulated no-fly zones or airports. • Any other losses that are not covered by the scope of Kaiser Baas liability. Kaiser Baas reserves the right to make changes to this User Guide if required. Please check the Kaiser Baas website for the most up to date version of this guide: www.kaiserbaas.com/support... -
Page 7: Safety Warnings And Operating Guidelines
SAFETY WARNINGS AND OPERATING GUIDELINES Even though the Gamma Drone may look small and light, there are important safety considerations to bear in mind when operating this device. Always observe the following guidelines: • DO NOT fly the Drone within 10m of people anywhere. Consider your personal liability when you choose to operate your Drone. -
Page 8: Gamma Drone Features

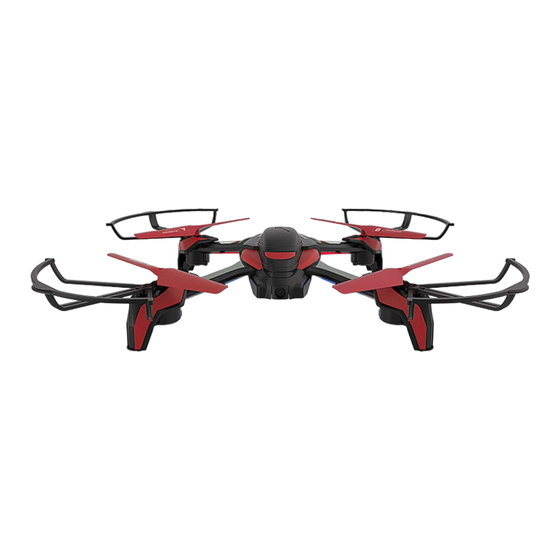

GAMMA DRONE FEATURES The Gamma Drone is an easy to fly Quadcopter that is suitable for both new Pilots and experienced flyers alike. It provides excellent self-levelling and altitude-holding and you will find this takes the stress out of Drone piloting. -
Page 9: Included Equipment
INCLUDED EQUIPMENT Gamma Drone 4 Spare Blades 720p WiFi Camera Screwdriver Battery Rotor Blade Guards Battery/Remote USB Charging Cable Obstacle Avoidance GAMMA DRONE | User Guide... -
Page 10: Drone Specifications
DRONE SPECIFICATIONS Motor Gamma Drone Obstacle Avoidance Module Rotor Blade Power Button Landing Gear Rotor Blade Guards Camera Module Battery Module GAMMA DRONE | User Guide... -
Page 11: Transmitter Specifications
360° Flip (Long Press 3 Seconds to STOP) Speed Mode Switch Charge Socket Photo/Video Button Headless Mode (Click once for Photo/Long Press to record video – Only for Non-WiFi Camera Modules) LED Toggle Return Toggle GAMMA DRONE | User Guide... -
Page 12: Battery Guide
BATTERY GUIDE It is imperative that only a Kaiser Baas Gamma Drone Battery is used inside the Gamma Drone. DO NOT use any third-party or unknown accessories or batteries. Always ensure your Drone battery is charged before flight. Battery Safety Warnings: •... -
Page 13: Battery Charging
Drone to a complete stop. Failure to note the Low Battery signal may cause a sudden loss of power endangering Persons, Property and the Drone. Running the Battery completely flat will impact the health and future flight time of your Drone. GAMMA DRONE | User Guide... -
Page 14: Drone Setup/Installation
2. Refer to the camera section for instruction on how to use Battery Assembly: 1. Insert the Battery Module into the rear empty slot of the Drone. The Battery Module will click into place. GAMMA DRONE | User Guide... - Page 15 3. Refer to the flight modes section for further instruction. Rotor Blades Assembly: It is important that only Kaiser Baas Gamma Drone Rotor Blades are fitted to the Gamma Drone. Never use any third party accessories or tools. Your Drone will come ready to fly with Rotor Blades attached. If you need to replace...
-
Page 16: Drone/Transmitter Binding
2 seconds until you see the LED indicator lights on the drone start to flash rapidly. 3. Release the sticks and wait for the drone LEDs to stop flashing. 4. The Drone LEDs will stop flashing indicating that the calibration has been completed. GAMMA DRONE | User Guide... -
Page 17: Drone Trimming
• Never fly your Drone near large crowds or above unwilling spectators. • Make sure that you have the full permission of people within flying range of your Gamma Drone and DO NOT fly your Drone where people have not given permission or have requested that you not fly. -
Page 18: Flight Operation Guide
The Right Stick is also known as the Elevator/Aileron. This controls the forwards and backwards (Pitch) movement and the left and right (Roll) movement of the Drone. Pitch Up Roll Left Roll Right Pitch Down GAMMA DRONE | User Guide... -
Page 19: Take-Off And Landing Basics
Push the Throttle/Yaw Left Stick slightly UP to fly. The Gamma Drone features Auto-Hover, releasing the Throttle/Yaw stick will keep the drone at the same altitude. Pushing the Throttle/Yaw Left Stick UP or DOWN will ascend or descend the Drone respectively. -
Page 20: Flight Modes
The Drone features a number of Flight Modes and settings. Speed Modes There are 3 Speed modes on the Gamma Drone. They can be cycled through on the transmitter by pressing the Speed Mode Button. Each mode is indicated by an increasing series of beeps. -
Page 21: Obstacle Avoidance
If you attempt to use this Mode in areas with lots of walls/obstacles the Drone will perform erratically and veer in dangerous directions. Headless Mode and Return Mode will not function in Speed Mode 1-Beginner Mode with the Obstacle Avoidance Module attached. GAMMA DRONE | User Guide... -
Page 22: 360° Flips
The flip function will not work under low power (Drone LEDS flashing). RETURN MODE Return Mode is a simple function that puts the Gamma Drone into reverse. It can be useful when flying in headless mode and you can not determine the Drones orientation for it to return. -
Page 23: Headless Mode
Drone while you are standing behind it, so that you and Drone are both facing in the same direction. Failure to do this will result in incorrect control. Tip: Headless Mode can be turned on while in flight. GAMMA DRONE | User Guide... -
Page 24: Wifi App Operation
4. The password is “1234567890” 5. Once connected open the Kaiser Baas Gamma Drone App. 6. Click on the Fly My Gamma tab to see the live FPV of your Drone. WiFi FPV Range The optimal range is 20 metres for smooth recording and a great FPV experience. - Page 25 1. Connect to the Drone via WiFi. 2. Open the Kaiser Baas Gamma Drone App. 3. Click the Fly My Gamma Tab 4. On the top left of the screen there are buttons to take photos or record video. 5. The footage will be saved to your devices “Camera Roll” and can also be found within WIFI the “Gallery”...
-
Page 26: Wifi Drone Operation
WIFI DRONE OPERATION The Gamma Drone has a feature that lets you control the Drone exclusively via the APP. We recommend beginner pilots learn to use the remote transmitter before attempting to control the Drone through the App. To pilot the Drone without the Remote Transmitter: 1. -
Page 27: Specifications
Power: 10 db Mode: GFSK Channel Resolution: 1mHz Weight: 154.3g Input Power: 3.7V Size/Dimensions: 221 x 120 x 50 mm Operating Range: 80m (No FPV) Battery: 3.7V 80mAh Lithium-Polymer Charge time from discharge: 15 Min GAMMA DRONE | User Guide... - Page 28 Video Resolution: 1280 x 720 Sensor: CMOS Storage: WiFi Smartphone App WiFi Range: Up to 30 m Smartphone Requirements Max Length: 190 mm Min Length 120 mm System Requirements: iOS 8.0 and above, Android 4.4+ GAMMA DRONE | User Guide...
-
Page 29: Faq
A1. Insufficient Battery Power. If the Drone LEDs are flashing and the Drone Rotor blades are spinning without any lift, recharge the Drone battery. A2. The Rotor Blades are distorted. Replace them with only official Kaiser Baas replacement blades. Q3. Why is the Drone is shaking and not stable in flight? A1. -
Page 30: Contact Us
CONTACT US Need further assistance? Please visit: www.kaiserbaas.com/support Or email: helpdesk@kaiserbaas.com To view the entire Kaiser Baas product range and accessories visit: www.kaiserbaas.com GAMMA DRONE | User Guide... - Page 31 GAMMA DRONE | User Guide...
