INTRODUCTION TO YOUR
NEW R 5 Plus • R 5 V.V. •
R 6 • R 6 V.V. TABLE-TOP
CUTTER MIXER
The R 5 Plus, R 5 V.V., R 6 or R 6 V.V. is perfectly
geared to professional needs. It can perform any
number of tasks, which you will gradually discover
as you use it.
This machine can be used to process meat, vege-
tables, fine stuffing, mousse, grinding, kneading,...
in less than 5 minutes for even the longest tasks.
Its numerous functions will open the door to a whole
new culinary world.
Thanks to its simple design, all components requiring
frequent handling for maintenance or cleaning can
be fitted and removed in a trice.
To make things easier for you, this manual gives a
breakdown of all the various fitting operations.
This manual contains impor tant information
designed to help the user get the most out of his or
her bowl cutter/vegetable preparation device.
We therefore recommend that you read it carefully
before using your machine.
We have also included a few examples to help you
get the feel of your new machine and appreciate its
numerous advantages.
SWITCHING ON
THE MACHINE
• ADVICE ON ELECTRICAL CONNNECTIONS
Before plugging in, check that your power supply
corresponds to that indicated on the machine's
identification plate.
W A R N I N G
This appliance must be plugged into an
earthed socket (risk of electrocution).
Three phase R 5 Plus • R 6
The R5 Plus/R6 come with different types of
motor : 230 x 400 V / 50 Hz / 3
400 V / 50 Hz / 3
220 V / 60 Hz / 3
380 V / 60 Hz / 3
This machine is supplied with a cable to which you
simply attach the appropriate electrical plug or
isolator for your system. The cable has four wires,
one earth wire, plus three phases wires.
If you have a 4-pin plug:
1) Connect the green and yellow earth wire to the
earth pin.
2) Connect the three other wires to the remaining
pins.
If you have more than 4 pins in the plug, please
note the ROBOT-COUPE does not require a neutral
wire.
Switch on the empty machine, making sure that
the blade is rotating properly in an anti-clockwise
direction.
On the motor unit and on the lid a arrow marks the
blade rotation directions.
If the blade turns in a clockwise direction, swap
over two wires.
GREEN YELLOW is the earth,
DO NOT DISCONNECT
–
Swap either : the – and the
the — and the
the and the
• Single phase R 5 Plus
The R 5 Plus is available with motor ratings :
The machine comes with a single phase plug
connected to a power cord.
• Single phase R 5 V.V. • R 6 V.V.
Before plugging in, read carefully the recom-
mandations relating to the machines installation
on page 17.
The R 6 V.V. is available with motor ratings +
variabe speed : 230 V / 50-60 Hz / 1
The standardized plug must be calibrated to a mini-
mum of 13 amps and preferably 20 amps, if the
appliance is used intensively.

• CONTROL PANEL

Red switch
Green switch =
Black switch
R 5 Plus / R 6: Speed selector = 1,500 or 3,000 rpm.
R 5 V.V. / R 6 V.V.: Speed variation from
—
˜
˜
230 V / 50 Hz / 1
220 V / 60 Hz / 1
W A R N I N G
= Off switch
On switch
= Pulse control
300 to 3,000 rpm.

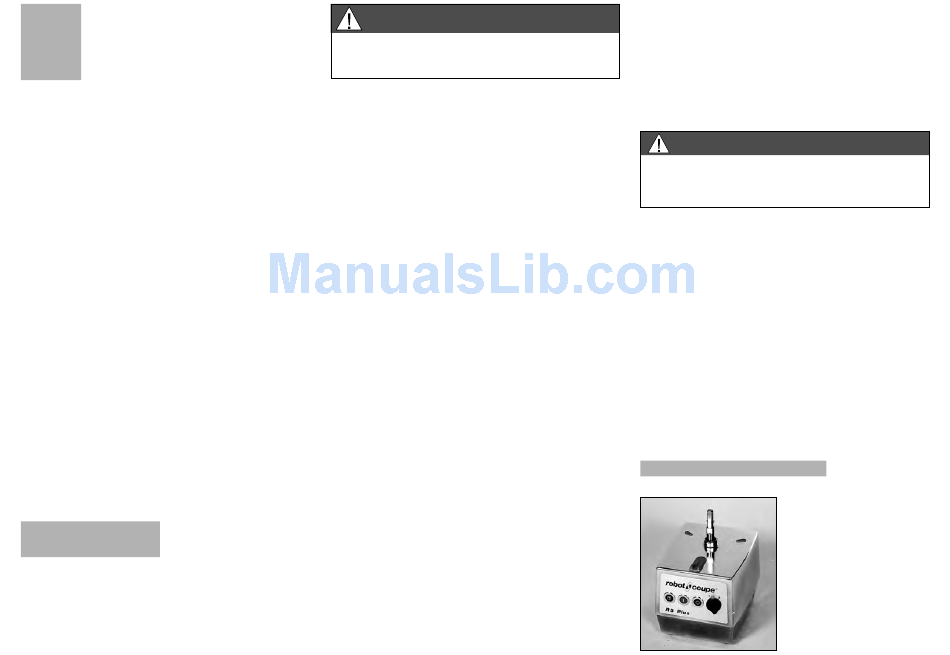

ASSEMBLY

1) With the motor base
facing you, position the
cutter bowl on the motor
base.
