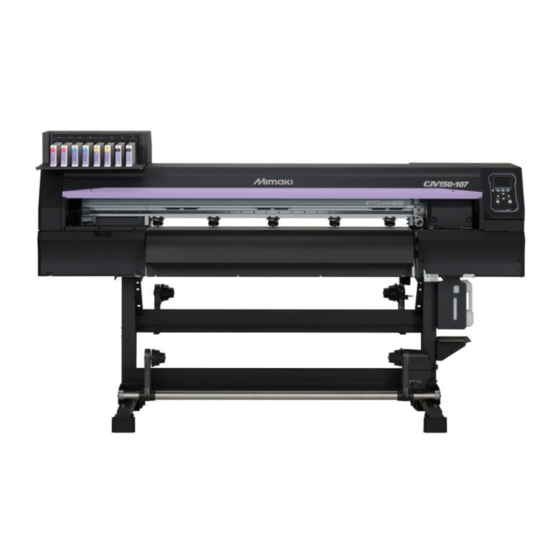

MIMAKI CJV150-75/107 Product Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Product Guide
Print&Cut
The new high quality entry models
The information in this document is subject to change without notice.
18-11-2014
Mimaki Europe B.V.
Ver1.1_EU
Sign Graphics Products

Advertisement

loading
Need help?

Need help?

Do you have a question about the CJV150-75/107 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI CJV150-75/107

Summary of Contents for MIMAKI CJV150-75/107

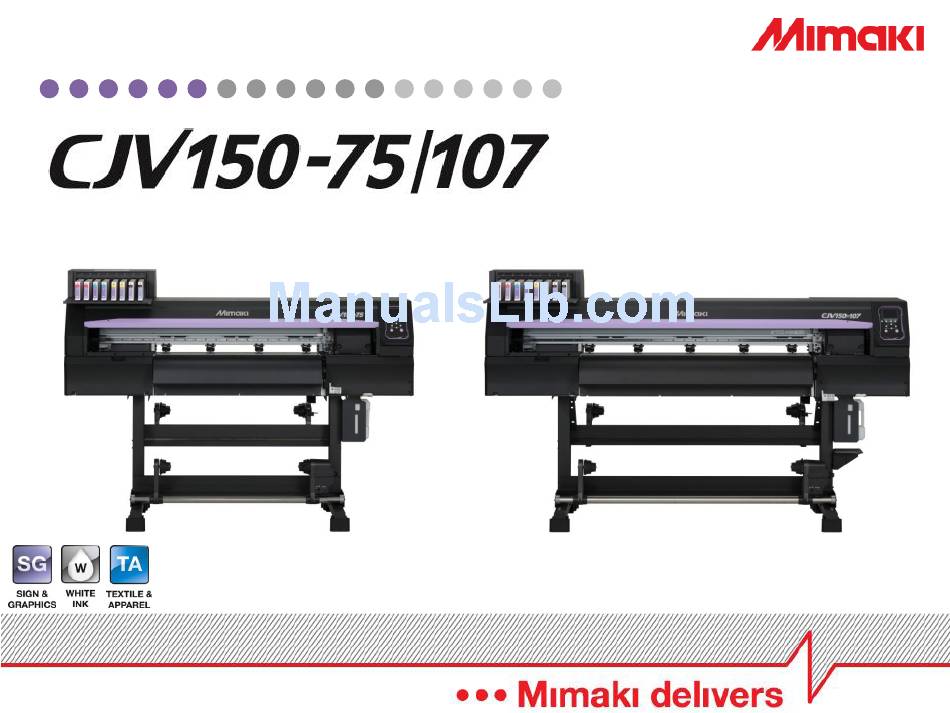

  • Page 1 Product Guide Print&Cut The new high quality entry models The information in this document is subject to change without notice. 18-11-2014 Mimaki Europe B.V. Ver1.1_EU Sign Graphics Products...

  • Page 2: Terms Of Use

    Mimaki Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. •...
  • Page 3 Smooth image quality by waveform control and precise dot placement technology • Variable dot printing by 3 different drop sizes of Large/Middle/Small • Mimaki’s proprietary 3-way intelligent heater optimizes dot gain • MAPS3 eliminates banding and delivers smooth print densities •...

  • Page 4: System Configurations

    HDD: 500GB USB2.0: 4 ports or more Optical disk drive: DVD-ROM Windows7 Professional 64bit Monitor: 1366x768 Options Works also with: MBIS3 Drying fan Air exhaust unit Static prevention sheet 8x Eco-cartridge for 600ml BS3 inks Mimaki Europe B.V. Sign Graphics Products...
  • Page 5 ②4C:High speed printing M C Y Y C M ③8C: Smooth result & vibrant expression M C Y Lc Lm Lk Or ④6C+WW: 6C plus white printing M C Y Lc Lm W W Mimaki Europe B.V. Sign Graphics Products...
  • Page 6 Lb Lm B M Capacity Capacity CMYK: BMYKLbLm: 600ml Ink pack, for the Eco-cartridge 440ml cartridge 2L Ink pack, for the MBIS3 2L Ink pack, for the MBIS3 Eco-cartridge needs to be ordered extra Mimaki Europe B.V. Sign Graphics Products...
  • Page 7 Ejects 7 different drop sizes of 4pl/7pl/8pl/14pl/16pl/24pl/35pl • Prints both high quality mode and high speed mode 1-head:1440-nozzle (180-nozzle x 8-lines) 1 2 3 4 5 6 7 8 Nozzle row length Approx.25.4mm (1 inch) Nozzle width Approx.31mm (1.2 inch) Mimaki Europe B.V. Sign Graphics Products...
  • Page 8 4ｐｌ 4ｐｌ Low density due to an gap between the dots High density with no gap between the dots ↓ ↓ Not suitable for high speed mode (low resolution) Suitable for High speed mode Mimaki Europe B.V. Sign Graphics Products...
  • Page 9 The print modes in this document is the performance of the printer. The media profiles are created depending on the media type. Creating profiles with MPM II is possible, when the media profile is not available. Mimaki Europe B.V. Sign Graphics Products...
  • Page 10 540x360,4P,Bi 12,5 High Speed High Speed 720x720,10P,Bi 540x720,8P,Bi Standard① Standard① 720x1080,12P,Bi 720x720,8P,Bi Standard② Standard② 720x720,10P,Bi 720x1080,16P,Bi High Quality High Quality 720x1080,14P,Bi 720x1440,18P,Bi CJV150-107 CJV150-107 Super Smooth Super Smooth CJV150-75 CJV150-75 720x1440,18P,Bi 1440x1440,20P,Bi ㎡/h ㎡/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 11 2,21 High Qulaity 0,32 High Qulaity 1,60 720x1440,32P,Bi 0,28 720x1440,32P,Bi 1,39 CJV150-107 CJV150-107 Super Smooth 0,19 Super Smooth 0,96 CJV150-75 1440x1440,32P,Bi 0,17 1440x1440,32P,Bi CJV150-75 0,86 ㎡/h ㎡/h *CJV150-75 does not have high speed mode Mimaki Europe B.V. Sign Graphics Products...
  • Page 12 CJV150-75 CJV150-75 0,23 High Quality… 0,61 1440x1440,32P,Bi m²/h m²/h 3-layer printing (Color → White → Color) 0,94 High Speed… 0,82 0,53 Standard①… 0,46 0,32 Standard②… 0,28 CJV150-107 CJV150-75 0,14 High Quality… 0,12 m²/h Mimaki Europe B.V. ㎡/h Sign Graphics Products...
  • Page 13 20,0 540x360,3P,Bi High Speed 540x720,8P,Bi High Speed② 14,3 540x720,4P,Bi Standard① 720x720,8P,Bi Standard① 12,2 720x720,4P,Bi Standard② Standard② 720x720,10P,Bi 720x1080,6P,Bi High Quality High Quality 720x1080,14P,Bi 720x1440,8P,Bi CJV150-107 CJV150-107 Super Smooth Super Smooth 720x1440,18P,Bi 720x1440,10P,Bi m²/h m²/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 14 • Grainy results can be seen at the low • Reflection density is higher at the gradation areas Sb53-DK • low gradation part More smoke generation during heat transfer, compared to the K ink Mimaki Europe B.V. Sign Graphics Products...
  • Page 15 • Initial brightness of SS21 is 67% higher than ES3 Laminate Film Avery DOL2060 • Brightness of SS21 after 3-year acceleration test is still 5% The scratch resistance of SS21 Silver ink is poor. Laminate is advised. higher than ES3’s initial value Mimaki Europe B.V. Sign Graphics Products...
  • Page 16 Target metallic color can be selected from swatch library • 3-type Metallic Color Collection Type B: Booklet Type A: Chart Type C: Patch *Each type of Metallic Color Collection has the same colors. 3-type Metallic Color Collections are available in RL6 Mimaki Europe B.V. Sign Graphics Products...
  • Page 17 Covering approx. 94.8% of the PANTONE coated color chart. 7% more than with 4C only • The large color gamut makes it easy possible to reproduce corporate colors, etc. M C Y Lc Lm Lk Or Mimaki Europe B.V. Sign Graphics Products...
  • Page 18 Comparing print results CMYKLcLm CMYKLcLmLk+Or -120 -100 -80 100 120 Less freshness High reproducibility without Orange ink with bright, fresh CMYKLcLmLkOr Orange CMYK -100 Colors of PANTONE PANTONE近似色 -120 *PANTONE solid chips coated(1085 colors) Mimaki Europe B.V. Sign Graphics Products...
  • Page 19 Smooth color balance without color shifting, reproducing high quality monochrome smooth and clear grey output CMYKLcLm CMYKLcLmLkOr CMYKLcLm CMYKLcLmLkOr • • • Reddish grey • Reddish grey Clear grey No color shift and • • Smooth skin smooth gradation Skin w/grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 20 Transmission density: 0.27 Transmission density: 0.36 Print mode: 720x1440,32P,Bi Print mode: 720x1440,32P,Bi Productivity: 0.9m²/h *White – 200% print Productivity: 2.07m²/h Maximum drop size: 14pl *Light-up, Mimaki logo underneath Maximum drop size: 24pl Media: PET Media: PET Mimaki Europe B.V. Sign Graphics Products...
  • Page 21 Jetting ink drops in straight lines, high accuracy dot placement with almost perfect round dots • Generating less mist • Printing clear and sharp letters, lines, edges, etc. • Waveform is optimized, to reduce the risk of missing nozzles Mimaki Europe B.V. Sign Graphics Products...
  • Page 22 Ink dots overlap and no accurate dot placement Ink dots do not overlap and gives ↓ an accurate dot placement Grainy appearance and uneven density ↓ No grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 23 • This allows printing in not only high resolution printing, for high quality, but also high speed & high density printing for high productivity! Variable dot Normal dot Mimaki Europe B.V. Sign Graphics Products...
  • Page 24 Controls drop size 3-way Intelligent Heater patent No. by heating up media. Japan 4889059 Heater cover 8.444.262 Print-head Print- heater China ZL 200910222559.8 Post-heater Pinch roller Pre-heater Post-heater to ensures faster drying Grid roller Mimaki Europe B.V. Sign Graphics Products...
  • Page 25 Stunning Quality • MAPS3 (Mimaki Advanced Pass System 3) • MAPS3 prints passes in gradation-like tone, by dispersing ink drops between the passes, which reduces banding, uneven drying ink, and bidirectional stripes • MAPS3 works in the higher pass modes of an resolution...

  • Page 26: Continuous Operation

    • When nozzles are clogged, the cleaning is then started automatically • When the clogged nozzle is not recovered by cleaning, the Nozzle Recovery System is then automatically done, and printing starts Mimaki Europe B.V. Sign Graphics Products...
  • Page 27 Nozzle check duration: 50sec./check When the number of missing Nozzle check ink consumption: 192 cc/year* nozzles is higher than the number *Operating Condition: One check/hour x 10-hour operation/day x 240-day in the setup Warning (Standby) Mimaki Europe B.V. Sign Graphics Products...
  • Page 28 Replaces missing nozzles, by working nozzles in other passes • No need for direct service intervention • Makes printing with the same quality possible, even if nozzles are missing Continuous printing by NRS Continuous Operation Down Time Mimaki Europe B.V. Sign Graphics Products...
  • Page 29 • NRS is not changing the printing speed • NRS is not working when: • Printing in low pass modes • Printing in some modes with MAPS3 • The position of the nozzle is not correct Mimaki Europe B.V. Sign Graphics Products...
  • Page 30 • No pollution on the print head caused by ink residue from the wiper • Easier daily maintenance as the wiper is cleaned automatically 1. Washing liquid Wiper Cleaner 2. Wipe out Mimaki Europe B.V. Sign Graphics Products...
  • Page 31 Event Mail Notification • Various information can be sent from printer via email • Read the status of the printer on remote locations, allowing unattended printing Print start/completed Internet Receiving Mail Error/Warning RIP-PC Mobile device Mimaki Europe B.V. Sign Graphics Products...
  • Page 32 Continuous Operation • MCT (Mimaki Circulation Technology) • Stable white and silver ink supply to the printheads • Circulating the white silver inks in the ink line system • Preventing the settlement of pigments • MCT works only when the white and silver inks are installed...
  • Page 33 When using the Sb53 6C ink set, UISS works with M and Bl • Not available with 6C+WW and 8C ink sets • Optional, MBIS3 (Mimaki Bulk Ink System III) • Large volume, 2L ink packs, are placed directly on to the ink station •...
  • Page 34 The diameter of the taken-up media is measured by a censor • This keeps the tension of the media constant Take-up roll switch For manual operation press the button to roll up the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 35 Die cut Dotted line cut Cuts a series of half and die Cut out figures leaving Cuts through the cuts leaving a few minimal backing sheet. backing sheet to cut joints. out the individual figures. Mimaki Europe B.V. Sign Graphics Products...
  • Page 36 The conventional crop marks require 4mm～10mm margins between crop marks. However, the margins between crop marks are eliminated by Zero Margin Crop Mark reducing the media waste. Conventional Crop Mark Zero Margin Crop Mark Margin=Waste * Available in April, 2015 Mimaki Europe B.V. Sign Graphics Products...
  • Page 37 When the production length is less than 1m, P&C is done precisely without using crop marks. • The unused space is minimized to reduce the media waste. Zero Margin Crop Mark P&C/C&P without crop mark unused space Mimaki Europe B.V. Sign Graphics Products...
  • Page 38 Intermediate crop marks of the feed direction are detected, enabling four-point corrections for each segment • This leads to accurate, long-length cutting, even if the image is distorted Segment③ Intermediate crop mark Segment② Intermediate crop mark Segment① Mimaki Europe B.V. Sign Graphics Products...
  • Page 39 When the length of the over cut is set, cutting is performed from the position before the starting point by the specified length and stops after crossing the end point. Setting value: 0.1mm – 1.0mm Mimaki Europe B.V. Sign Graphics Products...
  • Page 40 ①The edge does not peel off ①The edge of peels off ②The cut part does not stick together ②The cut part sticks together again again Drying time is No drying time is required. required. Mimaki Europe B.V. Sign Graphics Products...
  • Page 41 Workflow with Auto pull-back printing ③ Print colors ① Print silver and color plate Result Image for metallic color Metallic blue ② Automatically pull-back media to origin Green Green Silver(Spot color) Blue on top Mimaki Europe B.V. Sign Graphics Products...
  • Page 42 Feed media at the best pressure for each printing and cutting to deliver fine quality • Full automatic function enables unattended operation without manual intervention from the start of printing to the end of cutting Mimaki Europe B.V. Sign Graphics Products...
  • Page 43 • Machine without Automatic media clamp function • Remove pinch roller manually or Always use pinch roller Unattended operation of P&C is not possible Attach pinch Remove pinch Print Print roller manually roller manually Mimaki Europe B.V. Sign Graphics Products...
  • Page 44 Easy to see from an distance Various information is displayed in a graphical manner, such as media width, heater temperature and remaining ink Status LED Blinking in Blue: Normal operation Blinking in Red: Needs attention Mimaki Europe B.V. Sign Graphics Products...
  • Page 45 By attaching the Lift Up Blocks to the casters of machine, the shaking of the machine while printing is prevented. w/o Lift up block w/ Lift up block Lift up the printer and set Lift up block Mimaki Europe B.V. Sign Graphics Products...

  • Page 46: Intuitive Operation

    The web update is available as well as RasterLinkPro5 registered as “My Favorite”. which has been well received. Up to 30 settings can be registered. The program update and the profile download can be done through the web easily Mimaki Europe B.V. Sign Graphics Products...
  • Page 47 RasterLink6 recognizes spot color path as cut line • Crop marks can be attached in RasterLink6 • P&C data creation with RasterLinkTools ①Select images ②Click “Frame Extraction” ③Extracts frames of images and specifies frames as spot color “CutContour” Mimaki Europe B.V. Sign Graphics Products...

  • Page 48: Input Profile

    Input Profile • Input profile “WideMimakiNaturalVivid” is available for reproducing brilliant color for Orange and Light Black ink set. WideMimakiCMYK WideMimakiNaturalVivid WideMImaki2013forSign ・Mimaki’s standard input ・Available from ・Available from JV400LX profile (C)JV300/150 Series Series ・Reproduces brilliant color ・High intensity input profile...
  • Page 49 Options • MBIS3 – Mimaki bulk ink system • OPT-J0364 for CJV150 series • Eco-cartridge needed for BS3 inks • OPT-J0361, 1 set of 4 eco-cartridges, order 2 sets • Anti-static sheet • OPT-J0374 for CJV150-75 • OPT-J0373 for CJV150-107 Mimaki Europe B.V.
  • Page 50 OPT-J0369 for CJV150-75 • OPT-J0368 for CJV150-107 • Air exhaust unit • When ordering the Air exhaust unit, also the Drying fan needs to be ordered! • OPT-J0372 for CJV150-75 • OPT-J0371 for CJV150-107 Mimaki Europe B.V. Sign Graphics Products...

  • Page 51: Specifications

    1x (100V) Max 1440W 1x (220V)Max 1920W Applicable standards VCCI class A / FCC class A / UL60950-1ETL / CE Marking(EMC, Low Voltage and Machinery) CB report / RoHS / REACH・ Mimaki Europe B.V. CCC(pending)・Energy Star / RCM Sign Graphics Products...

  • Page 52: Installation Condition

    4. Ink odor generates. Please use the machine in a well-ventilated environment. 5. Do not install in the place where using a photograph fixer or the place with acid steam like acetic acid, hydrochloric acid. *Installation space for PC is required separately Mimaki Europe B.V. Sign Graphics Products...
  • Page 53 No, its not. There is no setting to set crop mark on RL6. After printing silver plate, the media is automatically pulled back to the origin, then, color plate is printed. Are the cutting accuracy and the throughput of CJV300 and Yes, they are. CJV150 equivalent? Mimaki Europe B.V. Sign Graphics Products...
  • Page 54 CJV30 equivalent? Throughput: Depends on cutting data (Detailed info is prepared separately.) How to print Mimaki Metallic Color Collection? Three types of Metallic Color Collections are stored in a folder of RL6. Please open the file from the folder and print as usual.
  • Page 55 In order to use the Air exhaust unit, the Drying fan unit has to be installed at the same time. What is the precaution when using external heater? Please use a Relay Box to make it work in conjunction with the printer's state. Mimaki Europe B.V. Sign Graphics Products...

  • Page 56: Revision History

    Revision History Version Date Content Drafter 18-11-2004 Final release Johan Spies Do not disclose this page Mimaki Europe B.V. Sign Graphics Products...
