MX-6500N/7500N MEDIA GUIDE
An easy-to-use reference to help you
achieve the best possible output.

Advertisement

Table of Contents
loading

Related Manuals for Sharp MX-6500N

Summary of Contents for Sharp MX-6500N

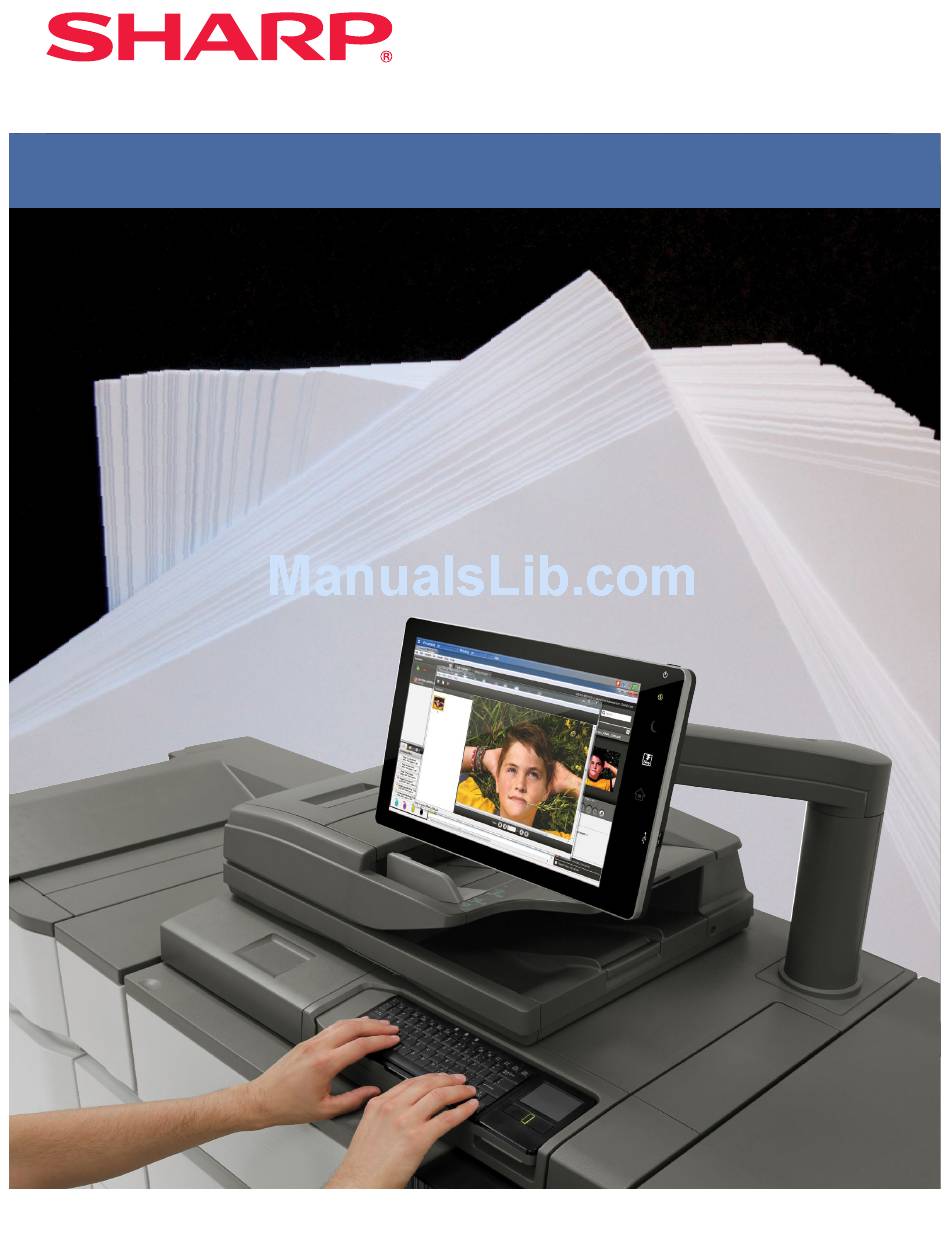

  • Page 1 MX-6500N/7500N MEDIA GUIDE An easy-to-use reference to help you achieve the best possible output.

  • Page 2: Table Of Contents

    CONTENTS Introduction Proper Paper Handling Recommended Paper and Other Media (tested by Sharp) Available Paper and Media (that meets specification) Paper that is Not Supported Proper Paper Settings Supported Paper Types and Weights by Input/Output Location Supported Paper Sizes by Input/Output Location...

  • Page 3: Introduction

    PC or mobile device, users can quickly navigate to different sections by clicking on the hyperlinks throughout the guide. Although every possible effort has been made by Sharp to rigorously test a wide variety of media types, it is virtually impossible to thoroughly test every single media type available. Therefore, for your convenience, we have tested some of the more common brands in the market.

  • Page 4: Proper Paper Handling

    Do not open the wrapper until the user is ready to load the paper into the MX-6500N/7500N Document System. The ream wrapper has an inner lining that guards against moisture absorption. Once it is opened, the protective barrier is gone and moisture can seep in and cause excessive curl and other problems.

  • Page 5: Recommended Paper And Other Media (Tested By Sharp)

    NewPage Futura Laser Dull 100 Text (100 lb. Book) Embossed Paper NEENAH ® Classic ® Linen Solar White (80 lb. Book) Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 6: Available Paper And Media (That Meets Specification)

    Oki Data Banner Paper 52207901 8.5" x 35.4" Banner Paper Oki Banner Paper 52209101 11.69" x 47.24" Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 7: Paper That Is Not Supported

    Pre-folded, curled or torn paper • Corrugated paper because of moisture absorption • Prohibited transparency (Ex: SF4A6CS, SF4A6FS) Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 8: Proper Paper Settings

    (4) Glossy paper settings are based on NewPage Futura Laser Dull 100 Text (100 lb. Book) paper. continued on next page... Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 9 Setting up custom entries will help achieve optimal results and will provide operators with ultimate control of the finished product. Please consult the operator’s guide and/or contact your Sharp representative for full instructions on how to set up a custom Paper Property entry. Selectable Paper Characteristics •...

  • Page 10: Supported Paper Types And Weights By Input/Output Location

    Heavy Paper 4 257-300 g/m Embossed Paper Tab Paper * OHP/Label Glossy Paper * Letter tab width 6.1-17mm Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 11 Heavy Paper 4 257-300 g/m Embossed Paper Tab Paper * Labels/Glossy Paper * Letter tab width 6.1-17mm Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 12 Heavy Paper 3 221-256 g/m Heavy Paper 4 257-300 g/m Embossed Paper Tab Paper Label Glossy Paper Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 13 (Cover) 1 sheet + 90 g/m 19 sheets. *3: Printing is only available on inner side of folded sheet. Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 14 Heavy Paper 3 221-256 g/m Heavy Paper 4 257-300 g/m Embossed Paper Tab Paper Label Glossy Paper Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 15 Heavy Paper 3 221-256 g/m Heavy Paper 4 257-300 g/m Embossed Paper Tab Paper Label Glossy Paper Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 16 Heavy Paper 4 257-300 g/m Yes (Cover) Embossed Paper Tab Paper Label Glossy Paper Yes (Cover) Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 17: Supported Paper Sizes By Input/Output Location

    8.5" x 11" 8.5" x 11R" 5.5" x 8.5" 5.5" x 8.5R" * Setting for USA Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 18 * Requires MX-LT10 Long Paper Feeding Tray (without banner paper enabled, maximum length is 488mm/19.2 inches). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 19 * Requires MX-LT10 Long Paper Feeding Tray (without banner paper enabled, maximim length is 488mm/19.2 inches). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 20 Banner paper (W) 90-330/(L) 489-1,200mm * Without banner paper enabled, maximim length is 488mm/19.2 inches). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 21 * Limited to custom size where length is longer than width. ** 1200mm/47.24 inches when banner paper is enabled. Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 22 Custom range Max Y (Sub scan - width) Banner Paper (W): 90 to 305/(L): 489 to 1,200mm Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 23 Custom range Max Y (Sub scan - width) 330 (13") 330 (13") Banner Paper (W): 90 to 305/(L): 458 to 1,200mm Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 24 Banner Paper (W): 90 to 305/(L): 489 to 1,200mm * 1200mm/47.24" when banner is enabled. Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 25 Paper Weight (Minimum/Maximum) 18 lb Bond/140 lb Index Cover Feeder Capacity 200 Sheets (20 lb Bond) Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 26: Throughput Speeds

    * When set for thin paper (8.5" x 11" Simplex), scan speed is 45 sheets/minute (mono) and 33 sheets/minute (color). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 27 LCT/MBT (feeding direction) over 11.7" Custom Size length Trays 1-4 (feeding direction) over 11.7" Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 28 * Heavy Paper: #1 (106-176 gsm), #2 (177-220 gsm), #3 (221-256 gsm), #4 (257-300 gsm). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 29 * Heavy Paper: #1 (106-176 gsm), #2 (177-220 gsm), #3 (221-256 gsm), #4 (257-300 gsm). Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 30: Paper Capacities By Input/Output Location

    80 sheets 20 sheets Tab Paper 40 sheets 20 sheets Glossy Paper 1 sheet Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 31 (w x d x h) 338mm x 195mm x 107mm (13.3" x 7.7" x 4.2") Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 32 (plain paper) or ~ 97mm (coated paper) (Z-Fold/2-Fold) Mix mode 8.5" x 14" continued on next page... Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 33 With cover paper Plain paper (more than 81.4-105 g/m ): 1-10 sheets: 10 sets Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 34 The following paper sizes are excluded: Auto Inch: 8.5" x 13.4", 8.5" x 13.5", 8.5" x 14", 8.5" x 11R"; Auto AB: 8.5" x 13", 8.5" x 13.4", 8.5" x 13.5" Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.
  • Page 35 Top tray: Not available; Stacking tray: 5 levels - 0% / 25% / 50% / 75% / 100% Number of units connected in tandem 2 units maximum can be connected Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 36: Paper Weight Conversion Charts

    Metric to inch (industry standard sizes are in bold) Bond newSprint Book Cover BriStol index Bond newSprint Book Cover BriStol index Recommended PaPeR SuPPoRted PaPeR tyPeS SuPPoRted PaPeR SizeS thRoughPut SPeedS PaPeR caPacitieS conveRSion chaRtS Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 37: Sharp Mx-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All Rights Reserved

    NOTES Sharp MX-6500N/7500N Media Guide © 2015 Sharp Electronics Corporation. All rights reserved.

  • Page 38: 2015 Sharp Electronics Corporation. All Rights Reserved

    M X - 6 5 0 0 N / 7 5 0 0 N M e D i a G U i D e SHARP ELECTRONICS CORPORATION Design and specifications are subject to change without notice. Sharp is a 1 Sharp Plaza, Suite 1 registered trademark of Sharp Corporation.
