Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258
CONTENTS:
Notices
PCB assy - Preamp
PCB assy - Pwr amp
PCB assy - Rear
Schematics/drawings
p/n 022-4504-000 (120V)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bassman 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Fender Bassman 200

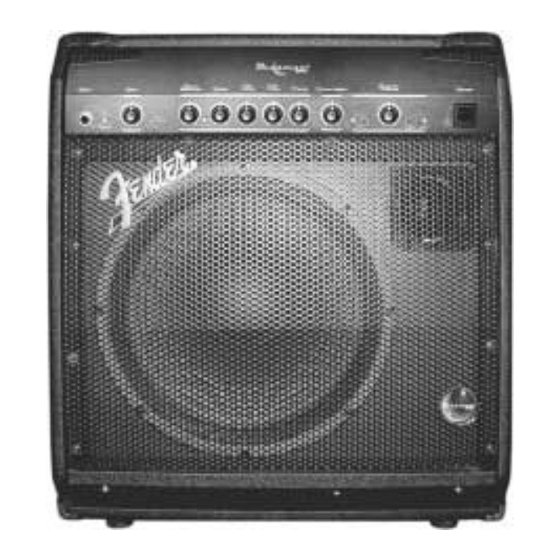

Summary of Contents for Fender Bassman 200

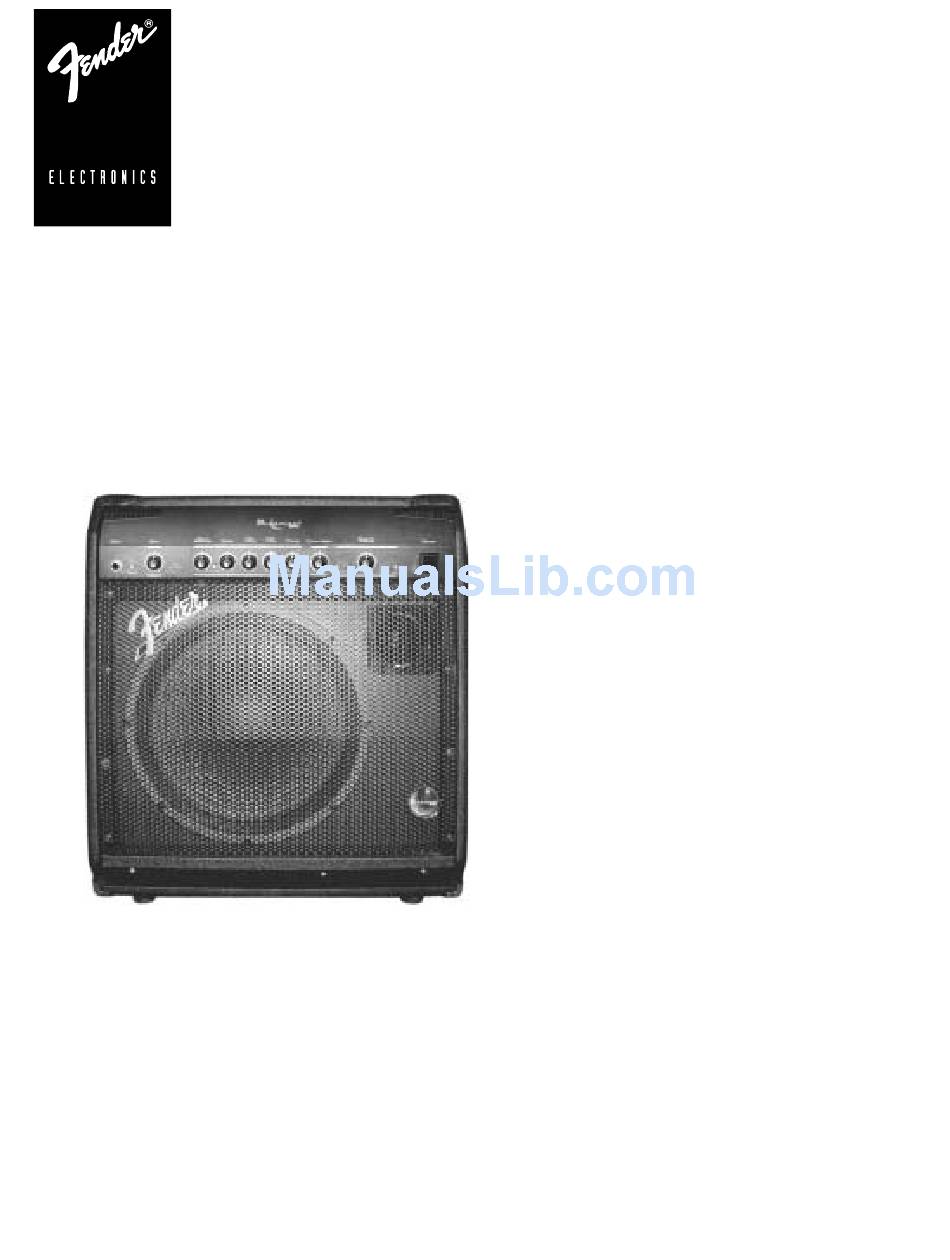

  • Page 1: Table Of Contents

    CONTENTS: Notices Specifications Service notes Parts lists: PCB assy - Preamp PCB assy - Pwr amp PCB assy – Rear Chassis assembly Cabinet assembly End item Crossover assembly Schematics/drawings Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258...

  • Page 2: Bassman 200

    Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair.

  • Page 3: Specifications

    Effects Loop: Send impedance: 1kΩ Return impedance: 22kΩ Nominal level: +4dbu Speakers: Fender special design 4Ω 15" woofer (P/N 0048941000) One Foster 8Ω Horn (P/N 0048847000), FUSE: 2A 250V Dimensions: Height:25.5" (65 cm) Width: 23" (59 cm) Depth: 13" (33 cm) Weight: 65 lbs.

  • Page 4: Service Notes

    BASSMAN 200 SERVICE NOTES CHASSIS REMOVAL is accomplished by first removing six (6) screws from the top, and one (1) screw from each side of the cabinet; then slide the chassis out the rear. The HF HORN is fuse-protected. This fuse is located on the rear speaker panel, near the Horn-...
  • Page 5 LED GREEN T-1 3mm DIFFUSED 0040271000 LED RED/YELLOW 0049948000 LED, RED LONG LEAD LUMEX D21 D28 0055798000 PCB FAB BASSMAN 200 PREAMP 0025073001 RES CF 1/4W 1.5M 5% R55 R108 R110 0024952001 RES CF 1/4W 100 ohm 5% 0024997001 RES CF 1/4W 100k 5%...
  • Page 6 0016739003 XSTR NPN 2N4401 TO-92 Q3-4 Q8 0016742003 XSTR PNP 2N4403 TO-92 Q5-7 Q9 0055800000 SVC DIAG, CMB, BASSMAN 200 PREAMP PRINTED CIRCUIT BOARD ASSEMBLY – POWER AMP PART # DESCRIPTION REFERENCE DESIGNATION 0048914000 CABLE RIBBON 8 CKT 7 in...
  • Page 7 XSTR PNP 2SA1837 TOP-220 0014866003 XSTR PNP MPSW92 TO-226AE 0025752003 XSTR PNP SILICON TO_92 Q2 Q6-7 0055792000 SVC DIAG, CMB, BASSMAN 200 POWER AMP PRINTED CIRCUIT BOARD ASSEMBLY – REAR PART # DESCRIPTION REFERENCE DESIGNATION 0048451000 BUTTON PUSH OFF WHITE...

  • Page 8: Chassis Assembly

    0051658000 JACK MONO R/A 0053450000 JACK STEREO R/A J1-2 0054261000 JACK XLR MALE RT ANGLE 0056475000 PCB FAB BASSMAN 200 REAR PCB 0024997001 RES CF 1/4W 100k 5% R43-44 R49-50 R54 R64 0024981001 RES CF 1/4W 10k 5% R57-58 0024937001...

  • Page 9: Cabinet Assembly

    PART # DESCRIPTION REFERENCE DESIGNATION 0055946000 CABINET ASSEMBLY BASSMAN 200 0023513000 CASTER SWIVEL 0055786000 CHASSIS ASSY BASSMAN 200 100V JPN 0055783000 CHASSIS ASSY BASSMAN 200 120V 0056543000 CHASSIS ASSY BASSMAN 200 220V ROK 0055784000 CHASSIS ASSY BASSMAN 200 230V EUR/UK 0055785000...

  • Page 10: Crossover Assembly

    @CLAMP 0029527000 WSHR FNSH 8-5/8 FLNGD BLX WX @CHASSIS 0055800000 SVC DIAG COMB BASSMAN 200 PREAMP 0055793000 SVC DIAG COMB BASSMAN 200 PWR AMP 0056473000 SVC DIAG COMB BASSMAN 200 REAR PCB CROSSOVER ASSEMBLY PART # DESCRIPTION REFERENCE DESIGNATION 0041304000 CAP MPF AX 3.3uF 100V 10%...
