Summary of Contents for DoorHan SHAFT-30
- Page 1 sHaFt-30...
- Page 2 OUTLINE 1. main technical parameters .......................3 2. General description ..........................3 3. main structure..........................4 4. safety instructions ...........................5 5. installation ............................6 6. Electrical ............................9 7. adjustment limit switch ........................12 8. Hand chain ............................14 9. maintenance ............................15 10. troubleshooting ..........................15 in s ta l l at i o n ma n u a l s H aF t -3 0...

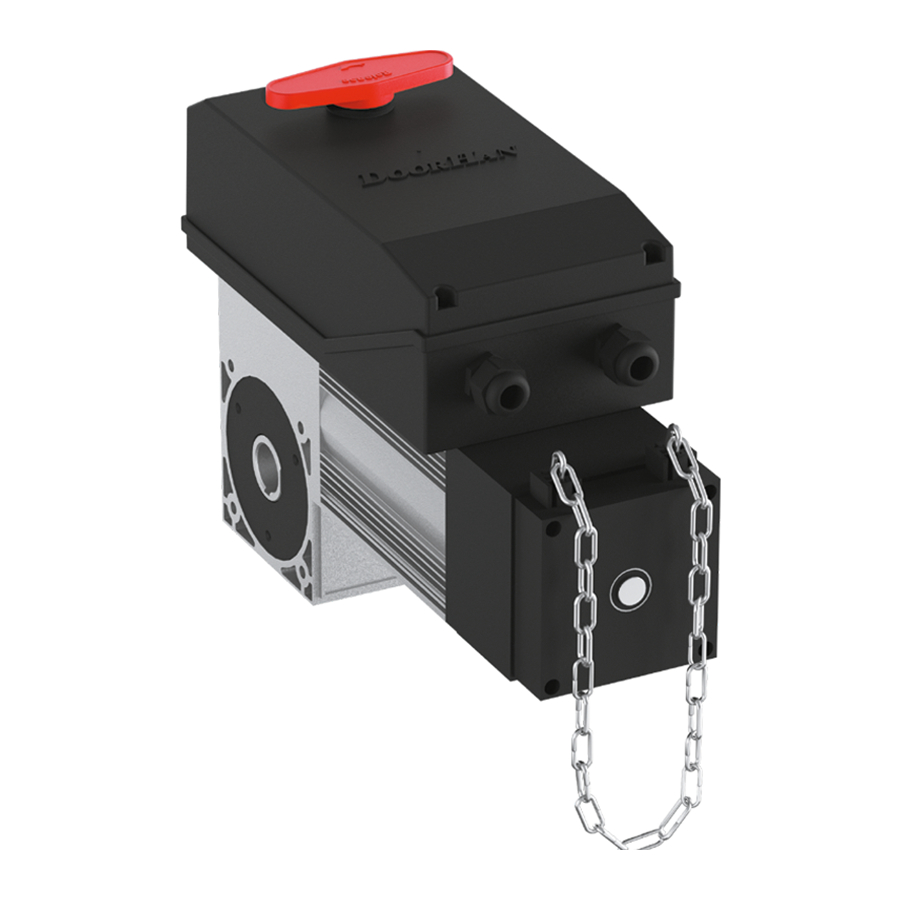

- Page 3 4 min Working time 2: 0,5 = 120 seconds 2. General description shaft-30 door operator is applied widely to garages, industrial or commercial buildings. it is featured with compact structure, safe and reliable performance. Main function • auto brake system: it makes the motor stop fast and accurately.
-
Page 4: Safety Instructions
safETy INsTrUcTIONs 4. Safety instructions • it is important that you read all the following instruction: • the door operator should be installed and put into operation by qualified personnel. otherwise, serious personal injury or property damage may occur. • open and close the door manually, make sure the door can be moved smoothly. - Page 5 INsTaLLaTION install the bigger sprocket wheel onto the door shaft end. Fix the bracket on the wall with expansion bolts according to the length of the chain. attach the door operator on the bracket with four m10 bolts. thread up the chain by adjusting the position of the operator. 6.
- Page 6 ELEcTrIcaL inputs terminal board and power supply to accessories connector for radio receiver (see note) (not used) motor terminal board 230 V ac power supply terminal board limitswitch terminal board signalling key transformer 5a 250 V(motor protection) selfresetting (accessories protection ) •...
- Page 7 haNd chaIN Fine adjusting (Setting of the close limit) • the adjusting bolts are used for fine adjustment. • after rough adjustment, you can close the door and observe whether the door has successfully reached the closed position. if need, fine adjust the adjusting blots in the red limit cams carefully to make the door reach the closed position, anticlockwise to close more, clock- wise to close less.
- Page 8 120 Novaya street, Akulovo village, Odintsovo district, Moskow region, 143002 Russia Tel: +7(495)933–2400, 981–1133 E–mail: info@doorhan.ru www.doorhan.com...
