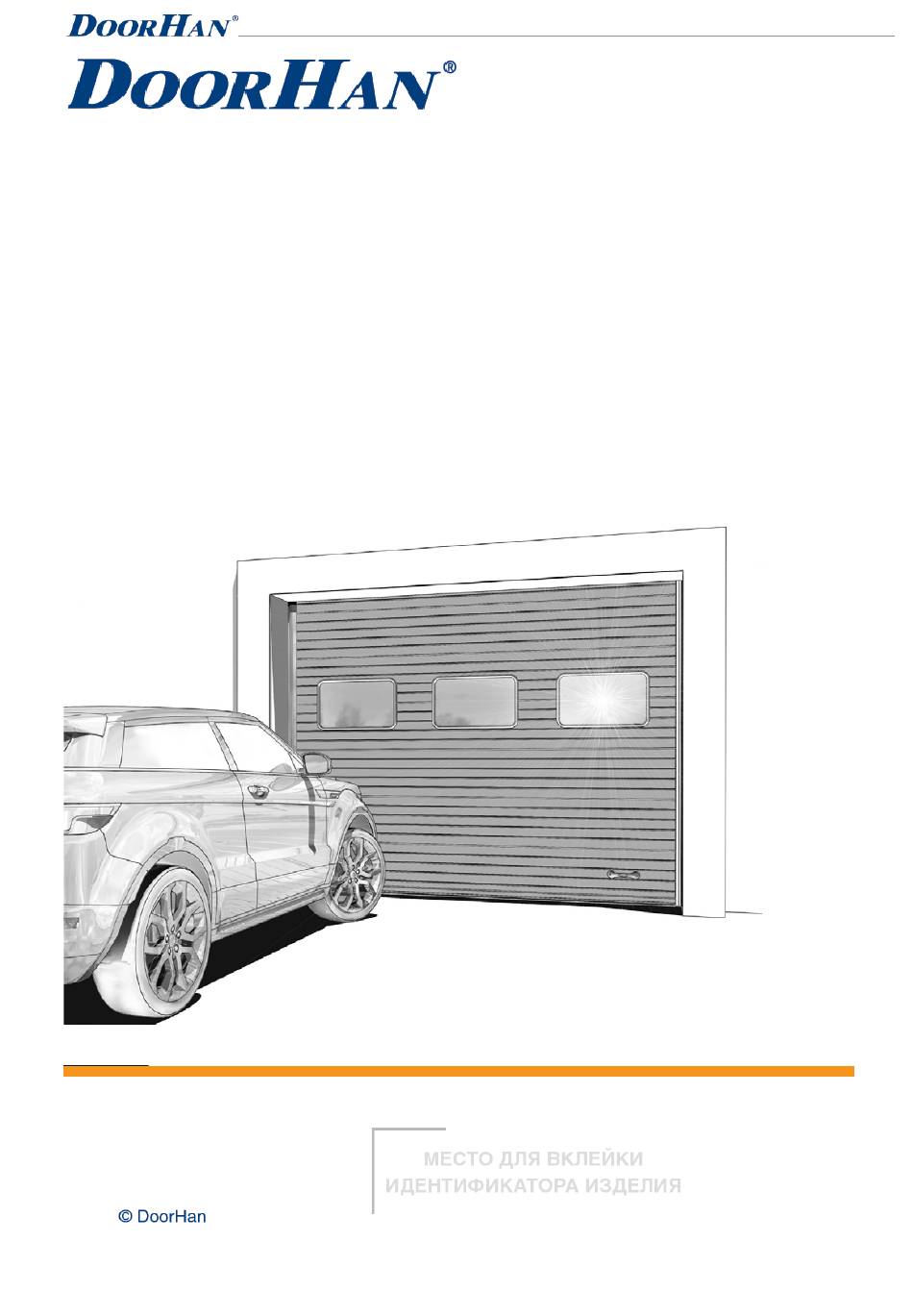

    PROCEDURE FOR FILLING UP THE SERVICE BOOK THE DOOR DESIGNATION THE DOOR DESIGN FEATURES THE DOOR OPERATION SEQUENCE THE USE OF THE DOOR THE MAINTENANCE SERVICE THE WARRANTY THE DOORHAN SECTIONAL DOOR SERVICE BOOK A PLACE FOR THE PRODUCT IDENTIFIER...
  • Page 3 Dear Customer! Congratulations on your purchase of products of the GK DoorHan. You can be sure that you are owner of the modern steel door, designed and manufactured in accordance with the international norms and standards. We hope that this purchase would be a successful beginning of our cooperation.
  • Page 4 THE CONTENTS Page A PROCEDURE FOR FILLING UP THE SERVICE BOOK ..........5 1.1. The Installation Certificate ................... 5 1.2. The Service Maintenance and Repair Certificate ............6 THE DOOR DESIGNATION ....................8 THE DOOR DESIGN FEATURES ..................8 3.1. The door construction ....................8 3.2.

  • Page 5: Aprocedure For Filling Up The Service Book

    A PROCEDURE FOR FILLING UP THE SERVICE BOOK This Service Book is a must-have application to a set of the sectional door of the GK DoorHan, and contains information about your product, operation sequence and requirements for use of the product, and warranty conditions.

  • Page 6: The Service Maintenance And Repair Certificate

    1.2. The Service Maintenance and Repair Certificate Company / signature of the Date List of work responsible person...
  • Page 7 Company / signature of the Date List of work responsible person...

  • Page 8: The Door Designation

    THE DOOR DESIGNATION The sectional door is designed to cover the entrance of the building opening to restrict access and to protect the premises from the effects of the environment and the noise. THE DOOR DESIGN FEATURES 3.1. The door construction The general construction of the sectional door consists of the following elements: a leaf, a leaf balancing system and a guides system, the form of which determines the type of lifting.

  • Page 9: The Door Configuration

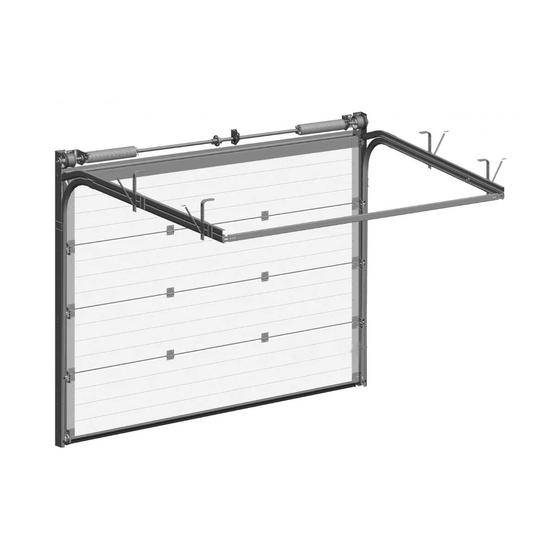

    3.2. The door configuration 3.2.1. The door structure of the series RSD01S, RSD01, RSD02, Yett 01S, Yett 01, Yett 02, Yett 02-30 Name Name Shaft Installation profiles Drums Hinges Terminal U-shaped support bracket Top seal Top Aluminum profile Side caps Guides Panels Side support with rollers...

  • Page 10: The Door Structure Of The Series Isd01, Isd02

    3.2.2. The door structure of the series ISD01, ISD02 Name Name Shaft Windows Drums Side caps Terminal U-shaped support bracket Sandwich panel / Panoramic panel Top Aluminum profile Lock * Horizontal tracks Handle Side support with rollers Bottom bracket Guides Bottom Aluminum profile Balancing spring mechanism C-profile...

  • Page 11: The Door Operation Sequence

    THE DOOR OPERATION SEQUENCE 4.1. The door operation without the motor drive 4.1.1. The opening the door 4.1.1.1. The opening the door from outside of the premises 1. Insert the key into the lock 2. Make one turn of the key 3.

  • Page 12: The Closing The Door

    4.2.1. The ceiling motor drives of the series Sectional and Fast WHEN USING A CEILING MOTOR DRIVE WITH THE DOOR INSTALLED IN A ROOM WITHOUT ADDITIONAL ENTRANCE, BE SURE TO USE AN EXTERNAL RELEASER DOORHAN. * When locking device of the mechanical latch is available.

  • Page 13: The Remote Control

    4.2.1.1. The remote control The opening, closing and stop of the door in an intermediate position is carried out by pressing the remote control buttons. Stop in the extreme positions is carried out in accordance with the integrated speed sensor. When the door is closed, the motor drives of the series Sectional and Fast perform the function of a lock.

  • Page 14: The Manual Control

    4.2.2.2. The manual control 4.2.2.2.1. The control with use of the chain gearbox The motor drives of the series Shaft are equipped with a manual chain gearbox, which is used in cases of emergency opening/closing the door when disconnecting the power supply. Extend or shorten the chain so that in the assembled condition its end would be at the height of 50-150 cm from the floor surface.

  • Page 15: The Use Of The Door

    In order to open and close the door manually, turn the releaser lever clockwise as far as it will go (Fig. 3a). In this case, the power supply to the drive will be stopped. To return to the door automatic control, turn the releaser lever in the opposite direction as far as it will go (Fig.

  • Page 16: The Maintenance Service

    • Make sure that when driving the door leaf, there are no foreign objects and debris in the doorway. Their presence can cause an imbalance and jamming of the door. • To avoid injury, do not touch with the hands the running parts of the door (rollers, lateral supports, panels, etc.).

  • Page 17: The List Of Scheduled Maintenance Service Works

    The technical maintenance service is to be carried out by the company that has sold the door, or by a GK DoorHan's service center, certified to perform the work on maintenance service of the equipment manufactured or sold by the GK DoorHan.
  • Page 18 Item Element Criterion Actions Inspection. If there is a Double glass of the No damage, integrity, Door leaf damage, replace. Fix, if panoramic panels fixation reliability necessary Check and fix, if necessary. Roller Roller support Fixation reliability Grease. On falling out the pin, supports replace with the...
  • Page 19 Item Element Criterion Actions Torsion Check, if necessary, tighten Bolted joints Fixation reliability mechanism the loose connections Check wire-lines for breaks Wire-line Bent and damaged wires and damage. Replace, if necessary Check the tightness, tighten Wire-line the mounting screws on the drums.
  • Page 20 Item Element Criterion Actions External inspection for defects of the body. Check the integrity of the filament lamp, cap and lamp holder. Check the connecting Signal lamp contacts to the drive control board. Check the integrity of the wiring. Replacement criteria: serious mechanical damage, burned lamp board External inspection for defects...
  • Page 21 Item Element Criterion Actions Hinges Fixed position Check and fix, if necessary Check and, if necessary, fix Fixation reliability, Lock and grease the internal functionality elements Wicket-door Check the functionality and Door closer Functionality adjust, if necessary Wicket-door Check the functionality and Functionality sensor replace, if necessary...

  • Page 22: The Warranty

    THE WARRANTY 7.1. The warranty period The Buyer of a GK DoorHan sectional door benefits of an operation performance warranty for a period of one year from the date of the ex works delivery of the door. REGISTRATION OF THE IDENTIFICATION...
  • Page 23 The warranty repairs are carried out by the authorized company that has sold the product , or by a GK Doorhan service center , certified to perform the maintenance service work of the equipment manufactured or sold by GK DoorHan .
  • Page 24 REMARKS ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________...
  • Page 25 ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________...
  • Page 26 ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________...
  • Page 28 (CALL FREE IN RUSSIA) 143002, Russia, Moscow Region, Odintsovskiy District. Akulovo Village, Novaya Str., Bldg. 120 Phone: +7 (495) 933-24-00, 981-11-33 E–mail: Info@doorhan.ru www.doorhan.ru • Almaty + 7 (7172) 97-80-48 • Astana + 7 (7172) 97-80-48 • Volgograd + 7 (8442) 26-21-22 •...
