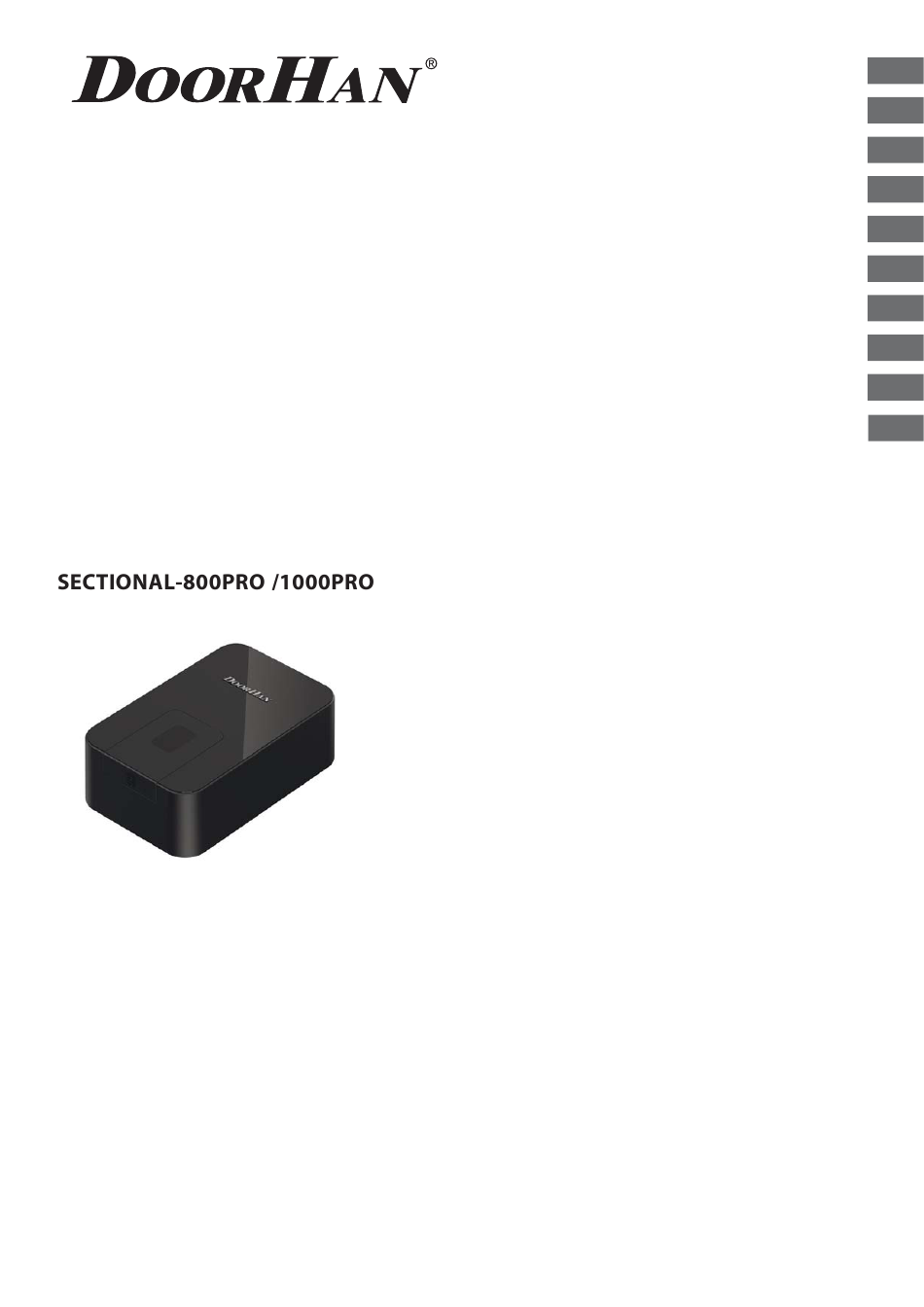

- Page 1 CONTENTS GENERAL INFORMATION SAFETY INSTRUCTIONS OPERATOR UNIT OPERATOR INSTALLATION ELECTRICAL CONNECTIONS MANUAL OPENING MAINTENANCE TROUBLESHOOTING APPENDIX OPERATOR Installation and Operating Manual Actual versions soft - v 1.0 © DoorHan, 2016 pcb - v 1.0...
-
Page 2: Table Of Contents
GENERAL INFORMATION CONTENTS GENERAL INFORMATION ..............................2 1.1. Specifications ................................3 1.2. Operator package ................................3 1.3. Track .................................... 3 SAFETY INSTRUCTIONS ..............................4 OPERATOR UNIT .................................. 5 OPERATOR INSTALLATION ..............................6 4.1. Tools .................................... 6 4.2. -
Page 3: Specifications
WARNING! If there are wicket, glass or non standard parts it is recommended to provide reserve till 20% of maximal DoorHan sectional doors square. 1.2. OPERATOR PACKAGE When you receive your Sectional-800PRO/1000PRO operator, unpack it and check that the operator is not damaged. If any damages are found, contact the operator supplier. -
Page 4: Safety Instructions
You should use additional DoorHan accessories, since the accessories of third party manufacturers can damage the automatic system. DoorHan is not liable for unstable work of the automatic system, if you use safety devices and accessories, produced by other manufacturers without securing approval of DoorHan. -
Page 5: Operator Unit
OPERATOR UNIT RISK OF INJURY! WARNING! Have a qualified technician lay the cables 230 V AC. The cables must be laid in protective corrugated tubes. In case of supply cable damage, use the suitable type of the cable. Cables needed for installation of sectional-800/1000PRO operator and accessories (if available) Cable 2 ×... -
Page 6: Operator Installation
OPERATOR INSTALLATION 4. OPERATOR INSTALLATION 4.1. TOOLS Set of spanners Set of drills for concrete Electric drill Set of slotted and cross screwdrivers Pliers Tape measure (folding rule) Set of drills for metal Hacksaw for metal 4.2. REQUIRMENTS TO DOOR INSTALLATION 45 mm Prior to installation check if the door is properly balanced and moves smoothly when... -
Page 7: Track Installation
OPERATOR INSTALLATION 4.4. TRACK INSTALLATION The operator suspension height is determined by the maximum lift of upper edge of the door leaf. After preliminary assembly (see p. 4.3) you can start to install the track: If it is required to shorten a guide, it is necessary to fulfill operations, described in Appendix 1. You should mark a vertical line, corresponding to the horizontal door centre (fig. -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS 5. ELECTRICAL CONNECTIONS 5.1 Control block specifications Parameters Units Power supply 180-240 V/50-60 Hz Power supply of accessories 24 V DC Maximal current of accessories 200 mA Working temperature range –20…+55 °C Radio control frequency 433,92 MHz Operating logics Automatic/Semi-automatic Connectors Open button/Safety devices... - Page 9 OPERATOR PROGRAMMING PREPARATION Block the carriage. Turn on power, the indicator of the operator will light, sound signal will be heard. If programming has not been completed, the settings will not be stored. If there is a mistake in one of the settings, you can turn off power and reprogram.
- Page 10 OPERATOR PROGRAMMING ABSOLUTE CYCLE COUNTER Press «+» «5» will light, press The 1st digit will be The 2nd digit will be «P» displayed displayed When entering the 5th point of menu, two digits will be displayed sequentially. After having displayed the digits, the program returns to main menu.
-
Page 11: Remote Control Programming
RECORDING OF DOORHAN REMOTE CONTROL INTO RECEIVER 1. Press and hold the “R” button, until the indicator “0” appears on the display. Release the button. -
Page 12: Manual Opening
MANUAL OPENING 6. MANUAL OPENING OPENING BY MEANS OF INTEGRATED CARRIAGE RELEASING DEVICE Manual disengagement of automatic system Manual door control Figure Locked position Pull the cord down and Unlocked position move the rod to the position shown in the Figure Automatic door control Figure... -
Page 13: Maintenance
The Sectional-800PRO/1000PRO automatic system does not require any special servicing. Repairs may be carried out only by a qualified technician trained and certified at an authorized DoorHan centre. Be sure that after completion of installation the installer has shown the user how to release the door in case of emergency and has given instructions on proper operation and maintenance of the automated system. -
Page 14: Appendix
APPENDIX APPENDIX GUIDE CUTTING Unpack a guide and inspect it. Make sure that the guide is not damaged. If you have found any damages, please contact the supplier. Disassemble a chain tensioner mechanism, pos. 1 (fig. 1). Fig. 1 Unfasten screws of a sprocket holder, pos. 2 (fig. 2). Fig. - Page 15 APPENDIX Disassemble a support, pos. 4, into two parts (fig. 4). Fig. 4 Cut the guide and shorten the chain to the required dimensions (fig. 5). Fig. 5 After cutting assemble the guide in reverse order.
- Page 16 FOR NOTES...
- Page 17 FOR NOTES...
- Page 18 We very much appreciate that you have chosen the product manufactured by our company and believe that you will be satisfied with its quality. www.doorhan.com...
