- Page 1 Electric wheelchair Model 1.617 Operating manual W e m o v e p e o p l e .
-
Page 2: Table Of Contents
Contents Introduction Indications Specifications Acceptance Adjustment Life span Overview Model 1.617 Handling the electric wheelchair Securing the electric wheelchair Functional checks Driving Brakes Service brake Braking the wheelchair Parking brake Locking the brakes Releasing the brakes Drive-/push mode Selecting the push mode... - Page 3 Leg supports Calf belt Removing the calf belt Attaching the calf belt Length adjustment of the calf belt Lower leg support Footplates Footboard Leg support upper part Turning the leg supports to the side Swivelling in the leg supports Removing the leg supports Attaching the leg supports Mechanically height-adjustable leg supports Lifting/lowering the leg support...
- Page 4 Electrically adjustable back support Folding down the electrically adjustable back support Unfolding the back support Back support upholstery Secure positions of the back support Seat Seat pad Seat cushion Seat inclination Electrically adjusting the seat angle Seat height adjustment Retaining strap Head support Adjustment of the head support USB connector socket...
- Page 5 Technical data Kilometric performance Hill climbing ability Model 1.617 Meaning of the labels on the electric wheelchair Meaning of the symbols on the type plate Inspection certificate Warranty / Guarantee Warrantee / Guarantee section Inspection certificate for transfer...
-
Page 6: Introduction
PDF-files of above mentioned documents electric wheelchair from this series. on our website under: With all equipment and their accessories < www.meyra.com >. the electric wheelchair offers the respective ☞ Contact your specialist dealer when re- adaptation to your disability. -
Page 7: Indications
INDICATIONS ACCEPTANCE If the following indications occur we rec- All products are checked for faults in the ommend the application of this mobility factory and packed in special boxes. product: ☞ Note: ☞ Walking disability resp. extremely lim- However, we request that you check ited walking ability as part of the ba- the vehicle for possible transport dam- sic need to move around in your own... -
Page 8: Use
ADJUSTMENT The electric wheelchair, with attached leg The specialist workshop will hand out the supports and arm supports, serves exclu- electric wheelchair to you under considera- sively for the conveyance of one sitting per- tion of all relevant safety instructions, ready son. -
Page 9: Life Span
LIFE SPAN We expect an average life span of about 5 years for this product, as far as the product is applied for its designated purpose and all maintenance and service guidelines. The life span of your product depends upon the frequency of use, the application envi- ronment and care. -
Page 10: Overview

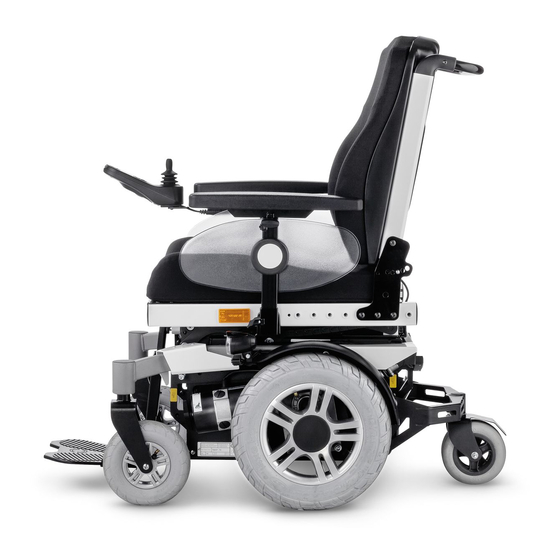

OVERVIEW Model 1.617 The overview shows the most important components and operating devices of the electric wheelchair. Pos. Description (1) Back support (2) Arm support (3) Seat cushion (4) Leg support (5) Calf plate (6) Footplate (7) Steering wheel (8) Selection lever drive-/push mode... -
Page 11: Handling The Electric Wheelchair
HANDLING THE ELECTRIC BRAKES WHEELCHAIR Service brake Securing the electric wheelchair The motors work electrically as operating brake and carefully brake the electric wheel- The electric wheelchair is to be secured as chair down without jerks to stillstand. follows to prevent it from rolling off unin- tentionally: Braking the wheelchair Switch the selection lever for drive-/... -
Page 12: Locking The Brakes
Locking the brakes To engage the brakes swivel the selection lever drive-/push mode on both sides down as far as possible into drive mode [1]. ☞ Activation of the selection lever is in- tended for an accompanying person. Attention: It should not be possible to push the electric wheelchair forward when the brakes are engaged. -
Page 13: Drive-/Push Mode
Drive-/push mode Attention: Only switch the electric wheelchair to push mode when it is standing still for positioning or in case of emergencies, but not on slopes/hills. ☞ The electric magnetic brakes are switched off in the push mode. – A braking of the electric wheelchair is then only possible by switching to the drive mode. -
Page 14: Selecting The Operation
SELECTING THE OPERATION In order to obtain operational readiness of the electric wheelchair the following direc- tions are to be carried out in the indicated order. ☞ Note: Charge the drive batteries via the oper- ating module before the first journey. Selecting the motor mode Switch the drive motors to the drive mode [1]. - Page 15 Position of the operating module ☞ The operating module should be positioned in such a way that you can comfortably and safely steer the electric wheelchair. ☞ The distance of the operating mod- ule to the padded arm supports can be adjusted after loosening the clamping screw (3).
-
Page 16: Pre-Operation Checks
Pre-operation checks Before starting to drive, the following should be checked: ☞ the battery charging condition, ☞ the setting of the preselected final speed. – For this observe the operating manual < Operating module >. Battery charging procedure ☞ For the battery charging procedure also observe the operating manual of the battery charger. -
Page 17: Positioning The Operating Module
Positioning the operating module Function description You will find a detailed description of the keys and symbols in the operating manual for < Operating module >. The position of the operating module can be adjusted to suit the individual size of the user. -
Page 18: Swivelling The Operating Module
Swivelling the operating module With the optional swivel away operating module adapter [1] the operating module can be swivelled back to the side (2) so that it is located parallel to the arm support. This makes it possible, for example: –... -
Page 19: Leg Supports
LEG SUPPORTS Attention: Before any actions on the leg supports the wheelchair is to be secured against unintentional rolling motions. ☞ Therefore observe chapter Securing the electric wheelchair on page 11. Calf belt The removable calf belt (1) prevents the feet from sliding off the back of the footplates. -
Page 20: Lower Leg Support
Lower leg support The footplates, resp. footboard needs to be folded up before entry or exit [1]. ☞ Check the locking points! – Remove both feet from the footplates. – Remove the calf belt (2), if present. ☞ Therefore observe chapter Calf belt on page 19. -
Page 21: Leg Support Upper Part
Leg support upper part The upper leg support with an inserted lower leg support is termed leg support. Turning the leg supports to the side For easy transfer out of/into the wheelchair as well as driving closer to a closet, bed or bathtub the leg supports can be swivelled inward [1]. -
Page 22: Swivelling In The Leg Supports
Swivelling in the leg supports For inward swivelling, let the leg supports swivel forward until the lock audibly engag- es [1]. ☞ Note: After audibly swivelling the leg sup- ports inward check the respective lock- ing device. ☞ Afterwards observe chapter Lower leg support on page 20. -
Page 23: Removing The Leg Supports
Removing the leg supports For easy transfer into and out of the electric wheelchair as well as a reduced wheelchair length (important for transport) the leg sup- ports can be removed [1]. ☞ Note: Remove the calf belt before swivelling away the leg supports. -
Page 24: Mechanically Height-Adjustable Leg Supports
Mechanically height-adjustable leg supports Attention: Never put the free hand into the adjust- ment mechanism while adjusting the height adjustable leg support. – Dan- ger of crushing! • Have the leg support that is to be ad- justed secured against falling away by an accompanying person. -
Page 25: Electrically Height-Adjustable Leg Support
Electrically height-adjustable leg support The electrically height adjustable leg sup- port [1]+[2] automatically receives electric contact when hooked on. Attention: Never put the free hand into the adjust- ment mechanism while adjusting the height adjustable leg support. – Dan- ger of crushing! Height adjustment For height adjustment, raise or lower the leg support to the desired height via the oper-... -
Page 26: Removing The Electrically Height Adjustable Leg Support
Removing the electrically height adjust- able leg support In order to remove the leg support, depend- ing on version, first pull the locking lever (1) back, press it in or fold it up or down. Afterwards swivel the leg support sideways and remove it toward the top [2]. -
Page 27: Arm Supports
ARM SUPPORTS Attention: Do not use the arm supports [1] to lift or carry the electric wheelchair. • Do not drive without the arm supports! Removing the arm support To remove the arm support, loosen the clamping screw (2) first and then pull out the arm support toward the top . -
Page 28: Illuminated Clothes Guard Discs
Illuminated clothes guard discs Attention: A selected lighting is still active after switching off the operating module. • Activated lighting may not be used where the German road traffic regula- tions are valid. Activating/deactivating the lighting on the clothes guard discs Activate the switch (1) to switch the lighting on or off. -
Page 29: Back Support
BACK SUPPORT The back support can be folded down for storage or transport. ☞ Note: For better demonstration of the wire cable (1) the back support is shown without cushion. Folding down the back support – If required remove the seat pad (velcro fastener). -
Page 30: Adjustable Back
Adjustable back The adjustable back is adjustable through a velcro strap on the spanning straps (2). Removing the back support upholstery For removal, first pull off the rear part of the back support upholstery (1), then fold it over to the front and pull it off of the adjustable back strap (3). -
Page 31: Electrically Adjustable Back Support
Electrically adjustable back support The back support [1] is electrically adjusta- ble. ☞ Note: Herefore view the operating manual < Operating module >. Attention: Only adjust the back support when the electric wheelchair is standing on a level surface. A danger of tipping over exists on gradients! Folding down the electrically adjustable back support... -
Page 32: Back Support Upholstery
Back support upholstery The back support upholstery is secured to the back support shell with Velcro fasteners and can be pulled off [1]. Secure positions of the back support The diverse possible seat adjustments also includes such settings, that may only be used as resting positions, since they might lead to instable driving conditions in drive mode. -
Page 33: Seat
SEAT Seat pad The seat pad [1] is attached to the seat plate with velcro straps and can be removed for cleaning and maintenance. Replace and attach the seat pad again after cleaning or maintenance [1]. – Velcro fasten- Seat cushion The seat cushion is placed with the burling side onto the seat plate. -
Page 34: Seat Height Adjustment
Seat height adjustment The seat height [1] can be adjusted through the operating module. ☞ Through this the seat height can be continuously adjusted up to. ☞ For this observe chapter Technical data on page 46. ☞ Therefore observe operation manual <... -
Page 35: Retaining Strap
RETAINING STRAP The retaining strap is screwed on, from the outer side, at the respective back support holder (1). ☞ The retrospective assembly of a retain- ing strap is only to be carried out by a specialist workshop! Attention: The retaining strap is not part of the retaining system for the electric wheel- chair and/or the driver during transport in motor vehicles. -
Page 36: Usb Connector Socket
USB CONNECTOR SOCKET The USB connector socket serves to con- nect devices with a USB plug type A. Attention: The maximum power consumption may not exceed 1 A per connection. ☞ The USB connector socket requires a permanent power supply. This may re- quire a more frequent recharging of the batteries. -
Page 37: Attendant Control With Priority Switch
ATTENDANT CONTROL WITH PRIORITY SWITCH The control unit for accompanying person enables the accompanying person an easy control of the electric wheelchair with auxil- iary operating module. Positioning the controller ☞ Note: Switch off the operating module before position adjustment! – This prevents an unwanted movement of the electric wheelchair. -
Page 38: Lighting
LIGHTING For driving outdoors and on public roads the electric wheelchair can be fit with LED-lighting equipment [1]. The lighting is activated over the operating module for the driver. ☞ Note: Observe the operating manual < Oper- ating module > as well as the safety and general handling instructions <... -
Page 39: Loading And Transportation
>! – This document and Loading further information can be accessed on our website < www.meyra.com > in the The electric wheelchair can be loaded with < Download Archive >. the aid of ramps or lifting platforms. -
Page 40: Transport Security
Transport security The electric wheelchair is only to be secured through the securing points [1] resp. [2]. ☞ The procedure for securing the wheel- chair can be read in the document < Safety and general handling instruc- tions electric vehicles > chapter < Trans- port in motor vehicles or with conveyors >. -
Page 41: Maintenance Schedule
Maintenance schedule WHEN WHAT REMARK Before starting out General Carry out test yourself or with a helper. Test for faultless operation. Checking the magnet- Carry out test yourself or with ic brake a helper. Move the selection lever If the electric wheelchair can for the drive/push mode be pushed, have the brakes into the drive mode posi-... - Page 42 WHEN WHAT REMARK Every 2 months Check tyre profile Carry out a visual check your- (depending on dis- self or with a helper. Minimum tread = 1 mm tance covered) If the tyre profile is worn down or if the tyre is dam- aged, consult a specialist workshop for repairs.
-
Page 43: Fuse
Fuse The safety button (1) for the battery-/main current must be depressed. Press down the safety button Before pressing the safety button down (1), if possible, stop the electric wheelchair on a level surface and secure it against rolling away. ☞... -
Page 44: Lighting
Lighting The lighting (1)+(2) is equipped with longlife LED-technology. ☞ Note: Immediately have a defective LED-lamp repaired by a specialist workshop. Headlights The housing of the light (1) must be adjust- ed so that the light cone is visible on the driving surface. -
Page 45: Fault Correction
Fault correction Fault Cause Remedy Battery indicator on the Circuit breaker is defective Replace defective circuit operating module does or not correctly inserted. breaker or clean contacts not light up after the and insert correctly. switch-on. Plug connection of the Check the plug connec- power supply... -
Page 46: Technical Data
TECHNICAL DATA – reduced driving speed (especially at walking speed). Kilometric performance In practical use, the kilometric performance under 'normal conditions' is then reduced Kilometric performance depends to a large to approx. 80 % – 40 % of the nominal value. extent on the following factors: –... -
Page 47: Model 1.617
All data within the following table relates to the standard version of the stated model. Dimensional tolerance ± 1.5 cm, ± 2°. Model: ..........................1.617 Type plate: ..........................right on the main frame Class of use as per DIN EN 12184: ........................Class B Life span: .................................. - Page 48 Back support to front edge of arm support: with seat depth 46 cm: ......................... 33 / 45 / 39 cm Arm support height from upper edge of seat: ..............24 / 35 / 26 cm Lower shank length (LSL), without seat cushion: Seat plate (min.
-
Page 49: Battery Charger
Drive batteries: Drive batteries, sealed: ...................2 x 12 V 52 Ah (5 h) / 60 Ah (20 h) Drive batteries, sealed: ...................2 x 12 V 63 Ah (5 h) / 73 Ah (20 h) Max. battery dimensions (LxWxH): ..................26 x 17.4 x 20.5 cm Range (see Kilometric performance): 60 Ah (20 h) with 6 km/h: ........................approx. - Page 50 Weights (basic equipment): Max. permissible total weight: ..........................300 kg Permitted axle load front: ............................150 kg Permitted axle load rear: ............................200 kg Max. permissible user weight: including additional load: ............................140 kg with seat lift Code 27 (including additional load): ................... 140 kg Max.
-
Page 51: Meaning Of The Labels On The Electric Wheelchair
Meaning of the labels on the electric wheelchair Attention! Read the operating manuals and other provided documen- tation. Do not lift the electric wheelchair at the arm supports or leg supports. Removable parts are not suitable for carrying. Drive mode Push mode Push only on level surfaces. -
Page 52: Meaning Of The Symbols On The Type Plate
Meaning of the symbols on the type plate Manufacturer Order number Serial number Production date (Year – Calendar week) Permitted user weight max. permissible total weight Permitted axle weights Max. permissible rising gradient Max. permissible falling gradient Permitted maximum speed The product is approved as a seat within a motor vehicle The product is not approved as a seat within a motor vehicle. -
Page 53: Inspection Certificate
INSPECTION CERTIFICATE Recommended safety inspection 1st year (at least every 12 months) Vehicle data: Stamp of specialist dealer: Model: Signature: Delivery note no.: Place, date: Serial-no.(SN): Next safety inspection in 12 months Date: Recommended safety inspection 2nd year Recommended safety inspection 3rd year (at least every 12 months) (at least every 12 months) Stamp of specialist dealer:... -
Page 54: Warranty / Guarantee
WARRANTY / GUARANTEE norm specifications cannot be declared as warranty or guarantee claims. We accept legal liability for this product Attention: within the scope of or general terms and Failure to observe the instructions in conditions and warranty and in certain cas- the operating manual, improperly car- es other verbal resp. -
Page 55: Warrantee / Guarantee Section
Warrantee / Guarantee section Please fill out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate): Date of delivery: Stamp of the specialist dealer: Inspection certificate for transfer Vehicle data: Serial-no.(SN): Stamp of specialist dealer:... - Page 56 Your specialist dealer MEYRA GmbH Meyra-Ring 2 D-32689 Kalletal-Kalldorf +49 5733 922 - 311 +49 5733 922 - 9311 info@meyra.de www.meyra.de MEYRA 1 078 018 (Status: 2015-02) All technical modifications reserved. Original operating manual.
