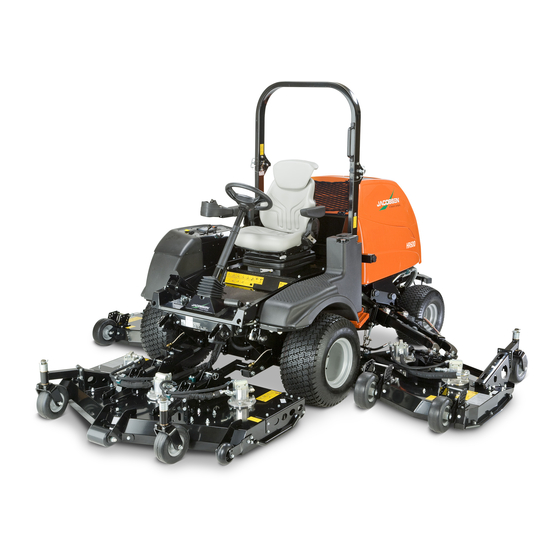

Jacobsen HR600 Quick Start Manual
Ride on rotary mower
Hide thumbs
Also See for HR600:
- Safety, operation & maintenance manual (134 pages) ,
- Manual (138 pages) ,
- Safety, operation & maintenance manual/parts list (132 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jacobsen HR600
Summary of Contents for Jacobsen HR600
- Page 1 A Textron Company QUICK START GUIDE Jacobsen HR600 And HR700 Ride on Rotary Mower STARTING THE ENGINE SEAT ADJUSTMENT CONTROLS DRIVING MOWING VISUAL DISPLAY Refer To The Safety, Operation And Maintenance Manual For Full Operating Instructions. RJL 100 January 2016...
- Page 2 QUICK START GUIDE Ransomes Jacobsen Limited reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice. © 2016 , Ransomes Jacobsen Limited. All Rights Reserved...
-
Page 3: Starting The Engine
QUICK START GUIDE STARTING THE ENGINE BEFORE YOU OPERATE FOR THE FIRST TIME • Check and adjust tyre pressure, if necessary, see Safety, Operation and Maintenance manual. • If necessary, add diesel fuel to tank. • Check engine oil and if necessary fill. •... -
Page 4: Seat Adjustment
QUICK START GUIDE SEAT ADJUSTMENT SEAT (GRAMMER MSG85) C. WEIGHT ADJUSTMENT To Adjust Adjustments to the seat can be made for leg The position of the operator weight adjust reach, backrest angle and operator weight to lever (C) is on the front of the seat. To give a good position to operate the machine. -
Page 5: Steering Wheel Adjustment
QUICK START GUIDE STEERING WHEEL ADJUSTMENT STEERING TILT CONTROL When the operators seat is in the correct position to operate the traction pedal comfortably. Push the small foot pedal (A) at the base of the steering column. Tilt the column backward or forward to the correct position. - Page 6 QUICK START GUIDE CONTROLS 5 .6 Starter Key Switch. Right hand Unit Lift/Lower Switch. Throttle Control. Centre Unit Lift/Lower Switch. Parking Brake Switch. Left hand Unit Lift/Lower Switch. Transport Lock Switch. Cutting Unit engaged LCD. Cutter Switch. Right hand cutting unit in cutting 4 WD in reverse direction Switch.
-
Page 7: Starter Key Switch
QUICK START GUIDE CONTROLS STARTER KEY SWITCH PARKING BRAKE SWITCH Move the orange button back and press the switch to engage the parking brake. Turn the starter key to the right to start the engine. Release the key to return When the engine is stopped, the parking automatically to the 'on' position for normal brake is applied. -
Page 8: Horn Button
QUICK START GUIDE CONTROLS HORN BUTTON 4 WHEEL DRIVE IN REVERSE SWITCH For machines without the lighting kit. The horn button (A) is on the control panel. If Engages the four wheel drive while the the lighting kit is fitted, the horn is found on vehicle is in reverse. -
Page 9: Cruise Control
QUICK START GUIDE CONTROLS AUXILLARY HYDRAULIC SERVICES KIT DIESEL PATRTICULATE FILTER SWITCH SWITCH (OPTIONAL) With the switch in the center position This switch sets the rotary brush or snow (default) it allows automatic Active Regen. blade to a right side or a left side forward Operation of the mower is not changed position. -
Page 10: Cab Controls
QUICK START GUIDE CONTROLS CAB CONTROLS Left Turn Signal Working Lights Switch (Optional) Beacon Switch Front Screen De-Mist Switch Rear Screen Wiper Switch (Optional) Front Screen Wash Switch Front Screen Wiper Switch Right Turn Signal Fan Control Air Conditioning Control Temperature Control Fuse Holder Fuse Holder... -
Page 11: How To Drive
QUICK START GUIDE DRIVING HOW TO DRIVE • Set the throttle to maximum engine speed. • Release the parking brake before you move in a forward or reverse direction. • Forward - Carefully press the top of the Traction pedal to engage forward drive. •... - Page 12 QUICK START GUIDE MOWING HOW TO MOW Release any transport locks and lower the cutting units with the joysticks. To engage the cutting mechanism, press the upper half of the cutting unit switch, found on the control panel. Release the parking brake and drive in a forward direction.
-
Page 13: Visual Display
QUICK START GUIDE VISUAL DISPLAY START UP SCREEN FIRST SCREEN MODE When the ignition key is turned to the start This screen shows the cutter switch in the position, this screen is shown. OFF position, the transport lock engaged, The hour meter will show total hours of the TST is in operation and speed mode. -
Page 14: Engine Will Not Start
QUICK START GUIDE VISUAL DISPLAY ENGINE START The engine will not start until all the items in the list are correct WARNING SLOPE ANGLE 16° MODE 0° Slopes > = 16° in either x or y When the ignition key is turned to the start position, this screen is shown. -
Page 15: Warning Clear Radiator Screens
Ransomes level. If this happens during operation, or Jacobsen Dealer does not go off when the engine is run at more than 1000 rpm. Stop the engine and When this fault occurs the machine go’s into check the oil level. -
Page 16: Warning Battery Fault
Replace the filter element at the earliest opportunity. Stop the machine as soon as possible and contact your local Ransomes Jacobsen The number in the top right of the screen Dealer indicates the total number of faults recorded. - Page 17 When this screen is shown, there is a fault needs a service. with the TST. Stop as soon as possible and contact your local Ransomes Jacobsen Go to the main menu and select service Dealer menu, time until service to show the items needed for a service.,...
- Page 20 Europe & Rest of The World Except North & South America Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, IP3 9TT English Company Registration No. 1070731 www.ransomesjacobsen.com North & South America Jacobsen, A Textron Company 11108 Quality Drive, Charlotte, NC 28273, USA www.Jacobsen.com...
