Operating Instructions
Air Conditioner
Ducted (E1 type)
Model No.

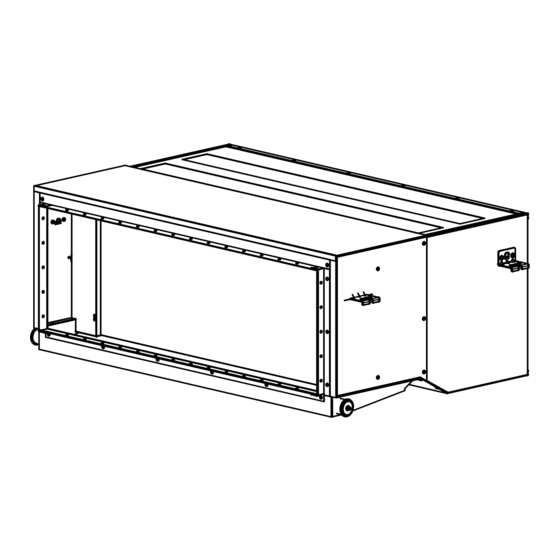

INDOOR UNIT
Ducted Type
S-60PE1R5A
S-71PE1R5A
S-100PE1R5A
S-125PE1R5A
S-140PE1R5A
OUTDOOR UNIT
Single Split (Single-phase)
PE1 Type
U-60PE1R5A
U-100PE1R5A
U-71PE1R5A
U-125PE1R5A
U-140PE1R5A
Single Split (3-phase)
PE1 Type
—
U-100PE1R8A
—
U-125PE1R8A
U-140PE1R8A
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
04/11/2016
Before operating the unit, read these
operating instructions thoroughly and
keep them for future reference.
2 ~ 7
E
NGL
P07-T11600A
Advertisement
Table of Contents
Related Manuals for Panasonic S-60PE1R5A
Summary of Contents for Panasonic S-60PE1R5A
-
Page 1: Operating Instructions
Ducted (E1 type) Before operating the unit, read these 2 ~ 7 Model No. operating instructions thoroughly and keep them for future reference. INDOOR UNIT Ducted Type S-60PE1R5A S-71PE1R5A S-100PE1R5A S-125PE1R5A S-140PE1R5A OUTDOOR UNIT Single Split (Single-phase) PE1 Type U-60PE1R5A... -
Page 2: Table Of Contents
Thank you for purchasing this Panasonic product. WARNING This product is a commercial air conditioner indoor unit. Installation Instructions attached. Contents Confi rm to authorized dealer or specialist on usage of specifi ed refrigerant type. Using of refrigerant other than the Safety Precautions ............ - Page 3 CAUTION This appliance is intended to be used Provide a power outlet to be by expert or trained users in shops,in used exclusively for each unit, light industry and on farms, or for and a power supply disconnect, commercial use by lay persons. circuit breaker and earth leakage breaker for overcurrent protection This air conditioner has no ventilator...
-
