Omron V530-R160E Instruction

Dimensional code reader
Hide thumbs Also See for V530-R160E:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: User Manual

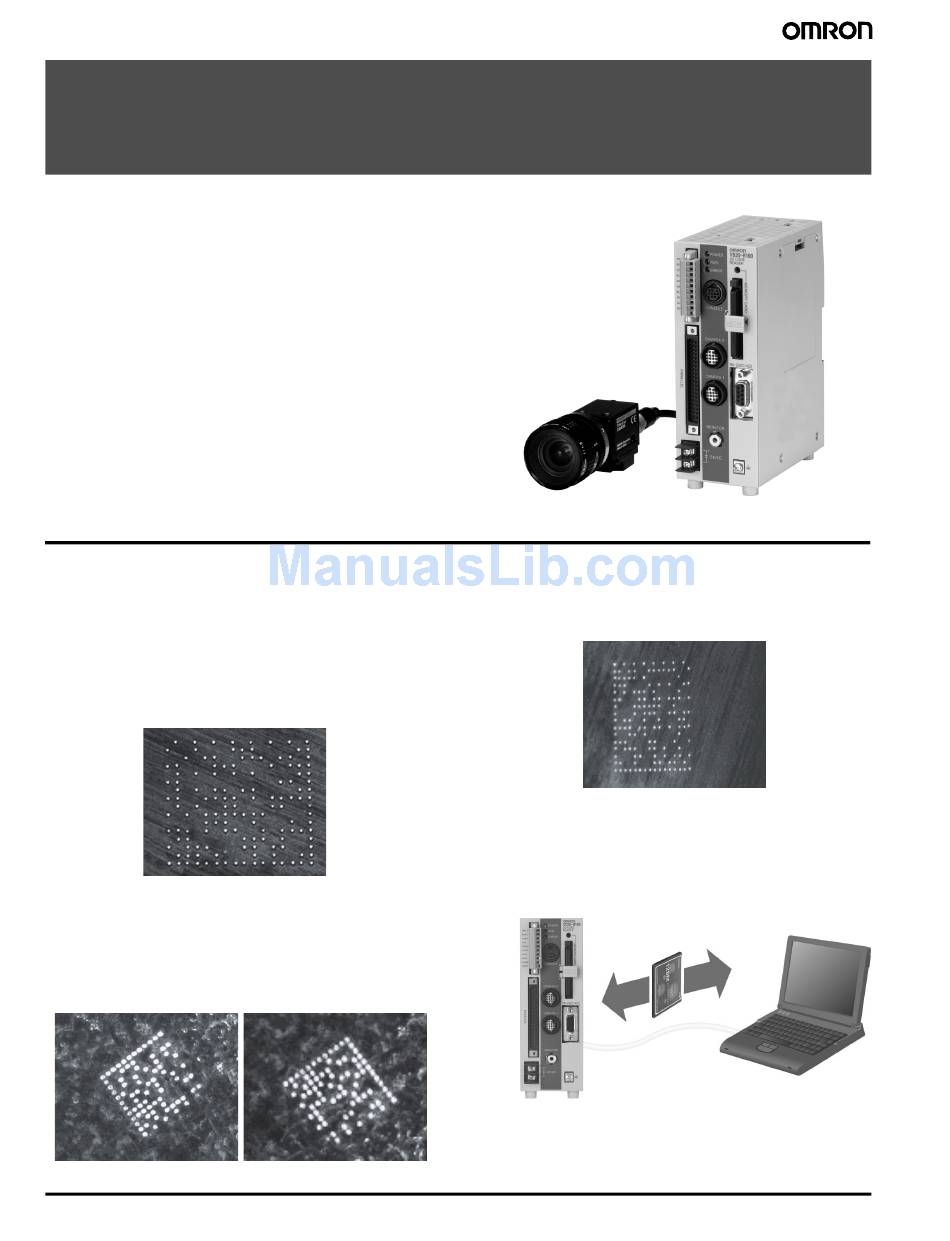

2-Dimensional Code Reader (Fixed Type)
V530-R160E, EP
A Code Reader that Handles Pin-Stamped
Markings!
Features
Dependably Read Pin-Stamped Markings
• Markings made by pin-stamping machines can be dependably
read, providing the user with a wider range of selection of marking
devices.
• Stable reading is possible even if the shape of cells changes
because of aging in the marking device.
(Reference: Samples were made using a Vector Co. pin-stamping
machine)
Dot Codes* Read at Any Angle: 360 °
Compatibility
• Codes can be read even with rough backgrounds on the casting
surface or other locations.
• Dot codes* can be read at any angle through a 360° range.
* Dot codes are 2-dimensional codes in which dots form the cells.
2
2-Dimensional Code Reader (Fixed Type)
Dependably Read Markings at an Angle
With dependable reading at an angle, installation is possible even on
existing facilities with space limitations.
Easy Setup
Setup is easily achieved with a Memory Card (compact flash mem-
ory) slot on the V530-R160E and V530-R160EP. Just insert a card to
easily copy settings or save images. There is no need to carry a per-
sonal computer and cables for process switch-overs.
V530-R160E, EP

Advertisement

loading

Related Manuals for Omron V530-R160E

Summary of Contents for Omron V530-R160E

  • Page 1 Easy Setup Setup is easily achieved with a Memory Card (compact flash mem- ory) slot on the V530-R160E and V530-R160EP. Just insert a card to easily copy settings or save images. There is no need to carry a per- sonal computer and cables for process switch-overs.
  • Page 2 Check and Reproduce Images Analyze Troubles Saved NG images can Up to 35 NG images be loaded to reproduce can be saved in inter- a reading. nal memory. Applications V530-R160E, EP 2-Dimensional Code Reader (Fixed Type)

  • Page 3: Ordering Information

    QM300-N128S RS-232C Cable For IBM PC/AT or compatible computer (2-m cable) XW2Z-200S-V For SYSMAC PLC (2-m cable) XW2Z-200T Specifications V530-R160E, V530-R160EP Controller Item Specifications Model V530-R160E V530-R160EP Input/Output type Data Matrix ECC200: 10 × 10 to 64 × 64, 8 × 18, 8 × 32, 12 × 26, 12 × 36, 16 × 36, 16 × 48 Applicable codes Data Matrix ECC000, ECC050, ECC080, ECC100, ECC140: 9 ×...

  • Page 4: System Configuration

    Parallel Cable Cameras F150-VS 3M F150-S1A Camera Cable Camera Monitors Memory Cards 64 MB: F160-N64S(S) F150-M05L 128 MB: QM300-N128S Liquid Crystal Monitor RCA/BNC Video Cable (Color) 2M Monitor Cable Recommended Power Supply: OMRON S82K-05024 V530-R160E, EP 2-Dimensional Code Reader (Fixed Type)
  • Page 5 Dimensions Note: All units are in millimeters unless otherwise indicated. V530-R160E, V530-R160EP Controller Four, M3 mounting holes Four, M3 mounting holes with depth of 4.8 with depth of 4.8 Four, M4 mounting holes with depth of 6 F150-S1A Camera F150-M05L Liquid Crystal Monitor 15.5...

  • Page 6: Certain Terms And Conditions Of Sale

    Terms. Please EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABIL- contact your Omron representative to confirm any additional terms for sales ITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE GOODS. from your Omron company.
  • Page 7 Complete “Terms and Conditions of Sale” for product purchase and use are on Omron’s website at www.omron.com/oei – under the “About Us” tab, in the Legal Matters section. ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
