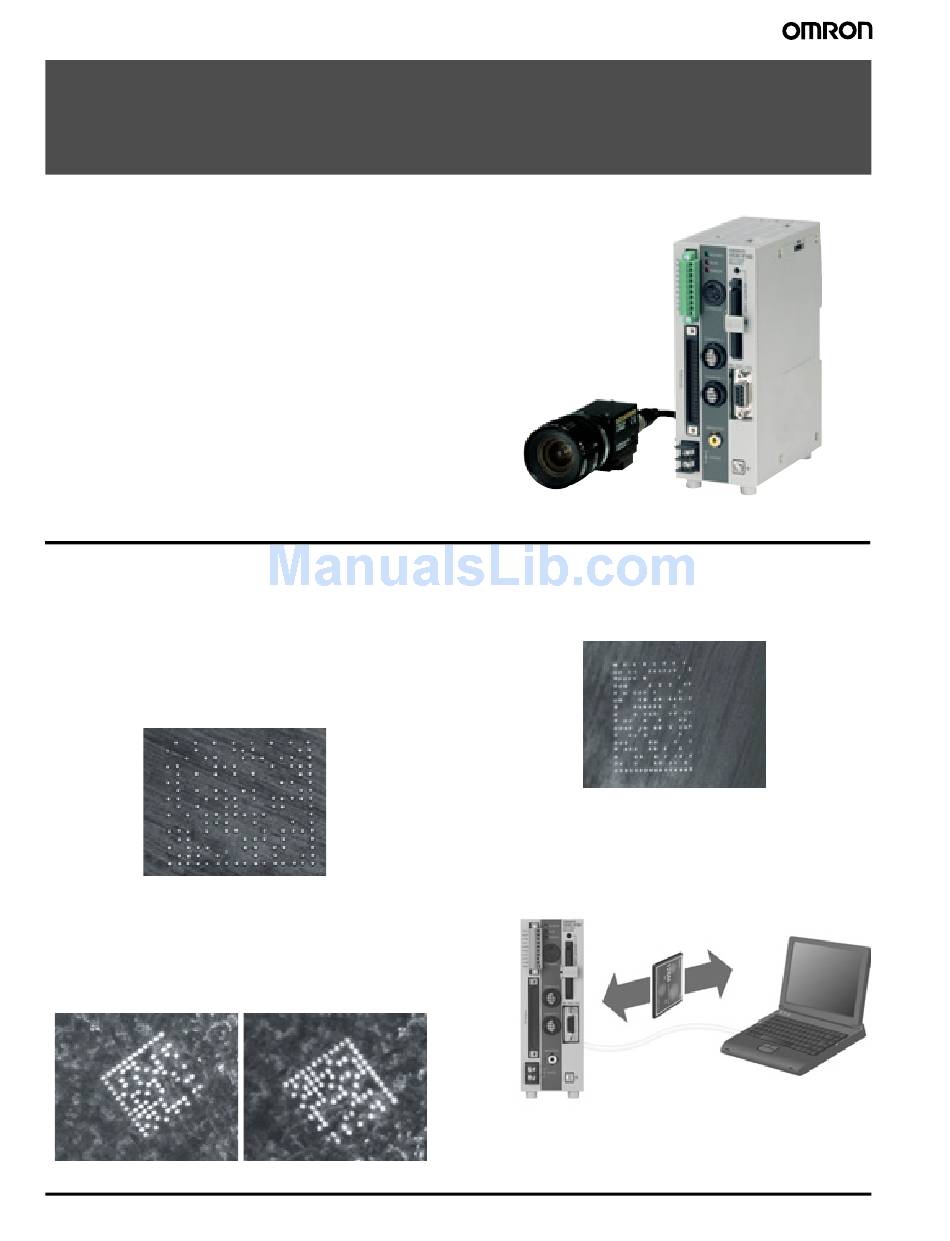

2-Dimensional Code Reader (Fixed Type)
V530-R160E, EP
A Code Reader that Handles Pin-Stamped
Markings!
Features
Dependably Read Pin-Stamped Markings
• Markings made by pin-stamping machines can be dependably
read, providing the user with a wider range of selection of marking
devices.
• Stable reading is possible even if the shape of cells changes
because of aging in the marking device.
(Reference: Samples were made using a Vector Co. pin-stamping
machine)
Dot Codes* Read at Any Angle: 360°
Compatibility
• Codes can be read even with rough backgrounds on the casting
surface or other locations.
• Dot codes* can be read at any angle through a 360° range.
* Dot codes are 2-dimensional codes in which dots form the cells.
2
2-Dimensional Code Reader (Fixed Type)
Dependably Read Markings at an Angle
With dependable reading at an angle, installation is possible even on
existing facilities with space limitations.

Easy Setup

Setup is easily achieved with a Memory Card (compact flash mem-
ory) slot on the V530-R160E and V530-R160EP. Just insert a card to
easily copy settings or save images. There is no need to carry a per-
sonal computer and cables for process switch-overs.
V530-R160E, EP

Advertisement

loading

Related Manuals for Omron V530-R160E

Summary of Contents for Omron V530-R160E

  • Page 1: Easy Setup

    Easy Setup Setup is easily achieved with a Memory Card (compact flash mem- ory) slot on the V530-R160E and V530-R160EP. Just insert a card to easily copy settings or save images. There is no need to carry a per- sonal computer and cables for process switch-overs.
  • Page 2 2-Dimensional Code Reader (Fixed Type) Trend monitoring can be used to set guidelines for replacing parts in lighting devices, marking devi- ces, and other equipment. Using time stamps on NG im- ages with data histories enables more detailed troubleshooting. V530-R160E, EP...

  • Page 3: Ordering Information

    Card capacity: 128 MB RS-232C Cable For IBM PC/AT or compatible computer (2-m cable) For SYSMAC PLC (2-m cable) Specifications V530-R160E, V530-R160EP Controller Item Model V530-R160E Input/Output type Data Matrix ECC200: 10 × 10 to 64 × 64, 8 × 18, 8 × 32, 12 × 26, 12 × 36, 16 × 36, 16 × 48 Applicable codes Data Matrix ECC000, ECC050, ECC080, ECC100, ECC140: 9 ×...

  • Page 4: System Configuration

    V530-R160EP Controller F160-VP Parallel Cable F150-VS-2D 3M Camera Cable F150-VM-2D 2M Monitor Cable (See note.) Recommended Power Supply: OMRON S82K-05024 2-Dimensional Code Reader (Fixed Type) Video Monitor F150-M09-2D F150-KP-2D-2M Console Memory Cards 64 MB: F160-N64S(S) 128 MB: QM300-N128S V530-R160E, EP...
  • Page 5 Dimensions Note: All units are in millimeters unless otherwise indicated. V530-R160E, V530-R160EP Controller F150-S1A-2D Camera 15.5 (40) 14.5 F150-S1 30.5 31.25 16.75 Two, M4 mounting holes with depth of 8 Mounting dimensions 1/4-20UNC with depth of 8 21.25 6.75 F150-M05L-2D Liquid Crystal Monitor Allowable panel thickness for mounting: 1.6 to 4.8...
  • Page 6 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. V530-R160E, EP 2-Dimensional Code Reader (Fixed Type)

  • Page 7: Terms And Conditions

    The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list Complete terms and conditions for product purchase and use are on Omron’s website at www.omron.com/oei – under the “About Us” tab, in the Legal Matters section.
