DT-4572 X-Band Down Converter
MN/DT4572.IOM
Appendix A
Revision 1
A.3.2
1:N Redundant Systems
The RSM contains an IF switch that switches the IF output of a faulted online
converter to the BU. Figure A-7 shows the cable connections between the
converters. Figure A-8 shows the diagram for this 1:N redundant "Daisy Chain"
converter configuration.

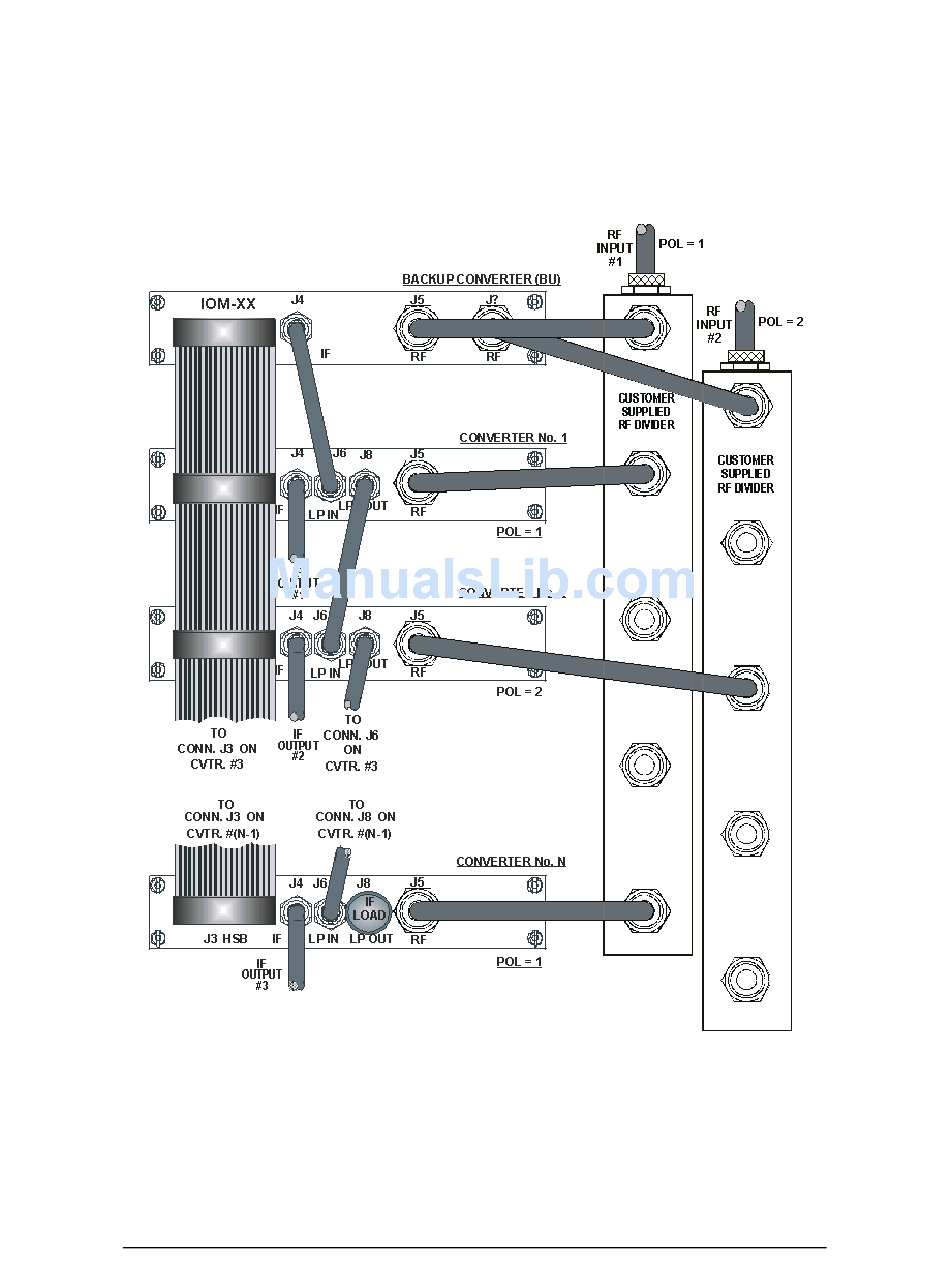

Figure A-7. Dual Source 1:N Redundant Configuration (with PSM and RSM)
A–7
