Senal scm-660 User Manual

Senal scm-660 User Manual

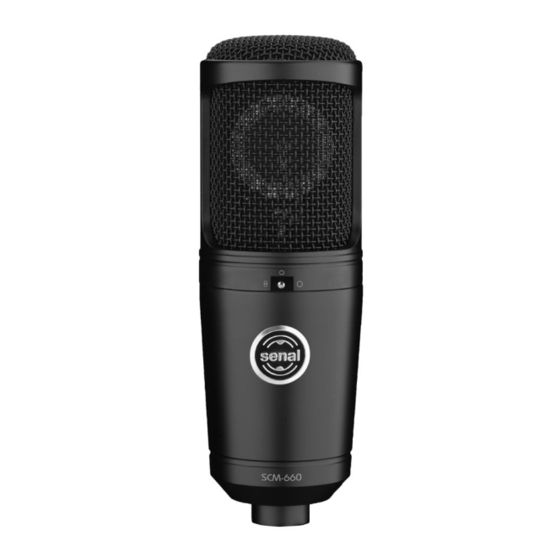

Large diafragm condenser microphone

Advertisement

Table of Contents:

Introduction � ���������������������������������������������������������������������������������������������� 2
Overview ���������������������������������������������������������������������������������������������������� 3
Precautions � �����������������������������������������������������������������������������������������������4
Mounting the Microphone ������������������������������������������������������������������� 5
Selectable Polar Pattern Switch � �������������������������������������������������������6
High-Pass Filter � ��������������������������������������������������������������������������������������� 7
Attenuation Pad � �������������������������������������������������������������������������������������� 7
Connecting the Microphone ��������������������������������������������������������������� 8
Troubleshooting � ��������������������������������������������������������������������������������������9
Specifications ������������������������������������������������������������������������������������10-11
Warranty � �������������������������������������������������������������������������������������������������� 12
SCM-660
USER'S GUIDE
LARGE DIAPHRAGM MULTI-PATTERN
CONDENSER MICROPHONE

Advertisement

Table of Contents
loading

Summary of Contents for Senal scm-660

  • Page 1: Table Of Contents

    Table of Contents: Introduction � ���������������������������������������������������������������������������������������������� 2 Overview ���������������������������������������������������������������������������������������������������� 3 Precautions � �����������������������������������������������������������������������������������������������4 Mounting the Microphone ������������������������������������������������������������������� 5 Selectable Polar Pattern Switch � �������������������������������������������������������6 High-Pass Filter � ��������������������������������������������������������������������������������������� 7 Attenuation Pad � �������������������������������������������������������������������������������������� 7 Connecting the Microphone ��������������������������������������������������������������� 8 Troubleshooting � ��������������������������������������������������������������������������������������9 Specifications ������������������������������������������������������������������������������������10-11 Warranty � �������������������������������������������������������������������������������������������������� 12 SCM-660 LARGE DIAPHRAGM MULTI-PATTERN CONDENSER MICROPHONE...
  • Page 2: Introduction

    Thank you for choosing Senal. The Senal SCM-660 is a professional grade, large dual diaphragm, true condenser microphone� Its dual 1�3˝ gold-plated transducer element is designed to give detailed and true sound reproduction in professional and project studio applications� Its full rich tone and clarity make it an ideal microphone for studio recording, broadcasting, podcasting, or live recording� With a wide dynamic range and high SPL of 140 dB, you’ll be able to capture vocals and instruments accurately with pristine clarity� The SCM-660’s selectable polar patterns provide flexible options to pick up audio while minimizing off-axis noise and reflections� An onboard -10 dB attenuation pad allows you to achieve optimal signal levels when in front of loud sound sources such as guitar cabinets or singing� The 80 Hz high-pass filter rolls off unwanted low-frequency noise and rumble caused, for example, by wind or the microphone shaking� The included shock mount reduces unwanted vibrations when ultimate sensitivity is required� Rugged all-metal construction provides durability in use or during transport, and the aluminum case and protective pouch/dustcover add extra protection� You’ll enjoy using the Senal SCM-660, so let’s get started� Introduction ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 3: Overview

    Overview Front Back Shock 1.3˝ gold-plated mount dual-diaphragm condenser transducer 5/8˝ male to 3/8˝ female adapter Grille Shock-mount thread Selectable polar pattern -10 dB pad Hi-pass switch switch filter switch Carry case Protective pouch/ Gold-plated Threaded dustcover XLR connector mount Overview ▪...
  • Page 4: Precautions

    Precautions ▪ Please read and follow these instructions and keep this manual in a safe place� ▪ Exposure to high sound levels can cause permanent hearing loss� Avoid listening at high volumes for extended periods� ▪ Keep this product away from water and flammable gases or liquids� ▪ Do not attempt to disassemble or repair this product yourself� ▪ Handle this product with care� ▪ Clean this product with only a soft, dry cloth� ▪ To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings� ▪ Make sure this product is intact and that there are no missing parts� Precautions ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 5: Mounting The Microphone

    Mounting the Microphone To mount the SCM-660, follow these steps: 1� Screw the included shock mount onto a 5/8˝ threaded microphone stand and make sure it is in a 90-degree position� Then fully tighten the locking knob on the shock mount� 2� Carefully thread the bottom of the microphone to the shock mount using the shock-mount thread and fully tighten� Note: The front of the microphone (showing the Senal logo) should be facing your sound source for recording� Mounting the Microphone ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 6: Selectable Polar Pattern Switch

    Selectable Polar Pattern Switch Cardioid When the cardioid pattern is selected ( ), the microphone will pick up sound from the front and reject sound from the back of the microphone� This can be used for most frontal recording applications such as singing or guitar playing� Figure 8 When in the figure 8 pattern ( ), the microphone will pick up sound from the front and back of the microphone� Any noise from the sides will be rejected� This is great for two-person interviews with the microphone in between them, or MS (mid-side) stereo recording techniques such as drum overheads� Omni When in the Omni pattern ( ), the microphone will pick up sound from all around� This is a preferred setting for high-quality ambience sound miking, or far-field recording in high-quality large and small recording rooms� Selectable Polar Pattern Switch ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 7: High-Pass Filter

    High-Pass Filter The high-pass filter setting can be used to reduce the sensitivity of the microphone to low-frequency sounds, additional noise and vibration from outside traffic, air conditioning or other background audio� When set to ON ( ) the SCM-660 will filter sound 80 Hz and below� The OFF setting ( ) results in no filtering� Attenuation Pad The SCM-660’s attenuation pad can be used to lower the output by 10 dB for preventing distortion when recording loud sound sources like singing, percussion, or guitar amplifiers� In the left position, there is 0dB attenuation, in the right position, there is -10dB attenuation� High-Pass Filter / Attenuation Pad ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 8: Connecting The Microphone

    Connecting the Microphone Use an XLR cable (not included) to connect the microphone to your mixing console, microphone preamp, or recording device� Make sure phantom power is turned on� Note: Phantom power must be used with this microphone� Make sure your recording device has proper +48 V phantom power� Warning Make sure all faders and volume knobs are down� After the microphone is connected, set the volume to your preferred level for recording� Before recording, make sure the high-pass filter is set to OFF ( ) and the attenuation pad is not engaged� See previous section for further reference� If using this microphone for vocals, do not sing or blow directly into the diaphragm� Use a pop filter (not included) to eliminate vocal plosives and shield against corrosive moisture that can damage the diaphragm� Connecting the Microphone ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 9: Troubleshooting

    Troubleshooting Problem Solution No sound is Make sure your mixer or amplifier is turned on and phantom power is engaged� being recorded� The fader of the channel or master volume on your mixing console is turned all the way down� Your preamp gain is turned all the way down� Make sure the microphone is properly connected and connections are secure� Check your cable to make sure it’s reliable� Try switching it with another cable� The sound is Turn on the microphone’s attenuation pad� distorted� Move the microphone away from the sound source� Too much low- Turn on the high-pass filter� frequency noise or rumble is Turn off air conditioners, fans, heaters or other devices being recorded� that might be interfering with your recording� Troubleshooting ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 10: Specifications

    Specifications Element: Dual, true condenser transducer Diaphragm: Dual 1�3 inch (34 mm) gold-plated diaphragm Polar pattern: Cardioid, Figure 8, Omni Frequency response: 20 Hz – 20 kHz Sensitivity: -33/-39/-38 dB ± 3 dB (0dB=1V/Pa at 1 kHz) Signal-to-noise ratio: 76 dB (1 kHz @ 1 Pa) Maximum input SPL: 130 dB (140 dB with -10 dB pad engaged) (THD≤1�5% at 1kHz) Impedance: 100 Ohms ± 20% Power requirements: +48 V Output connector: Gold-plated 3-pin XLR Pad: -10 dB High-pass filter: 80 Hz Dimensions: 6˝ × 2˝ (15�24 cm × 5�08 cm) Weight: 1�15 lbs� (0�52 kg) / 3�9 lbs� with case (1�8 kg) Specifications ▪ ▪ ▪...
  • Page 11: Polar Pattern

    Frequency Response Graph Polar Pattern 0° 30° 330° 60° 300° Cardioid 90° 270° 120° 240° 210° 150° 180° 0° 30° 330° 60° 300° Figure 8 90° 270° 240° 120° 150° 210° 180° 0° 30° 330° 60° 300° Omni 270° 90° 120°...
  • Page 12: Warranty

    Two-Year Limited Warranty This Senal product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of two (2) years from the original purchase date or thirty (30) days after replacement, whichever occurs later� The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment� Inoperability of the product or part(s) shall be determined by the warranty provider� If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function� This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance� EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE� This warranty provides you...
