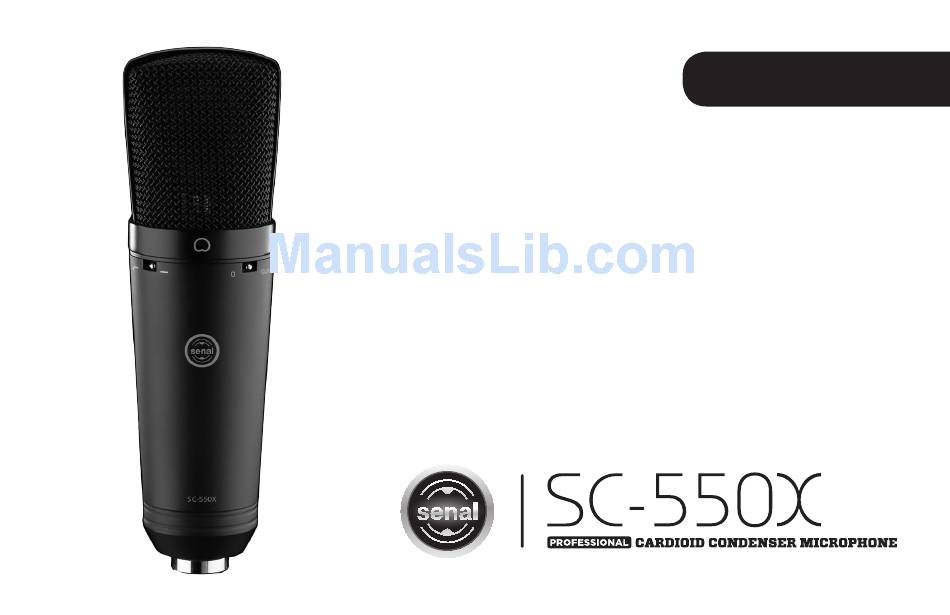

USER'S GUIDE

Table of Contents:

Introduction � ���������������������������������������������������������������������������������������������� 2
Overview ���������������������������������������������������������������������������������������������������� 3
Precautions � �����������������������������������������������������������������������������������������������4
Mounting the Microphone ������������������������������������������������������������������� 5
Positioning the SC-550X � ���������������������������������������������������������������������6
Using the Pop-Filter � ��������������������������������������������������������������������������6-7
The Attenuation Pad � ����������������������������������������������������������������������������� 7
The High-Pass Filter � ������������������������������������������������������������������������������ 7
Troubleshooting � ����������������������������������������������������������������������������������8-9
Specifications ������������������������������������������������������������������������������������10-11
Warranty � �������������������������������������������������������������������������������������������������� 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-550X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Senal SC-550X

  • Page 1: Table Of Contents

    USER’S GUIDE Table of Contents: Introduction � ���������������������������������������������������������������������������������������������� 2 Overview ���������������������������������������������������������������������������������������������������� 3 Precautions � �����������������������������������������������������������������������������������������������4 Mounting the Microphone ������������������������������������������������������������������� 5 Positioning the SC-550X � ���������������������������������������������������������������������6 Using the Pop-Filter � ��������������������������������������������������������������������������6-7 The Attenuation Pad � ����������������������������������������������������������������������������� 7 The High-Pass Filter � ������������������������������������������������������������������������������ 7 Troubleshooting � ����������������������������������������������������������������������������������8-9 Specifications ������������������������������������������������������������������������������������10-11 Warranty � �������������������������������������������������������������������������������������������������� 12...
  • Page 2: Introduction

    Thank you for choosing Senal. The Senal SC-550X is a professional-grade studio microphone with accurate, detailed sound reproduction designed for use in all recording situations� Employing a condenser element, the SC-550X achieves superior transient response and high signal-to-noise ratio� Equally adept in both professional and project studios, the SC-550X’s warm, full-bodied sound makes it a go-to choice for capturing vocals in the studio� Its wide, smooth frequency response with a fat bottom end, smooth upper mids, and transparent high end offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking, and even nonmusical applications like podcasting, voiceovers, and broadcast use� The cardioid polar pattern provides a generous pickup area while minimizing off-axis noise and reflections� Onboard switches add further adaptability to the SC-550X, with a high-pass filter for low-frequency roll-off and a -10 dB pad for noise attenuation� With its 140 dB maximum sound-pressure level, the SC-550X can accurately capture loud signals without distortion� Introduction ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 3: Overview

    Overview Condenser element Grille High-pass Carry case Shock mount filter Pop-filter -10 dB pad XLR connector Overview ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 4: Precautions

    Precautions ▪ Please read and follow these instructions and keep this manual in a safe place� ▪ Exposure to high sound levels can cause permanent hearing loss� Avoid listening at high volumes for extended periods� ▪ Keep this product away from water and flammable gases or liquids� ▪ Do not attempt to disassemble or repair this product yourself� ▪ Handle this product with care� ▪ Clean this product with only a soft, dry cloth� ▪ To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings� ▪ Make sure this product is intact and that there are no missing parts� Precautions ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 5: Mounting The Microphone

    Mounting the Microphone To mount the SC-550X, follow these steps: 1� Screw the included shock mount onto a 5/8" threaded microphone stand� 2� Make sure the locking knob on the shock mount is fully tightened� While squeezing the metal levers of the shock mount together, place the microphone firmly into the shock mount and then let go of the levers� The front of the microphone (the side with the Senal logo) should be facing your sound source� 3� If you’re recording vocals, attach the included pop-filter to the shock mount� See Using the Pop-Filter on page 6 for further reference� 4� Use an XLR cable (not included) to connect the microphone to your mixing console, microphone preamp, or recording device� Make sure the phantom power is engaged� Before recording, make sure the high-pass filter is set to the flat position and the attenuation pad is not engaged� See The High-Pass Filter and The Attenuation Pad on page 7 for further reference� Mounting the Microphone ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 6: Positioning The Sc-550X

    Positioning the SC-550X The SC-550X’s cardioid polar pattern will capture sound mostly from in front of the microphone� You will usually want the front of the microphone (the side with the Senal logo) to face your sound source, although it is important to experiment with microphone placement and positioning to find the best solution for your specific needs� You can adjust the vertical angle of the microphone by loosening the locking knob on the shock mount� When the desired angle is set, make sure to fully tighten the locking knob� Using the Pop-Filter When recording vocals with the SC-550X, use the included pop-filter to reduce noise from aspirated plosives like p and b sounds and to keep corrosive moisture away from the capsule� To mount the included pop-filter, follow these steps: 1� Mount the pop filter onto the rim of the shock mount at the front of the microphone� Positioning the SC-550X / Using the Pop-Filter ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 7: The Attenuation Pad

    2� Adjust the position of the pop filter to suit your vocalist� The optimal distance between the filter and the microphone capsule is approximately 1�5" (3�8 cm)� The Attenuation Pad The attenuation pad lowers the SC-550X’s output by 10 dB and is useful for preventing distortion when recording loud sounds like cymbals and electric guitar cabinets� To engage the attenuation pad, slide the pad switch so it rests next to the -10 dB mark� To disengage the attenuation pad, slide the pad switch so it rests next to the 0 dB mark� The High-Pass Filter The high-pass filter helps prevent the SC-550X from picking up low-frequency noises that can interfere with your recording, like the rumble from an air conditioner� To activate the high-pass filter, slide the high-pass filter switch so it rests next to the mark� To deactivate the high-pass filter, slide the switch so it rests next to the mark� The Attenuation Pad / The High-Pass Filter ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 8: Troubleshooting

    Troubleshooting Problem Solution No sound is being recorded� Make sure your mixer or amplifier is turned on� The fader of the channel or master volume on your mixing console is turned all the way down� Your preamp gain is turned all the way down� Make sure the microphone is properly connected and that the connections are secure� Make sure phantom power is engaged� Check your cable to make sure it’s reliable� Try switching it with another cable� The sound is distorted� Turn on the microphone’s attenuation pad� Move the microphone away from the sound source� Troubleshooting ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 9: Troubleshooting � ����������������������������������������������������������������������������������8

    Problem Solution Too much low-frequency noise or Turn on the high-pass filter� rumble is being recorded� Turn off air conditioners, fans, heaters, or other devices that might be interfering with your recording� Vocal plosives like p and b sound Use the included pop-filter when recording vocals� distorted� Troubleshooting ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 10: Specifications

    Specifications Element: Condenser Polar pattern: Cardioid Frequency response: 20 Hz to 20 kHz Sensitivity: -36 dB ±2 dB at 1 kHz Signal-to-noise ratio: 79 dB (1 kHz at 1 Pa) Maximum input sound level: 140 dB Impedance: 200 Ω Power requirements: +48 V Output connector: 3-pin XLR Pad: -10 dB High-pass filter: 80 Hz Dimensions: 7�15" × 2" (18�2 × 5�1 cm) Weight: 13�6 oz� (386 g) Specifications ▪ ▪ ▪ ▪...
  • Page 11: Polar Pattern

    Frequency Response Graph Polar Pattern Frequency Response 0° 30° 330° 60° 300° 90° 270° 120° 240° 210° 150° 180° Frequency in Hertz Specifications ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪...
  • Page 12: Warranty

    Two-Year Limited Warranty This Senal product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of two (2) years from the original purchase date or thirty (30) days after replacement, whichever occurs later� The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment� Inoperability of the product or part(s) shall be determined by the warranty provider� If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function� This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance� EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE� This warranty provides you...
