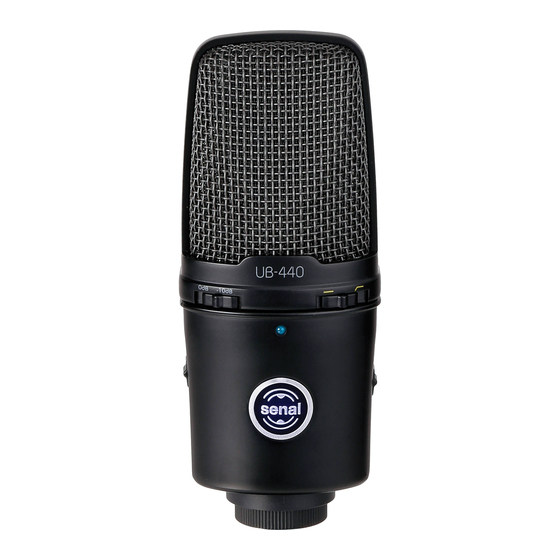

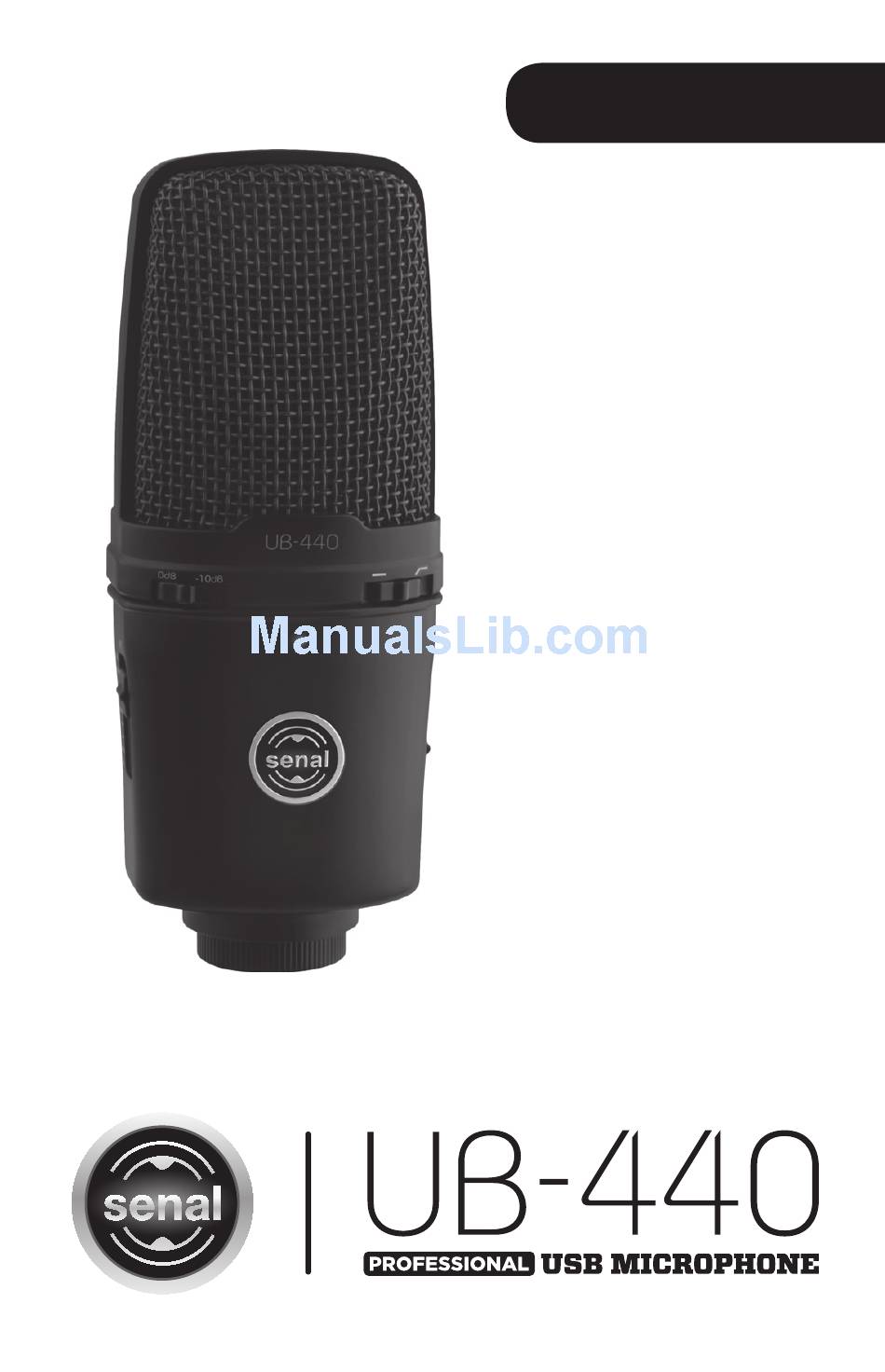

USER'S GUIDE

Table of Contents:

Introduction ................... 2
Overview ........................ 3
Precautions .................... 4
the UB-440 ....................5
and Setting Up .............6
Gain Control .................12
Attenuation Pad ..........12
Your Headphones .......12
High-Pass Filter ...........13
the UB-440 .................. 13
Troubleshooting ......... 14
Specifi cations ..............15
Warranty ....................... 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ub-440 and is the answer not in the manual?

Questions and answers

Summary of Contents for Senal ub-440

  • Page 1: Table Of Contents

    Assembling the UB-440 ....5 Plugging In and Setting Up .....6 Gain Control ....12 Using the Attenuation Pad ..12 Monitoring with Your Headphones ..12 High-Pass Filter ...13 Positioning the UB-440 ....13 Troubleshooting ..14 Specifi cations ....15 Warranty ....... 16...
  • Page 2: Introduction

    Thank you for choosing Senal. Designed for use with today’s sophisticated digital recording equipment, the Senal UB-440 Professional USB Microphone provides crystal-clear, crisp sound, perfect for home studio recording and ideal for podcasts, voiceovers, writing sessions, and rehearsals. The large-diaphragm condenser element combined with a...
  • Page 3: Overview

    Overview Microphone capsule Power LED High-pass Pad switch fi lter switch M I C V O L U M E M A X M A X M I N M IN Continuously Headphone variable gain volume slider control Headphone jack USB port Also Included: Microphone stand...
  • Page 4: Precautions

    Precautions ▪ Please read and follow these instructions and keep this manual in a safe place. ▪ Exposure to high sound levels can cause permanent hearing loss. Avoid listening at high volumes for extended periods. ▪ Keep this product away from water and fl ammable gases or liquids.
  • Page 5: Assembling The Ub-440

    Insert the UB-440’s mounting thread into the microphone mount. Make sure the Senal logo on the front of the UB-440 is facing you when the stand is tilted upward. Screw the locking collar onto the mounting thread until secure.
  • Page 6: Plugging In And Setting Up

    Plugging In and Setting Up Windows XP Setting Up the Microphone 1. Use the included USB cable to plug the UB-440 into your computer. One end of the cable corresponds with the USB port on the bottom of the microphone, and one end of the cable corresponds with the USB port on your computer.
  • Page 7 4. In the drop-down menu under Sound recording, select USB PnP Sound Device as the default device. 5. Click OK to save your changes and exit. Adjusting the Microphone Volume via the Computer You can adjust the microphone’s volume from the computer’s Sounds and Audio Devices Properties window.
  • Page 8 3. If the Microphone volume adjustment column appears on the right side of the window, skip to step 6. If the Microphone volume adjustment column does not appear on the right side of the window, click Options in the menu bar, and then select Properties. 4.
  • Page 9: Adjusting The Volume

    5. Under Show the following volume controls, click the checkbox next to Microphone to select it. Click OK to confi rm your selection. The Microphone volume adjustment column should appear on the right side of the window. 6. To adjust the microphone volume, click and drag the slider up or down.
  • Page 10 Macintosh OS X 1. Use the included USB cable to plug the UB-440 into your computer. One end of the cable corresponds with the USB port on the bottom of the microphone, and one end of the cable corresponds with the USB port on your computer.
  • Page 11 3. Click on the Input tab and then click on USB PnP Sound Device to select it as the default sound input device. 4. Click on the Output tab and then click on USB PnP Sound Device to select it as the default sound output device. From the Sound window, you can adjust the computer’s input and output volumes, adjust the stereo balance, and elect to show the volume in the menu bar.
  • Page 12: Gain Control

    Gain Control Use the continuously variable gain slider to adjust the UB-440’s input gain. To increase the gain, raise the gain slider. To decrease the gain, lower the gain slider. Higher gain is usually preferable when recording quiet subjects and lower gain is preferable for loud subjects, although your needs will depend upon your specifi...
  • Page 13: High-Pass Filter

    High-Pass Filter The high-pass fi lter helps prevent the UB-440 from picking up low-frequency noises that may interfere with your recording, like a rumble from an air conditioner. The high-pass fi lter is programmed to 80 Hz. To turn on the high-pass fi lter, slide the switch so it rests under the marking.
  • Page 14: Troubleshooting

    Troubleshooting Problem Solution The microphone Make sure the USB cable is plugged will not turn on. into the microphone and the computer’s USB port. There is no sound Make sure the headphones are coming from the plugged into the microphone’s headphones or headphone jack.
  • Page 15: Specifi Cations

    Specifi cations Transducer type: Electret condenser Sample Rate: 48 kHz Bit Rate: 16 Bit Frequency Response: 50 Hz to 18 kHz Signal-to-noise ratio: 60 dB (at 1 kHz) -46 dB ±4 dB (at 1 kHz 5.0 V Sensitivity: 680 Ω, 0 dB = 1 V/u bar) Power: DC 5.0 V Headphone out:...
  • Page 16: Warranty

    Warranty Senal provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of two (2) years from the original purchase date or thirty (30) days after replacement whichever occurs later.
