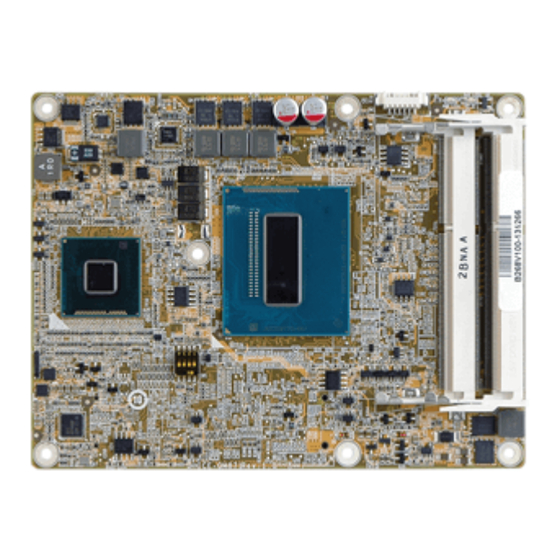

IEI Technology ICE-QM871 Quick Installation Manual

COM Express Basic Type 6 Module, Intel® Haswell mobile COM Express Basic Type 6 Module, Intel® Haswell mobile
BGA Processor,VGA, LVDS, DisplayPort, HDMI, GbE, SATAIII, BGA Processor,VGA, LVDS, DisplayPort, HDMI, GbE, SATAIII,
USB 3.0 and HD Audio, RoHS
Quick Installation Guide Quick Installation Guide

Package Contents

ICE- QM871 package includes the following items:
1 x ICE-QM871 single board computer
1 x Heat Spreader
1 x Cooler
1 x Driver CD
1 x Utility CD
1 x QIG (Quick Installation Guide)
WARNING!
Never run the embedded module without the heat sink.
plate shipped with the ICE-QM871 acts as a thermal interface between the
module and the heat sink. The heat sink must be installed on the module and the heat sink. The heat sink must be installed on the
heatspreader plate to maintain proper operating temperatures. Make sure to
maintain the heatspreader plate temperature under 60°C in operation.
ICE-QM871
Version 1.0
Jan, 22, 2014
