Installation instructions.

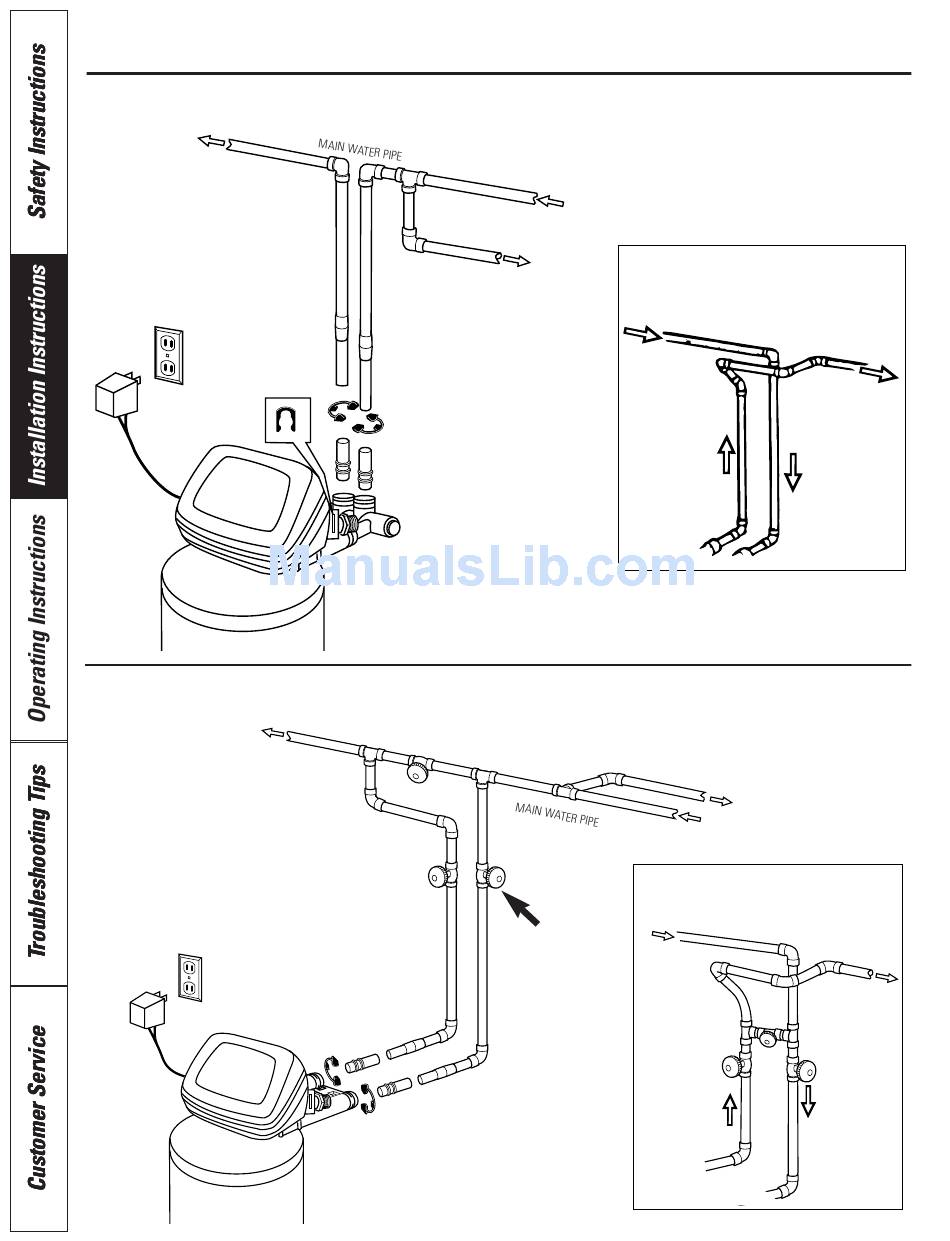

Typical Installation Illustration
Fig 1.
Soft water
120-volt outlet
24V transformer
Optional 3-Valve Bypass Installation Illustration
Soft water
Fig 2.
120-volt outlet
24V transformer
6
NOTE: See Drain Hose
Connections section.
Bypass valve
Outlet valve
Inlet valve
3-valve bypass system
For soft water service:
• Open the inlet and outlet
valves
• Close the bypass valve
For bypass hard water:
• Close the inlet and outlet
valves
• Open the bypass valve
Hard water
Hard water to
outside faucets
Use if water supply flows from the left.
Include single or 3-valve bypass.
Hard water
From softener outlet
Hard water
Use if water supply flows from the left. Include single
Hard water
From softener outlet
CROSS-OVER
Soft water
To softener inlet
Hard water to outside faucets
CROSS-OVER
or 3-valve bypass.
Soft water
To softener inlet
