Summary of Contents for Lionel Transfer Station

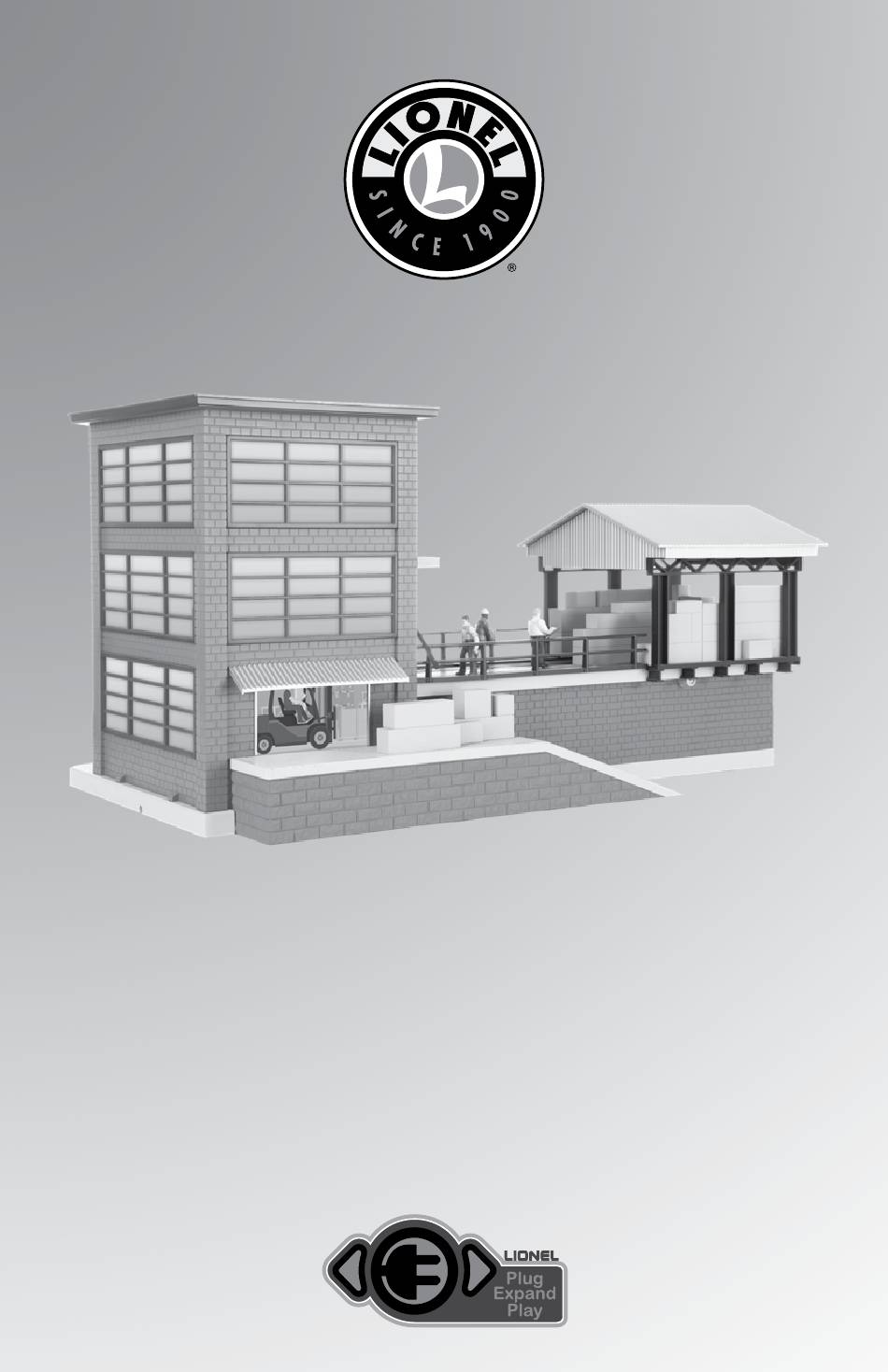

- Page 1 20229210250 7/22 Lionel Lionel Transfer Station Transfer Station Owner’s Manual Owner’s Manual...
-
Page 2: Table Of Contents
The following Lionel marks are used throughout this Owner’ s Manual and are protected under law. All rights reserved. Lionel ® , FasTrack ® , LEGACY ® , LEGACY ® Control System, Lockon ® , TMCC ® , CAB-1 ® Remote Controller, Plug-Expand-... -
Page 3: Plug-Expand-Play Accessory Basics
Plug-Expand-Play Accessory basics Setting up your accessory oute your Plug-Expand-Play cable through the slot on the side of the building. Failing to do so could cause the figure mechanism to get caught around the cord and ultimately damage your accessory. Fit cord through the notch on the underside of the... -
Page 4: Wiring Your Accessory To A Plug-Expand-Play Lock-On
Plug-Expand-Play Accessory basics Wiring your accessory to a Plug-Expand-Play lock-on our accessory comes with a remote-control switch box. This allows you to activate your accesso- ries action and control the lighting. Connect your accessory to the remote-control box by plugging in the 3-pin male connector into the 3-pin female slot on the back of the remote-control box. -
Page 5: Connecting Your Accessory To A Plug-Expand-Play Activator Track Pack
Plug-Expand-Play Accessory basics Connecting your accessory to a Plug-Expand-Play activator track pack ou can also use a Plug-Expand-Play Accessory Activator Track Pack (6-81317) with your control tower. This pack isolates your tower by using an insulated outside rail (see the manual for the acti- vator pack for further instructions). -
Page 6: Additional Wiring Options
Additional wiring options Connecting your accessory to FasTrack ou also are able to connect your accessory to FasTrack using an 8" 3-pin female pigtail (available separately, 6-82038). Plug in the 3-pin male connector into the 3-pin female slot on the back of the remote control box. -
Page 7: Maintaining And Servicing Your Accessory
LED that is expected to last for the life of the accessory. The LED is not user serviceable. If service is required, we recommend that you have your accessory serviced at a Lionel Factory Trained Authorized Service Station or Lionel Service. -
Page 8: Lionel Limited Warranty Policy & Service
Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
