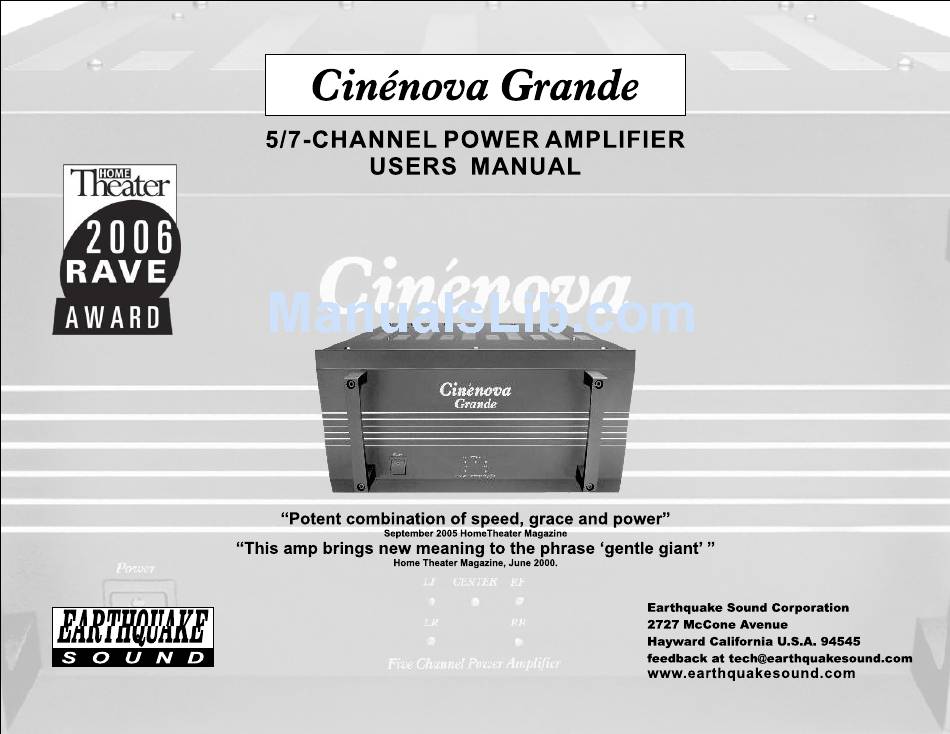

- Page 1 Rave Award Winner for BEST AMPLIFIER OVER $3,000.00 Sound That Will Move You.
-
Page 2: Table Of Contents
T.O.C. Earthquake Sound Table Of Contents Table of Contents ........ -
Page 3: Warranty Information
& returned to Earthquake with a copy of the sales invoice. • First year: Earthquake pays for labor, parts, and ground freight (only in US Warranty card is located on the last page of this manual. -
Page 4: About The Cinénova Grande
The "Alpha One" blocks are individually removable using the more power. Audiophiles agree that an audio amplifier is the heart of Earthquake patented "EZXS" system, without the need to dismantle the any system; It must be able to meet the demands of the softest musical rest of the amplifier. -
Page 5: Important Safety Instructions
Cinénova Grande Power Amplifiers Safety First Important Safety Instructions 1) Read these instructions in their entirety. 10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the pint 2) Store this manual and packaging in a safe place. where they exit from the apparatus. -
Page 6: Safety First
© 2008 Earthquake Sound Corporation, All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound, Corp. The information is subject to change without notice. Earthquake Sound, Corp. assumes no responsibility for errors that may appear within this document. -
Page 7: Unpacking & Location
Cinénova Grande Power Amplifiers Unpacking & Location To Unpack 1) OPENING THE CRATE 2) REMOVING THE AMPLIFIER Cinénova Grande amplifiers are extremely heavy (100 Lbs +). They are To open the crate, T h i s r e q u i r e s t w o shipped in a wooden crates for maximum protection and on occasion, the release the two latches people: one to lift the... -
Page 8: Pre-Setup
Pre-setup Earthquake Sound Getting Started 1) INPUT SELECTION 2) X-OVER MODE SELECTION Confirm the voltage setting of the amplifier. It must match the voltage in your Set the input control to The Cinénova Grande home. The amp is set by factory to either 120V or 240V. Check above the either RCA or XLR. -
Page 9: Front Panel Overview
Cinénova Grande Power Amplifiers Panel Overview Front Panel 1. Master Power Switch: Turns the current to the amplifier ON or OFF manually. When turning on the amplifier via a 12VDC source the switch must be in Cinénova the OFF position. Grande Additionally when adding or removing 12VDC connections or any other connections the main power circuit breaker needs to... -
Page 10: Rear Panel Overview
Panel Overview Earthquake Sound Rear Panel 1. Replaceable Fuses: Each mono block is equipped with two (10 Amperes) fuses FUSE FUSE FUSE FUSE FUSE FUSE FUSE designed to protect and monitor the voltage of operating rails (+/-). If a fuse burns out you may replace it with the following fuse... -
Page 11: Special Features
For ease of service, each block can be individually Built-in line conditioner removed and serviced without the need to ship the entire amplifier. 5-channel and 7-channel configurations EZXS® is a trademark of Earthquake Sound Corporation. Soft Start Circuitry Multiple Heat Sinks: Fully balanced inputs... -
Page 12: Adjusting The Filters
Adjusting The Filters Earthquake Sound Filter Settings REFER TO THE FOLLOWING ILLUSTRATIONS FOR FILTER SETTING: Each channel - monaural block - of the Cinénova Grande amplifiers comes equipped with a fully buffered variable filter Knob In 9 O'clock Knob In 12 O'clock (range: 20 Hz to 5000 Hz). -
Page 13: Specifications
Cinénova Grande Power Amplifiers Specifications MODEL Cinénova Grande Number of Channels 5-channels / 7-channels (8-ohm load), all channels driven: 360 Watts Power Rating Per Channel (4-ohm load), all channels driven: 610 Watts (2-ohm load), all channels driven: 810 Watts Output Load Impedance Safe with all loads from 2-Ohm to 16-Ohm - RCA: 28-kOhms Input Impedance... -
Page 14: Troubleshooting
If the Switch is on. amplifier still does not power up, please call Earthquake to consult with a technician. c) Check the Input Selector switch and make sure that it is in the correct position. - Page 15 Installer’s notes...
- Page 16 Sound That Will Move You. Earthquake Sound reserves the right to amend details of the specifications without notice. Copyright © Earthquake Sound Corporation Earthquake Sound Corporation | 2727 McCone Avenue Hayward, CA 94545 | Phone: 510-732-1000 Fax: 510-732-1095...
