- Page 1 Cinénova 12 12 CHANNEL MULTI-ZONE AMPLIFIER User Manual Earthquake Sound Corp. (510) 732-1000 | U.S. Toll Free: (800) 576-7944 | www.earthquakesound.com...
-
Page 2: Table Of Contents
©2024 Earthquake Sound Corporation. All rights reserved. loudness level. Earthquake Sound Corp. does not as- This document should not be construed as a commitment on the part of Earthquake sume liability for damages resulting from the direct use Sound Corp. -
Page 3: Five (5) Year Limited Warranty
RMA number (Return Material Authorization). Items shipped without a • First year: Earthquake pays for labor, parts, and ground freight (only in US mainland, valid RMA number will be refused. Make sure you provide us with your complete/cor- not including Alaska and Hawaii) (shipping to us is not covered). -
Page 4: Important Safety Instructions
Important Safety Instructions • Read these instructions in their entirety. The following symbols are used in this document: • Store this manual and packaging in a safe place. Appears on the component to indicate the presence of uninsulated, • Heed all warnings. dangerous voltage inside the enclosure –... -

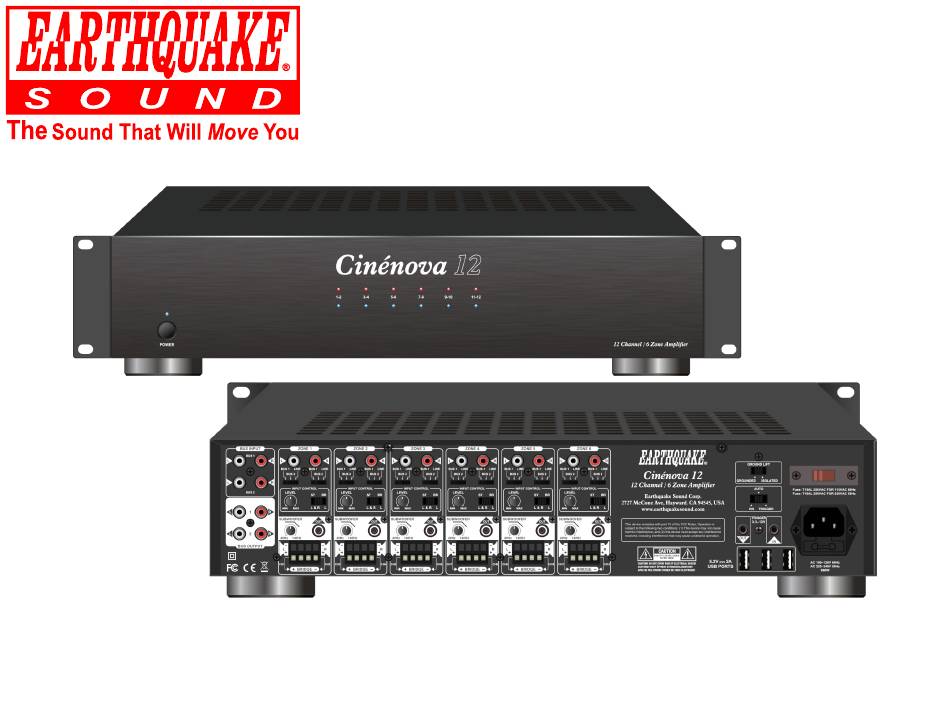

Page 5: Front & Rear Panel Overview
Introduction Engineered by audiophiles for audiophiles, the Earthquake Cinénova 12 The sleek and modern design of the Cinénova 12 amplifier makes it an amplifier is a game-changing product that boasts twelve high-perfor- attractive addition to any home theater setup. Its user-friendly interface mance power channels and six subwoofer RCA outputs, complete with ensures seamless navigation and control. - Page 6 Cinénova 12 Front & Rear Overview 1. Master Power Button & LED Indicator position the switch to BUS 1 (for the source connected to the BUS 1 input), BUS 2 (for the source connected to the BUS 2 input), or LINE IN (for the source The power button switch is located on the amplifier's front panel and is used connected to the channel's LINE IN).
- Page 7 Cinénova 12 Front & Rear Overview Cont. 11. Switchable 110/220V Input Voltage Auto Mode The Cinénova 12 amplifier works in both 110V and 220V environments. The Cinénova 12 amplifier features an auto mode that detects audio signals Before powering on the amplifier, ensure this switch is in the correct and switches on automatically.
-
Page 8: Led Indicators & Clipping Circuitry
LED Indicators and Anti-Clipping Circuitry: What You Need to Know Front Panel LED Reference Chart Note: If a channel LED is RED, you have a fault and need to fix the issue. LED COLOR DESCRIPTION Once settled, the indicator should turn back to BLUE if the zone is being POWER BLUE Amplifier is on... -
Page 9: Getting Started
Getting Started With The Cinénova 12 Before you begin, confirm the voltage setting of the amplifier. It must match the voltage in your home. The amp is set by factory to either 110V or 220V. Check above the circuit breaker for this information. 1) INPUT SELECTION 2) SPEAKER CONNECTIONS 3) 12V TRIGGER INPUT... - Page 10 General 6 Zone Wiring Sample NOTE: Ensure that the STEREO / BRIDGE switch is in Stereo Wiring: 21V AC (4-Ohm Minimum - 110W RMS / 200W MAX) the correct position prior to operation. This must Mono Wiring: 42V AC (8-Ohm minimum - 220W RMS / 400W MAX) be done for all channels that are being driven.
-
Page 11: Wiring Configurations
Wiring Configurations Standard 2-Channel Stereo Wiring Powered Subwoofer Wiring Source Output Source Output MiniMe DSP Sub ECS6.5 ECS6.5 1. Attach your source to the RCA LINE IN or BUS INPUT 1. Attach your source to the RCA LINE IN or BUS INPUT 2. - Page 12 Wiring Configurations Cont. Passive Subwoofer Wiring - Bridged Output 1. Attach your source to the LINE IN or BUS IN. 2. Set the input switch to the desired source. 3. Connect a single RCA wire from the SUB OUT of one zone to the next zone's LINE IN LEFT channel.
- Page 13 Wiring Configurations Cont. Dual Passive Subwoofer Wiring - Bridged Output Source Output 1. Attach your source to the LINE IN or BUS IN. 2. Set the input switch to the desired source. 3. Connect a single RCA wire from the SUB OUT of one zone to the next zone's LINE IN LEFT and Source Output RIGHT channels.
- Page 14 Wiring Configurations Cont. Outputting A Mono Signal Using BUS IN & OUT Source Output 1. Use an RCA Y cable to combine the left and right audio signals from your source. Then, connect it to the BUS 1 LEFT input. 2.
- Page 15 Connecting Multiple Amplifiers 24 Channel / 12 Zone Setup If connecting multiple Cinénova 12 amplifiers, run an RCA cable from one of the BUS OUTPUTS of AMPLIFIER 1 to a BUS INPUT of amplifier 2. This will supply the source signal to the additional amplifier.
-
Page 16: Specifications & Dimensions
Cinénova 12 Specifications Number of Channels: 12 Channels / 6 Stereo Zones Power Rating Per Channel: 120W RMS x 12 into 4 ohms 250W RMS x 6 into 8 ohms (Bridged) Frequency Response: 20Hz–20kHz Total Harmonic Distortion - THD: <0.003% @ 1kHz Input Impedance: 20 kOhm 1.10″... -
Page 17: Troubleshooting
The rest of the hum you hear is normal and Contact Earthquake Sound Technical Service related to the fact that the RCA’s are open ended. Phone: 1-510-732-1000 Email: tech@earthquakesound.com... -
Page 18: For Your Records
For Your Records Date of Purchase: ________________________ Authorized Dealer/Installer Info: _____________________________________ Name: Address: _____________________________________ _____________________________________ Phone: _____________________________________ Serial Number: specifications are subject to change without notice... -
Page 19: Notes
Notes 50 5Å34X This device complies with part15 of the FCC Rules.O pera tion is subject to the following twoconditions: (1) T his device maynot cause harmful interference,a nd (2) this dev ice must accept anyinterfe rence received, including interference thatmay cause undesired opera tion. www.earthquakesound.com... - Page 20 Earthquake Sound reserves the right to amend details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation 2727 McCone Avenue, Hayward CA, 94545 Phone: (510) 732-1000 U.S. Toll Free: (800) 579-7944 Fax: (510) 732-1095...
